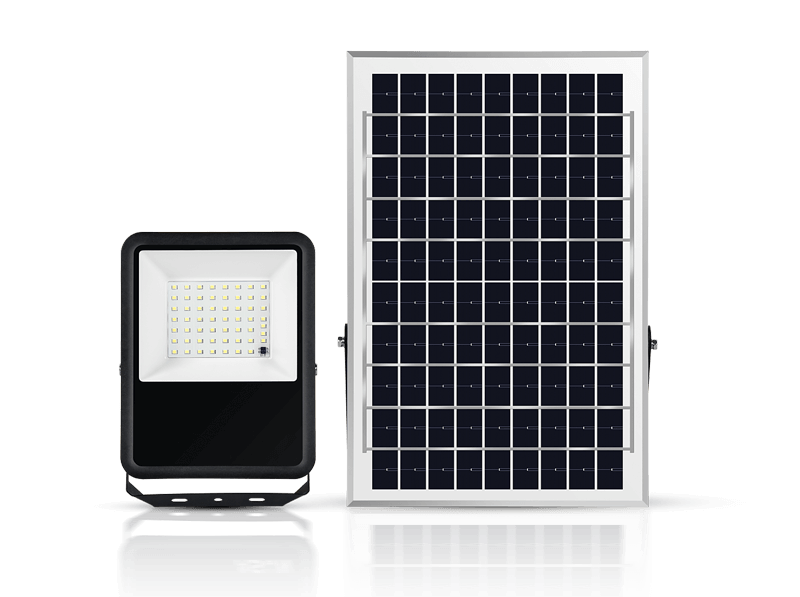

太阳能投光灯系列-S01-B005-正面

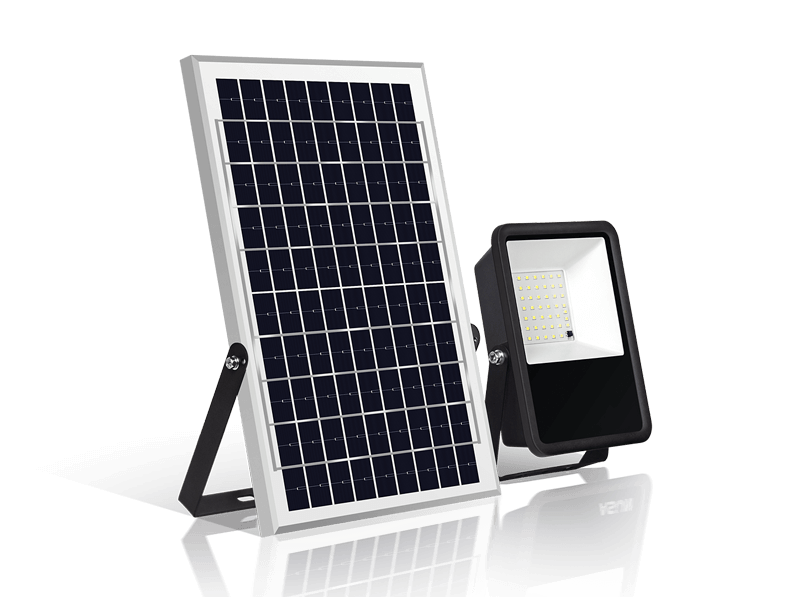

太阳能投光灯系列-S01-B005-右

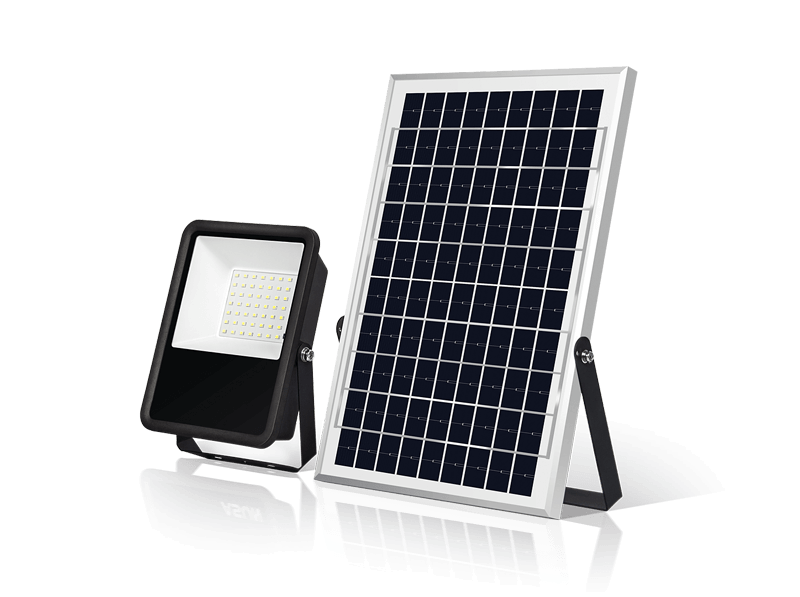

太阳能投光灯系列-S01-B005-左
S01-B005
太阳能投光灯系列-S01-B005-正面
太阳能投光灯系列-S01-B005-右
太阳能投光灯系列-S01-B005-左

S01-B005

The appearance is simple with smooth streamline, and adopts tempered glass light-emitting surface to prevent water and dust accumulation affecting the light effect.

Compact design, good heat dissipation performance,IP65, easy installation, with optional extension cord, suitable for all kinds of demanding environment;

The appearance is simple with smooth streamline, and adopts tempered glass light-emitting surface to prevent water and dust accumulation affecting the light effect;

The lamp body is made of ADC12 die-cast aluminum with anti-corrosion treatment on the surface, suitable for various applications;

The high-performance monocrystalline silicon photovoltaic panels, with a charging efficiency of 22% use very compact packaging;

Using high-efficiency SMD LED chip, the light efficacy is as high as 130lm/W;

Using brand-new A-class car-grade lithium batteries (Recycled batteries are refused), the lighting lifespan will be truly reach 10 years;

The lighting bracket adopts a beveled edge design and can be installed directly by electric tools.

All screws are made of 304 stainless steel screws to ensure durability;

IP67 quick-plug waterproof joints;

To avoid loss during charging, standard cable length is 1 m,4m extension cable is optional.

Quotation
Material
ADC12 die cast aluminum housing,tempered glass surface
Battery
A class car grade lithium batteries
Solar Panel
High performance monocrystalline silicon solar panels
Light Source
High efficiency SMD LED chips
Protection
IP66,IK06.IP67,IP67 quick plug waterproof joints
Specification

Models

Power

Battery

Size(mm)

Weight(KG)

Lumen Output

(lm)

Efficacy

(lm/W)

CRI

(Ra)

Beam Angle

Installation Height

(m)

Illuminated Area

S01-B003

Lighting: 3W

PV Panel: 10W/6V

3.2V,6Ah

Fixture: 189*155*48

PV Panel: 350*235*17

Fixture: 0.63

PV Panel: 0.6

450

150

≥80

100°±10

3-4

20

S01-B005

Lighting: 5W

PV Panel: 10W/6V

3.2V,10Ah

Fixture: 189*155*48

PV Panel: 350*235*17

Fixture: 0.77

PV Panel: 0.6

700

140

≥80

100°±10

4-5

50

S01-B009

Lighting: 9W

PV Panel: 18W/6V

3.2V,15Ah

Fixture: 270*217*48

PV Panel: 350*350*17

Fixture: 1.33

PV Panel: 1.09

1200

130

≥80

100°±10

5-6

100

S01-B012

Lighting: 12W

PV Panel: 25W/6V

3.2V,20Ah

Fixture: 270*217*48

PV Panel: 350*450*17

Fixture: 1.48

PV Panel: 1.18

1500

125

≥80

100°±10

6-7

200

S01-B015

Lighting: 15W

PV Panel: 25W/6V

3.2V,25Ah

Fixture: 270*217*48

PV Panel: 350*450*17

Fixture: 1.63

PV Panel: 1.18

1875

125

≥80

100°±10

7-8

300


Product Features

Input Voltage

DC3.2V

Charging Voltage

DC6V

Housing material /Color

AC12 Die-cast aluminum + tempered glass   lens/black

Surface Treatment

fluorocarbon spraying

Installation Bracket/Material

Disassembly-free bevel   bracket/galvanized sheet with black

Installation Method

Fixed on surface

Working Environment Temperature/Humidity

-20℃ to 45℃/≤85%RH

Storage Temperature/Humidity

0℃to 50℃/≤65%RH

Luminaire Surface Temperature

<45℃ (under 25℃)

Isolation Grade

Class Ⅲ

Lifespan

under 25℃>30000H

IP Grade

IP66

Applications

Sports fields, courtyards, parks,   country roads, etc.

IK Grade

IK06

Male and Bus Bar Specifications

60227(52 RVV) 2*0.5² 1m

Wiring

60227(52 RVV) 2*0.5² with pin and box 4m



Control Method

Solar light control + timing control + remote control, the light control timing table is as follows:

Period 1

Period 2

Period 3

Period 4

Period 5

40% 0.5H

100% 1.5H

60% 2H

40% 2H

15% until dawn

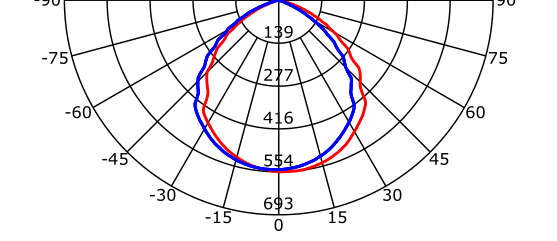

Light Distribution
BEAM ANGLE (50%%)C0-180,C90-270: 103.4 DEG,102.2 DEG
BEAM ANGLE (50%%)C0-180,C90-270: 103.4 DEG,102.2 DEG
C0-180
C90-270
Dimensions
S01-B003 B005尺寸图
×
