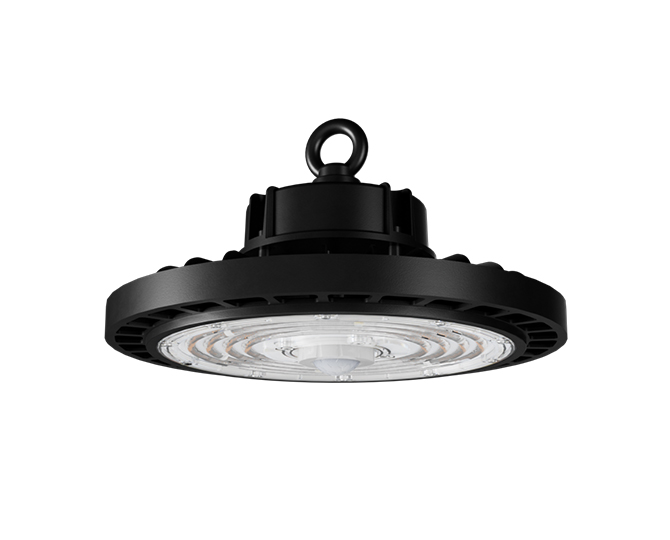

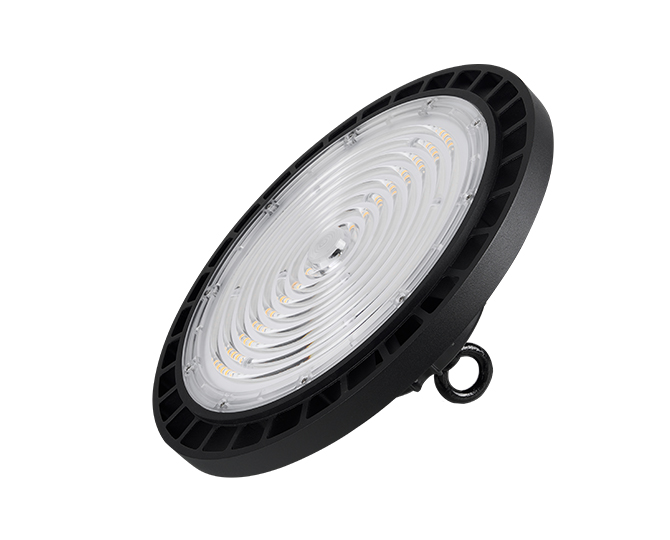

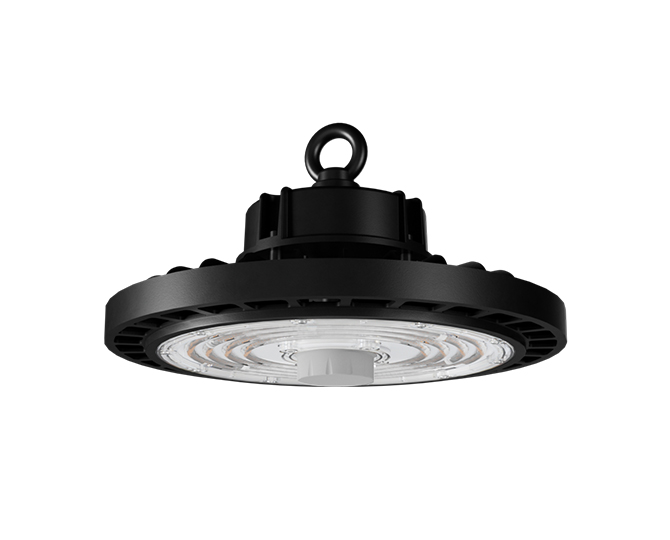

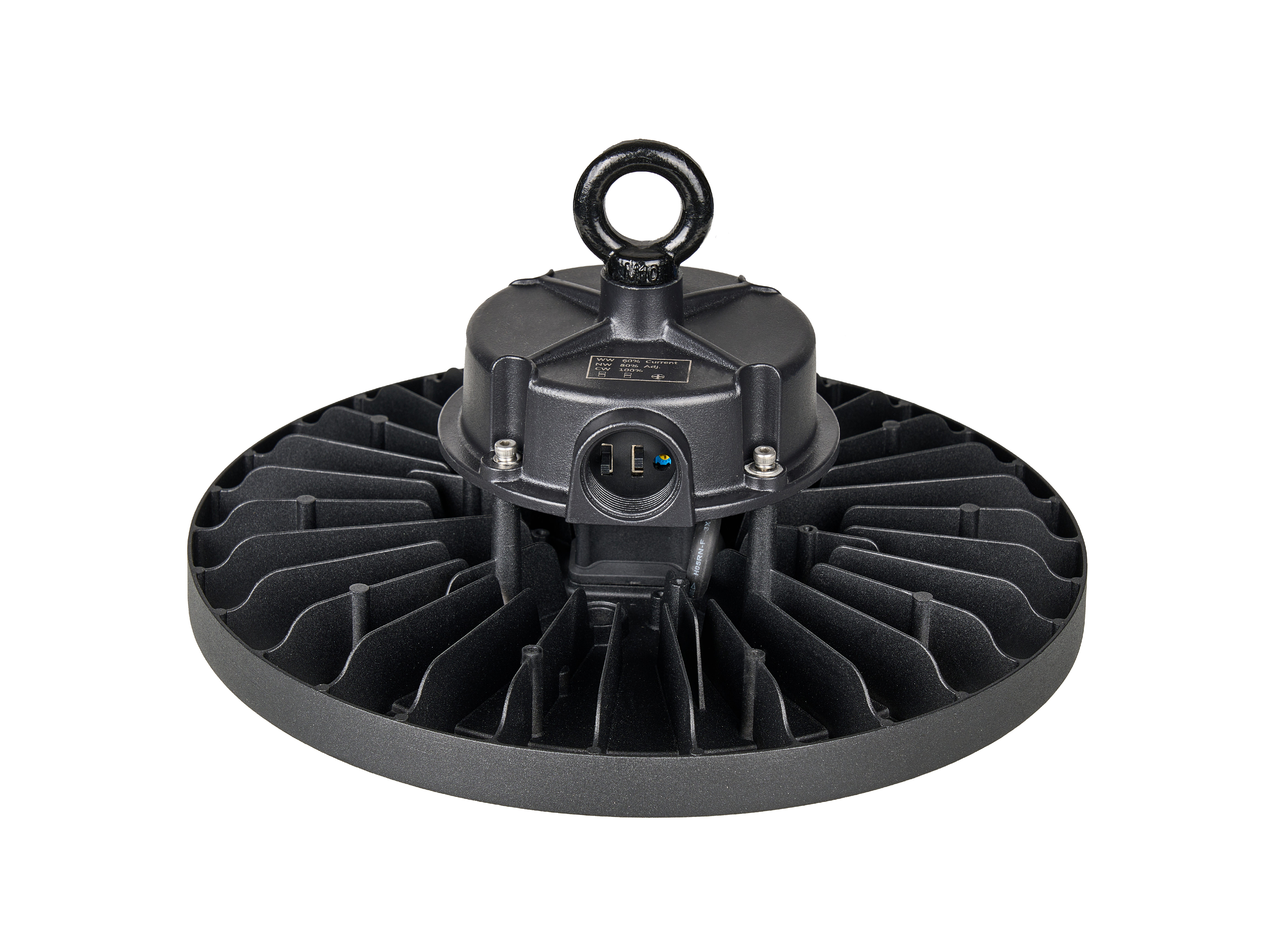

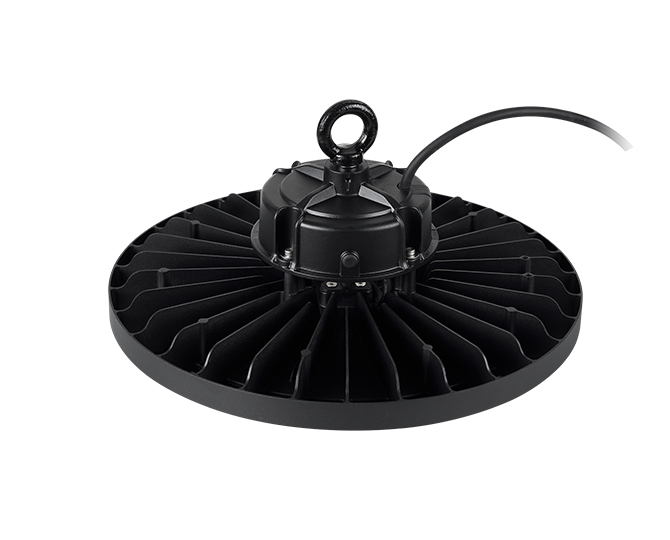

Leopard2 (U02) Series Highbay
The product has a light and thin appearance, high brightness, good heat dissipation, quick installation, and wide application range;

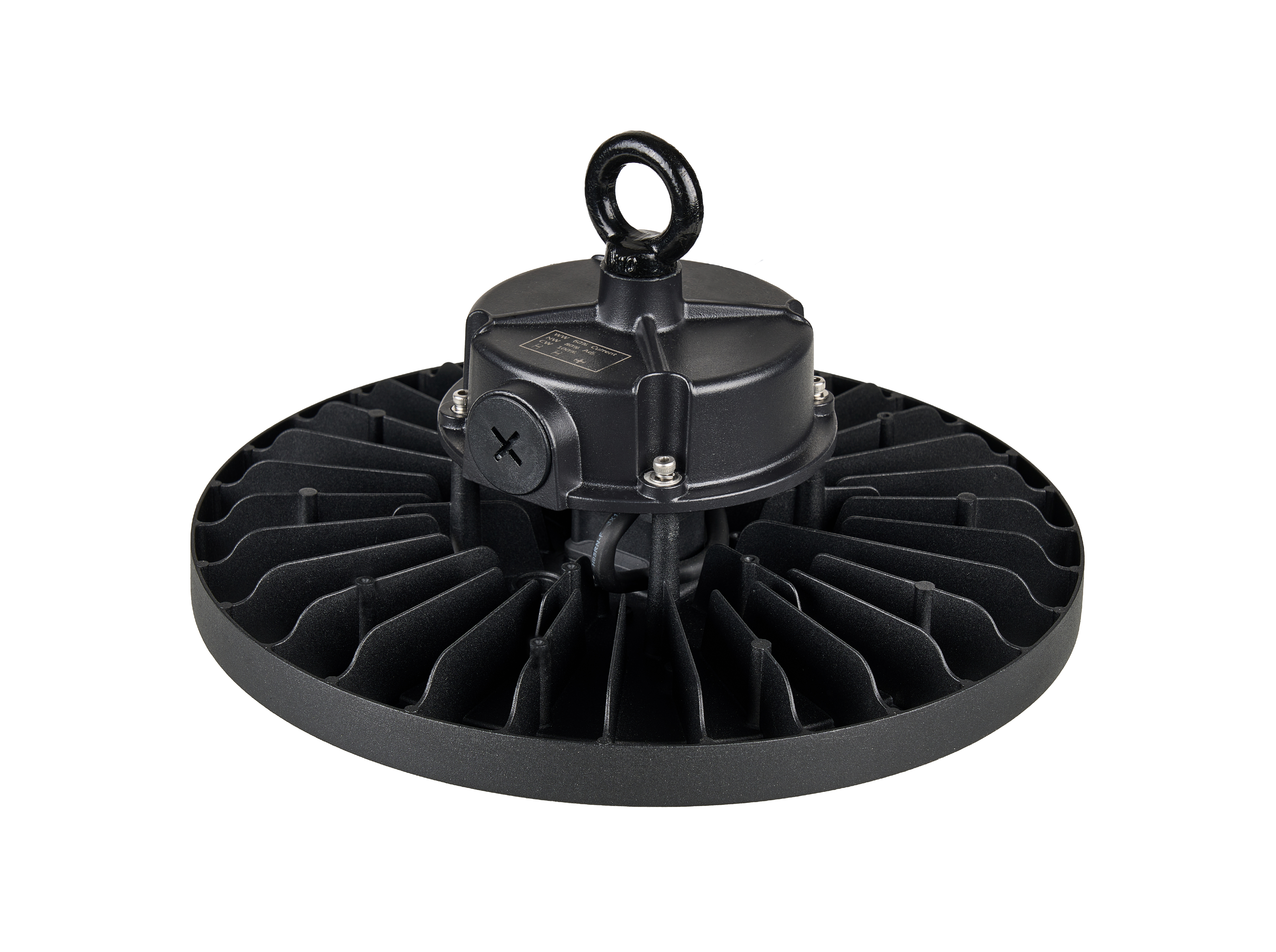

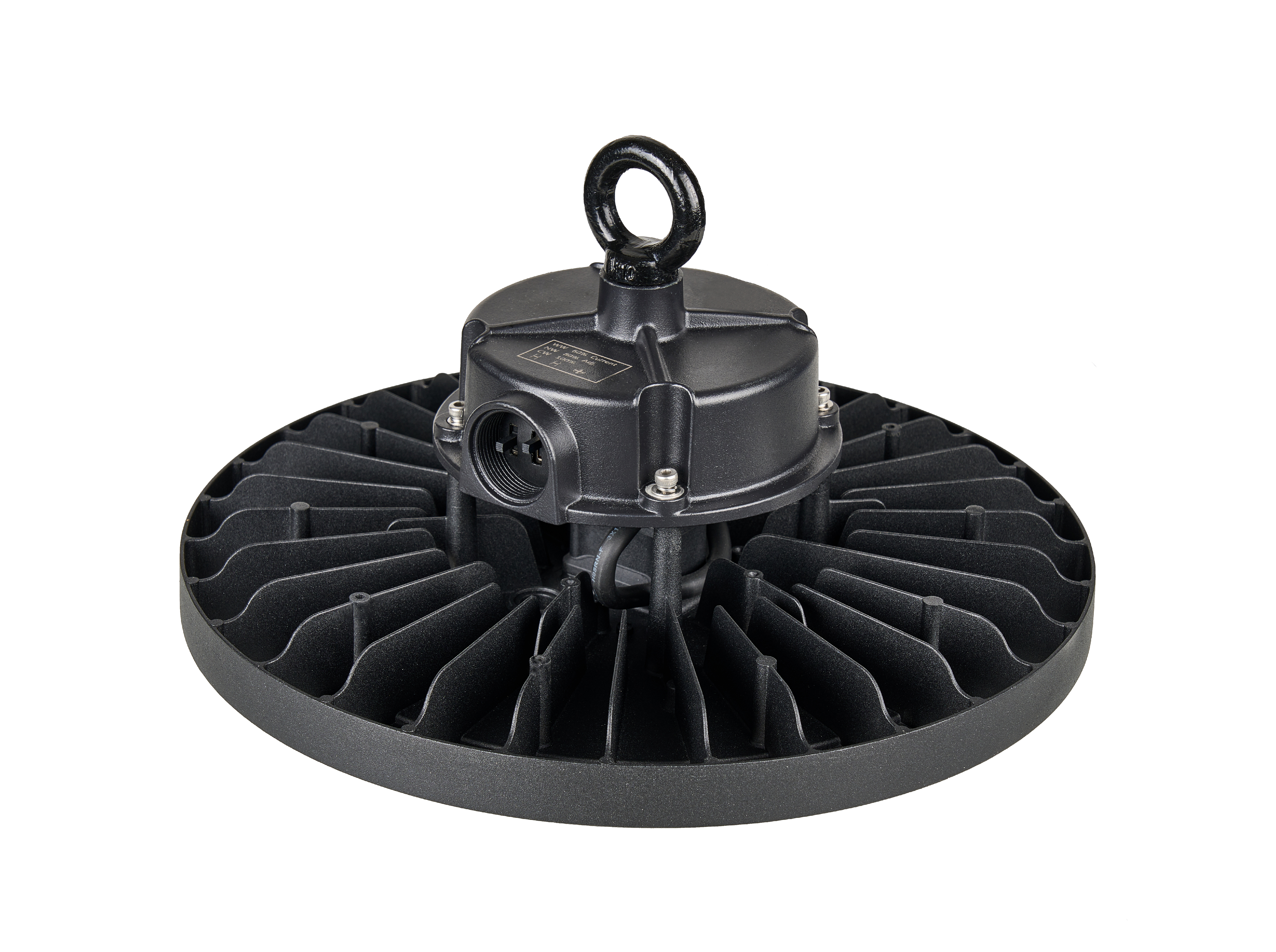

Integrated die-cast aluminum, gill plate heat dissipation design, lightweight lamp body, with better heat dissipation effect;

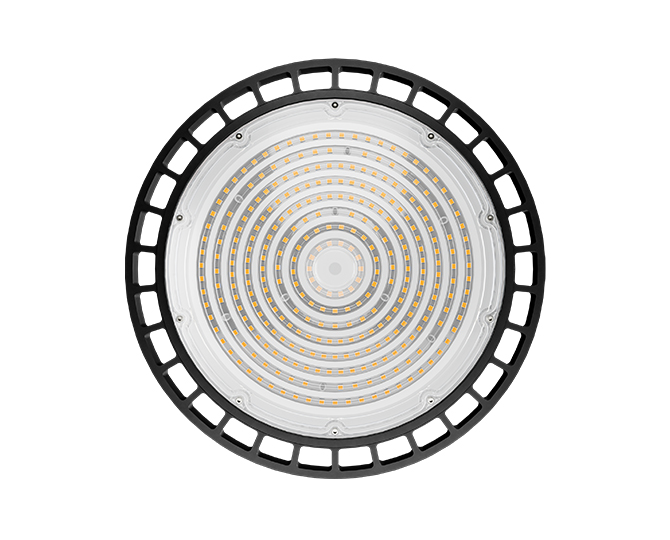

Redundant light source design, multiple high-power LED lamp chips, with high thermal conductivity, low light attenuation, pure light color, and no ghosting;
Switch control, MW microwave induction, PIR infrared induction, multiple control methods, high efficiency and energy saving;
Integrated circular PC optical lens, with high light transmission efficiency and uniform light output;
Two installation methods, hanging ring and U-shaped bracket are available, suitable for a variety of installation scenarios.
Optical Parameters | ||||||

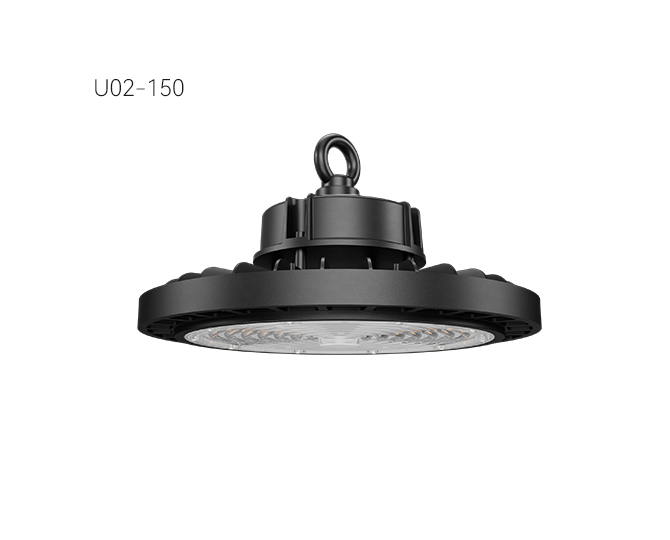

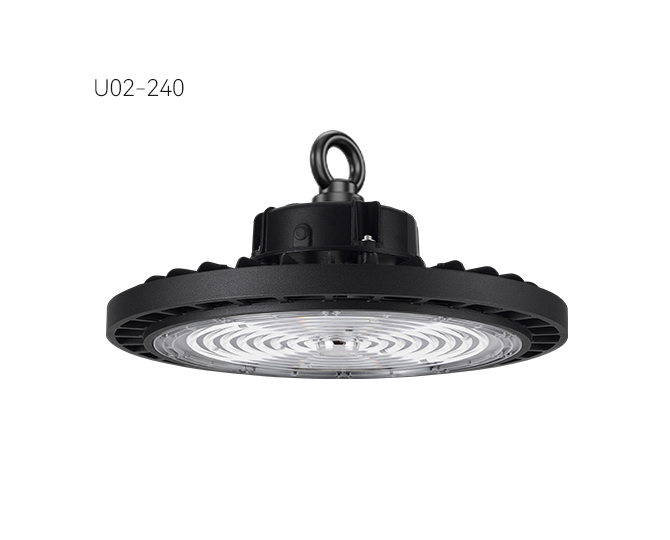

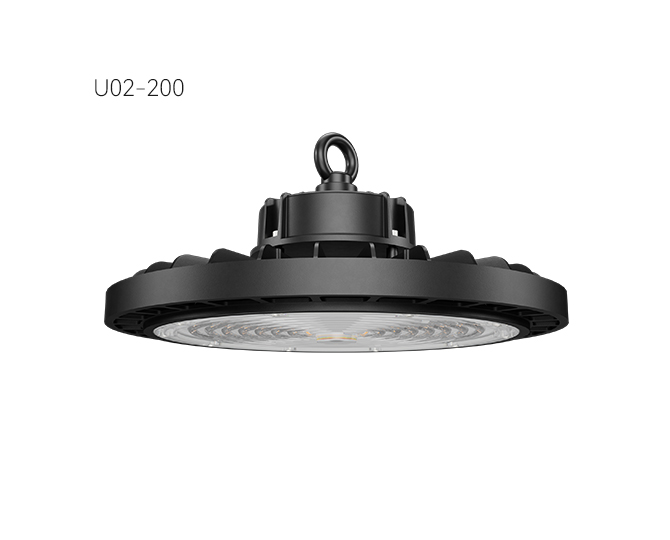

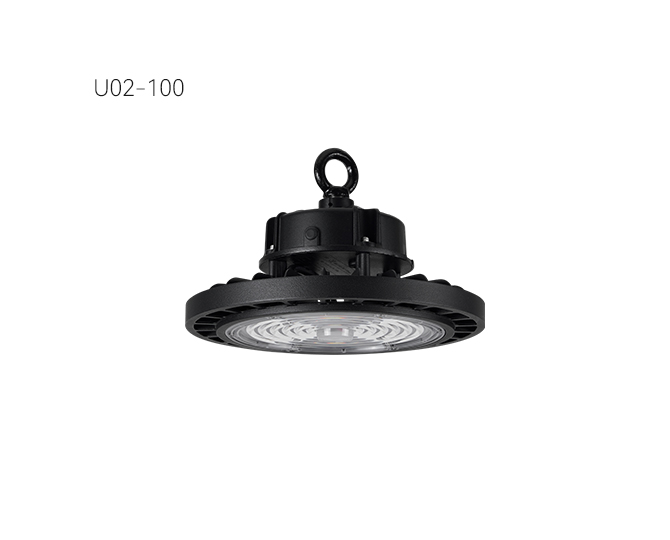

Model | U02-100 | U02-150 | U02-200 | U02-240 | ||
Power | Standard | 100W | 150W | 200W | 240W | |
Tunable | 60W-80W-100W | 80W-120W-150W | 120W-150W-200W | 150W-200W-240W | ||
LED Chip | SMD 2835 | |||||
LED Chip Quantity | 168LEDs | 252LEDs | 336LEDs | 420LEDs | ||
Luminous Flux | 3000K | 13,200lm | 18,600 lm | 26,000 lm | 29,700 lm | |
4000K | 14,000lm | 20,000 lm | 28,000 lm | 32,000 lm | ||
5700K | 13,500 lm | 19,400 lm | 27,100 lm | 31,000 lm | ||
6500K | 14,700 lm | 21,000 lm | 29,400 lm | 33,600 lm | ||
Luminous Efficiency | 150±10 lm/W | |||||
CCT | Standard | 3000K/4000K/5700K/6500K | ||||
Tunable | 3000K-4000K-6500K | |||||
CRI | Ra≥80 | |||||
SDCM | SDCM≤5 | |||||
Beam Angle | 60° 90° 120° | |||||
Electrical and Mechanical Performance | ||||||
Input Voltage | AC100~277V 50/60Hz | |||||
Rated Current | 0.45A | 0.68A | 0.94A | 1.09A | ||
Power Factor | ≥0.92 | |||||
THD | ＜20% | |||||
Electrical Protection Level | Class Ⅰ | |||||
Surge Protection | L-N 6KV L/N-PE 6KV | |||||
Control Method | On/Off , 0-10V or MW/PIR sensing | |||||
Shell Material | Housing: die-cast aluminum Light-emitting surface: PC | |||||
Surface Treatment | Surface spray / black | |||||
Cable | 3x0.75mm² rubber thread | |||||
Size（LxWxH） | Ø250×162 | Ø290×162 | Ø330×162 | Ø330×162 | ||
Weight | 1.6kg | 1.8kg | 2.2kg | 2.3kg | ||
Waterproof | Structure waterproof | |||||
Protection Level | IP65, IK08 | |||||
Installation | Suspended installation | |||||
Optional Accessories | Anti-glare reflector, U-shaped bracket, anti-fall rope | |||||
System Technical Specifications | ||||||

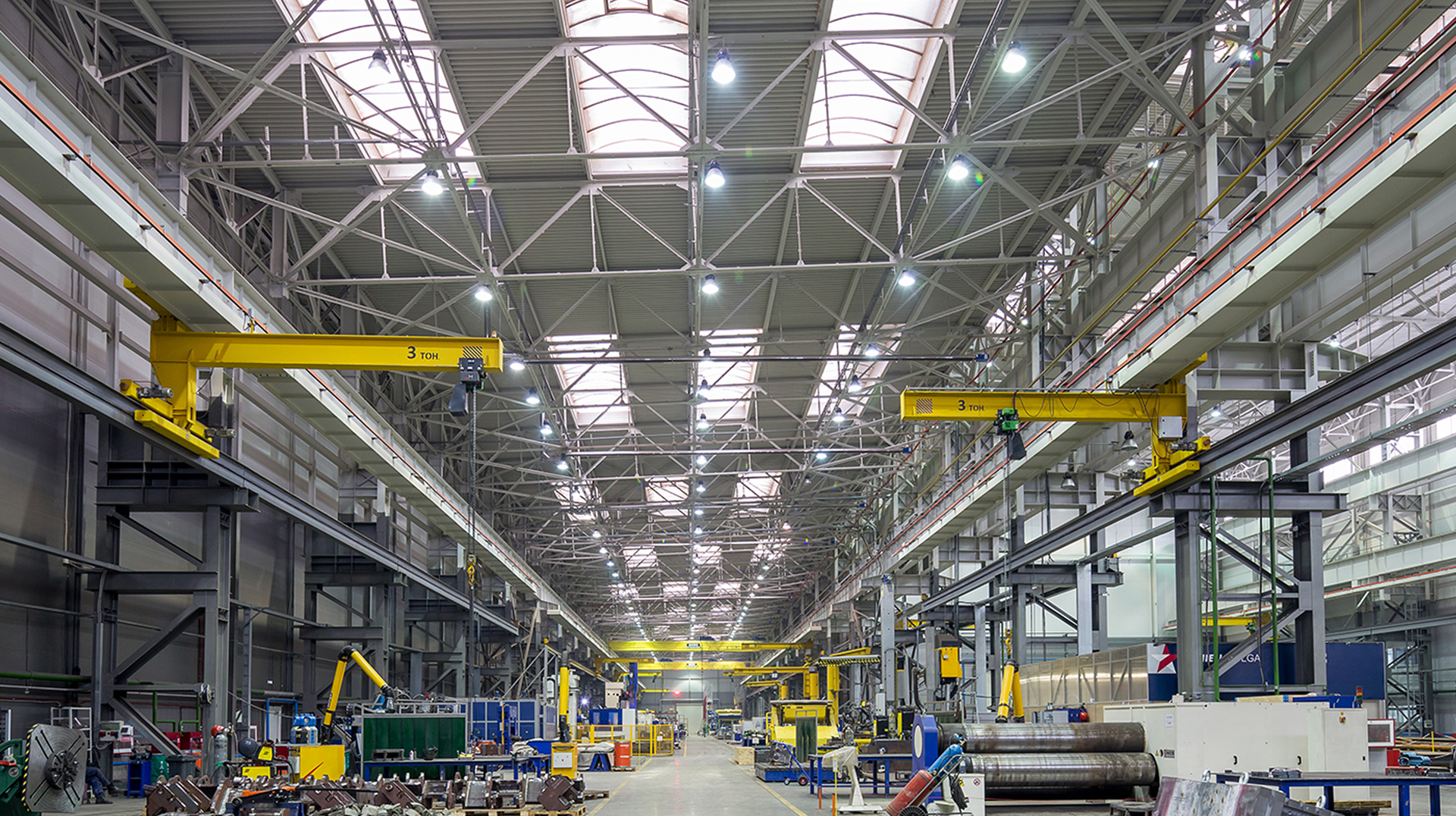

Applications | Indoor/Outdoor | |||||
Working Temperature | -30℃ ~ 45℃ | |||||
Storage Temperature | -25℃~ 50℃ | |||||
Lifespan | L70@25℃ 50000H | |||||
Standards | IEC 60598-1：2014 | |||||
Certifications | CCC, CE | |||||

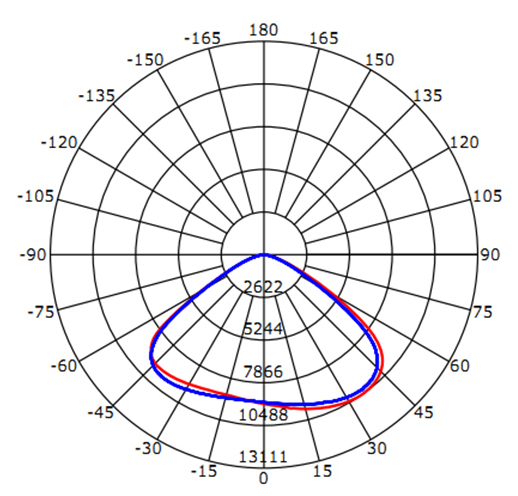

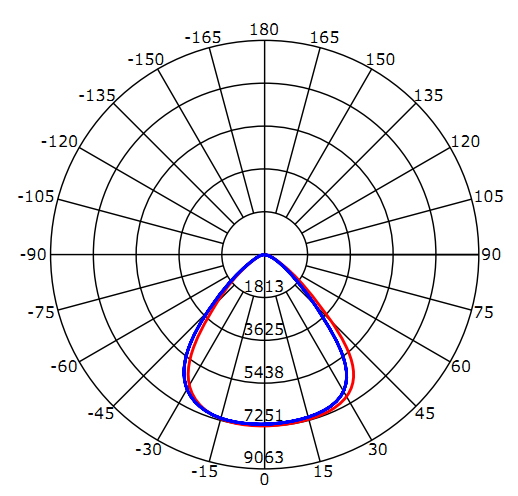

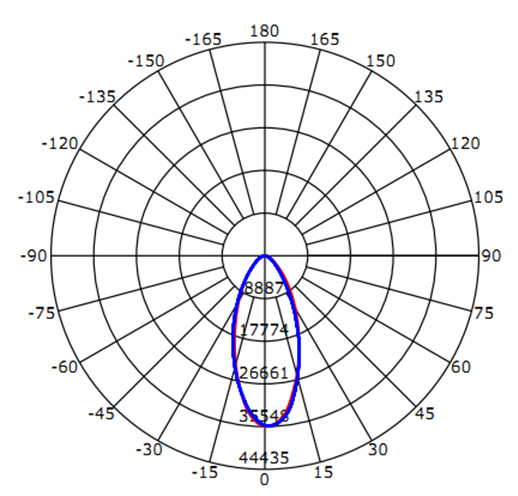

Model | CCT(K) | Beam Angle | Luminous Flux (lm) | Luminous Efficiency (lm/W) | Center Luminous Intensity (cd) | |
U02-100 | 4000K | 90° | 14000 | 140 | 7246 | |
U02-150 | 4000K | 90° | 20000 | 135 | 11552 | |
U02-200 | 4000K | 90° | 28000 | 135 | 15697 | |
U02-240 | 4000K | 90° | 32000 | 134 | 18630 | |

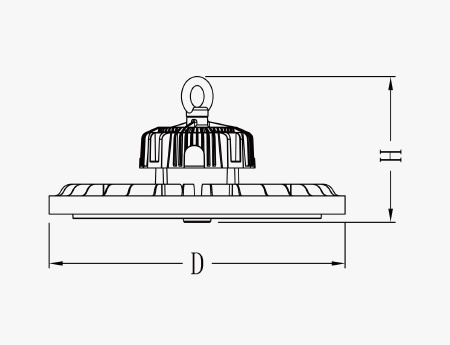

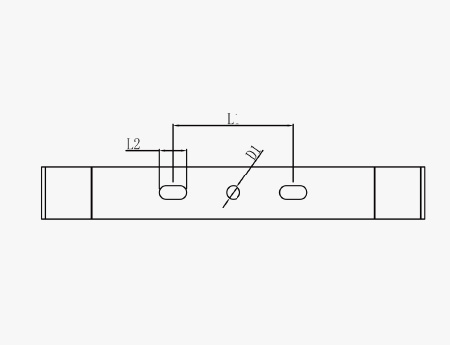

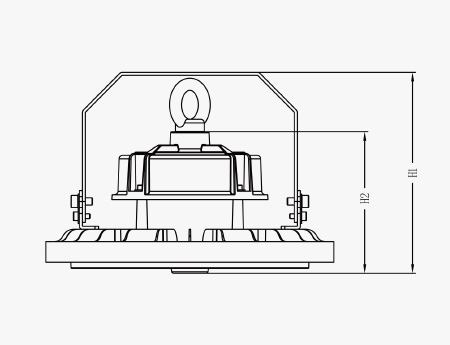

| Models | D | H | H1 | H2 | D1 | L1 | L2 |
| U02-100 | Ø250 | 162 | 167 | 118 | Ø9 | 80 | 18 |
| U02-150 | Ø290 | 162 | 167 | 118 | Ø9 | 80 | 18 |
| U02-200 | Ø330 | 162 | 167 | 118 | Ø9 | 80 | 18 |
| U02-240 | Ø330 | 162 | 167 | 118 | Ø9 | 80 | 18 |
