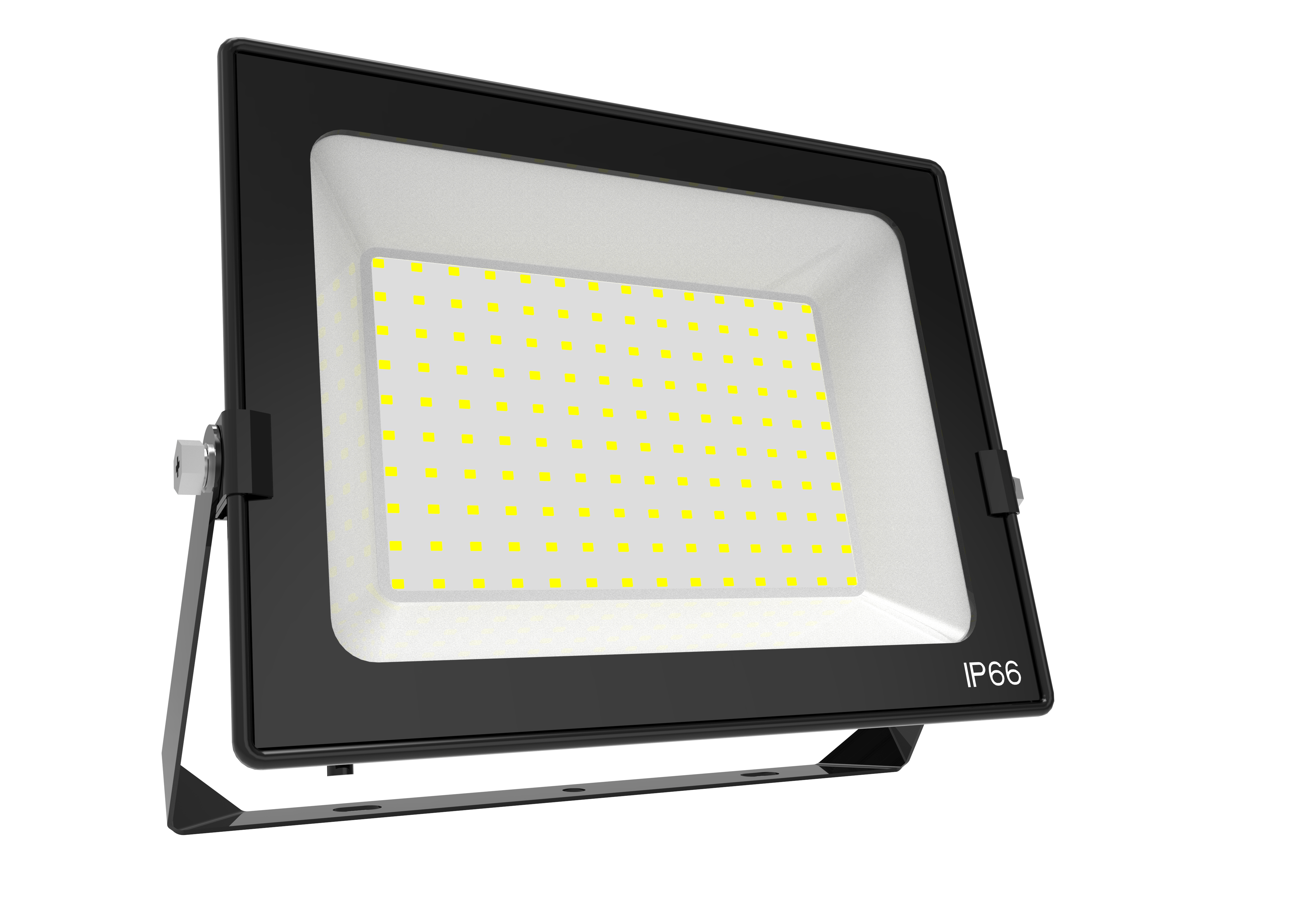

F04-100
This product features a compact structure and easy installation; it is equipped with high-performance optics and has no limitations on the usage environment.
The housing is made of aluminum,formed by a single-piece stamping process,with anti-corrosion coating on the surface and channel-based heat dissipation for excellent cooling performance(the 200W model features an aluminum die-cast housing).
The light-emitting surface is made of tempered glass,which features high light transmittance,resistance to UV aging,no deformation,and no yellowing.Optionally,a fabric-textured glass is available,providing soft light emission.
The product structure is waterproof,with a water resistance rating of IP66 and an impact protection rating of IK06.
An anti-siphon device is built in,ensuring safe and reliable anti-siphon performance.
The beveled edge bracket allows for easy installation using an electric screwdriver,making application and installation more convenient and flexible.
Mainly used for outdoor parking lots,courtyards,sports fields,squares,billboards,and other indoor and outdoor venues.
Optical Parameters | ||||||
Model | F04-30 | F04-50 | F04-100 | F04-150 | F04-200 | |
Power | 30W | 50W | 100W | 150W | 200W | |
LED Chip Type | SMD 2835 1W | |||||
Number of LED Chips | 28PCS | 56PCS | 112PCS | 168PCS | 224PCS | |
Luminous Efficacy | 5700K | ≥95 lm/W | ||||
4000K | ≥80 lm/W | |||||
3000K | ≥80 lm/W | |||||
Luminous Flux（5700K） | 2850lm | 4750lm | 9500lm | 14250lm | 19000lm | |
Color Temperature | 3000K,4000K ,5700K | |||||
Color Rendering Index(CRI) | Ra≥80 | |||||
Color Tolerance | SDCM≤5 | |||||
Optical Angle | 100°±10° | |||||
Electrical and Mechanical Performance | ||||||
Input Voltage | AC200-264V,50/60Hz | |||||
Input Voltage | 0.14A | 0.23A | 0.45A | 0.68A | 0.9A | |
Power Factor | ≥0.95 | |||||
Total Harmonic Distortion(THD) | ＜20% | |||||
Electrical Protection Rating | Class I | |||||
Surge Protection | L-N 4KV L/N-PE 4KV | L-N 4KV L/N-PE 4KV | L-N 4KV L/N-PE 4KV | L-N 4KV L/N-PE 4KV | L-N 4KV L/N-PE 6KV | |
Control Method | Switch | |||||
Housing Material | Lamp Body:Aluminum Stamped Housing/Die-Cast Aluminum(for 200W),Light Output Surface:Glass | |||||
Surface Treatment | Surface Coating/Black | |||||
Cable Exit Specification | 3x1mm² Rubber Cable(L=240mm) | |||||
Dimensions(LxWxH)
(Including Bracket) | 181*135*33 | 205*160*33 | 301*220*38 | 402*290*36 | 422*300*31 | |
Weight(Net Weight) | 0.38kg | 0.5kg | 1.05kg | 1.75kg | 2.15kg | |
Waterproof Method | Structural Waterproofing with Built-in Anti-Siphon Device | |||||
Protection Rating | IP66 IK06 | |||||
Installation Method | Bracket-Mounted Installation | |||||
Optional Accessories | / | |||||
System Technical Specifications | ||||||
Application Sites | Indoor/Outdoor | |||||
Operating Temperature | -30℃ ~ +40℃ | |||||
Storage Temperature | -40℃~+85℃ | |||||
Service Life | LM70B50 ≥30000H | |||||
Compliance Standards | GB7000.1-2015/IEC 60598-1：2014 | |||||
Certification | CQC | |||||
Model | Color Temperature(K) | Angle | Luminous Flux(lm) | Luminous Efficacy(lm/W) | Center Beam Candlepower(CBCP)(cd) |
F04-30 | 5700 | 100°±10° | 2850 | 95 | 1240 |
F04-50 | 5700 | 100°±10° | 4750 | 95 | 2075 |
F04-100 | 5700 | 100°±10° | 9500 | 95 | 3880 |
F04-150 | 5700 | 100°±10° | 14250 | 95 | 5959 |
F04-200 | 5700 | 100°±10° | 19000 | 95 | 7422 |
Model | L | W | H | D1 | W1 | L3 |
F04-30 | 181 | 135 | 33 | Φ8.5 | 12.5 | 90 |
F04-50 | 205 | 160 | 33 | Φ8.5 | 12.5 | 100 |
F04-100 | 301 | 220 | 38 | Φ8.5 | 16.5 | 160 |
F04-150 | 402 | 290 | 36 | Φ8.5 | 16 | 240 |
F04-200 | 422 | 300 | 31 | Φ8.5 | 16 | 240 |
