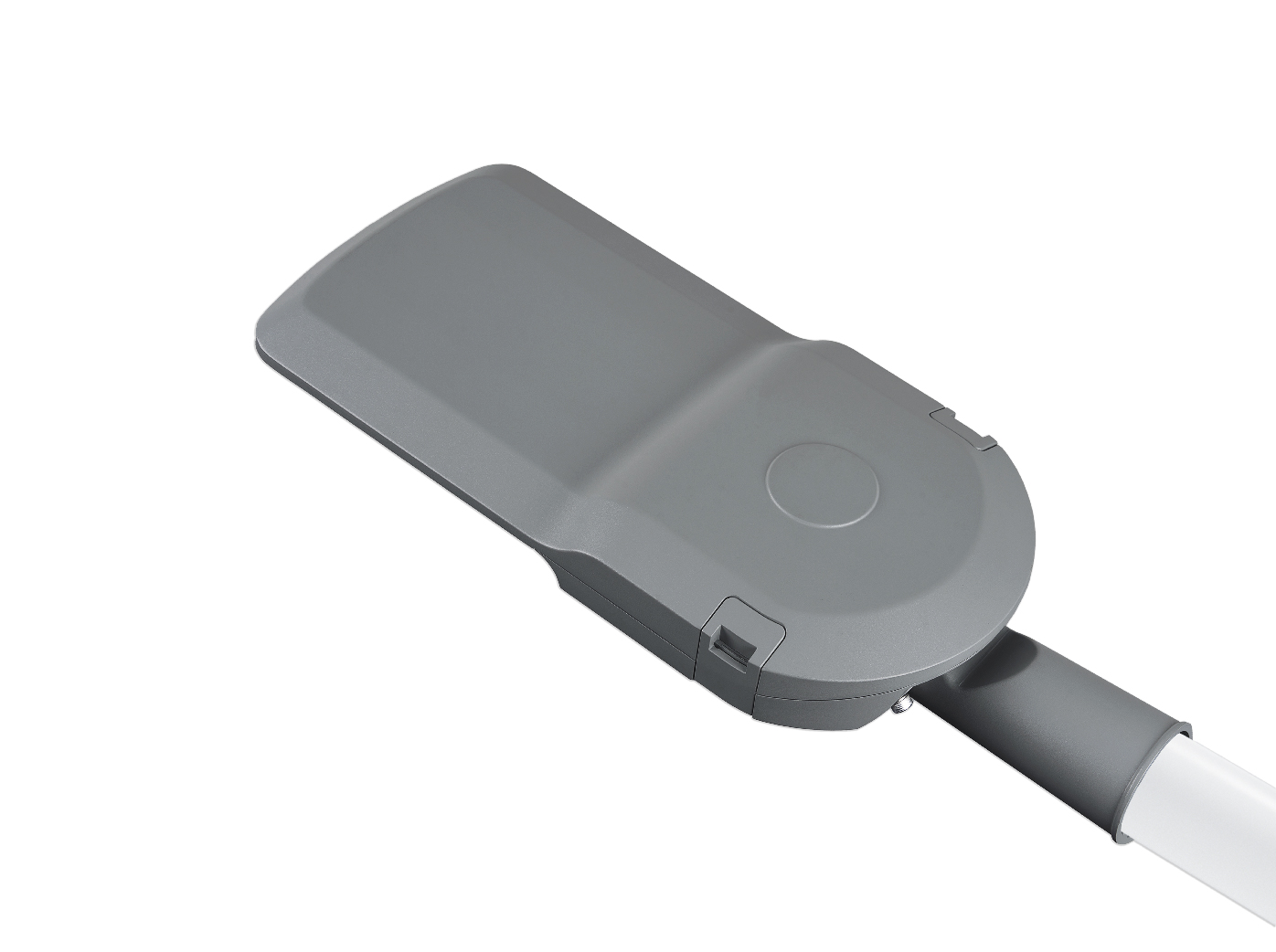

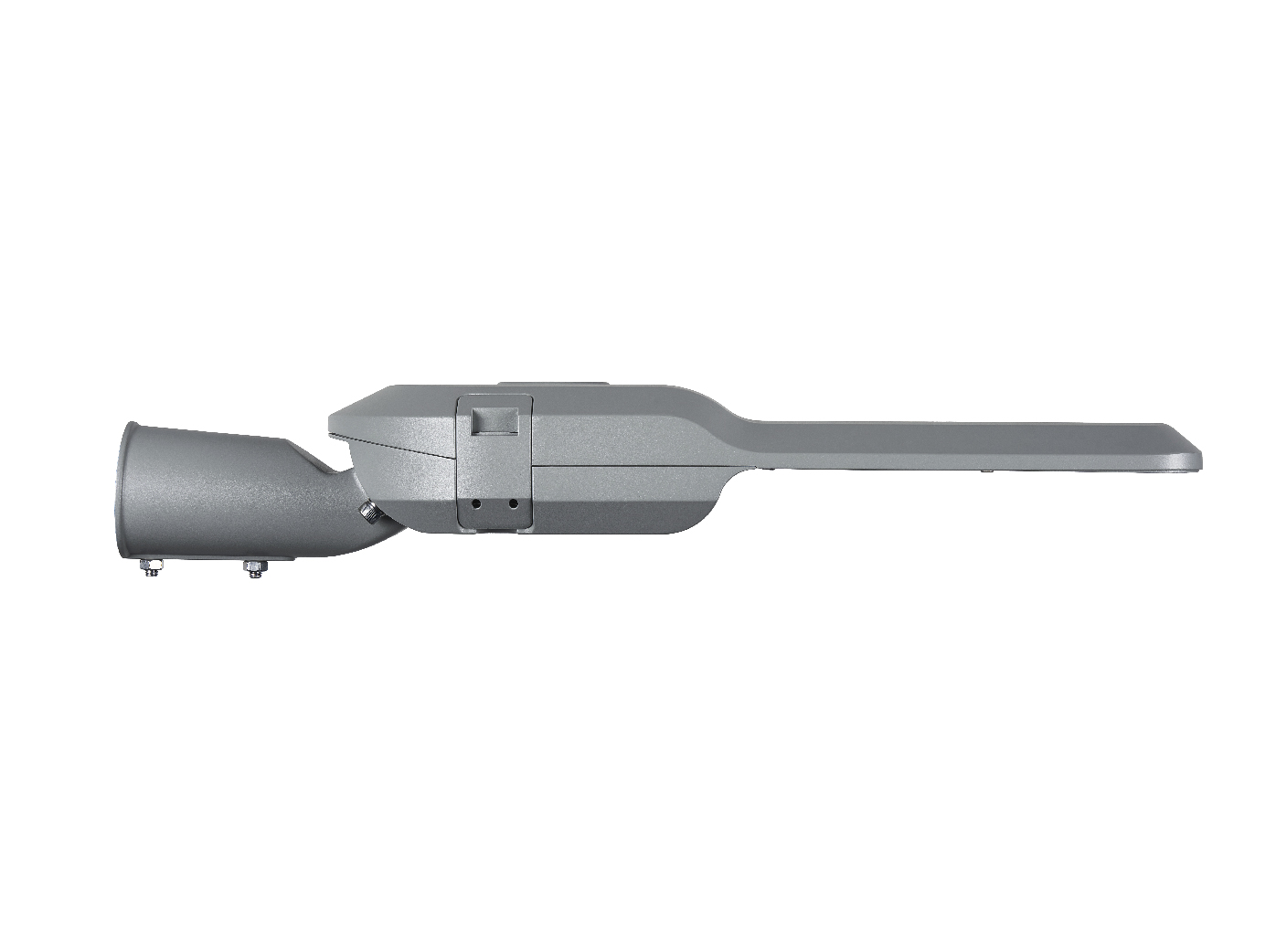

Blade 6 (R06) Street Light
The lighting fixture has a simple shape, smooth lines, and a sleek surface. It is not prone to dust accumulation or water retention, and it has good self-cleaning properties；
The light-emitting surface features a high-transmittance lens, which offers high light transmittance, resistance to ultraviolet rays and weathering, and ensures a longer service life；
The 3D stereo heat-dissipating lamp body allows for faster heat dissipation；
The structure features waterproof design with IP66 and IK08 protection ratings.The extended and thickened conduit ensures safety and reliability；

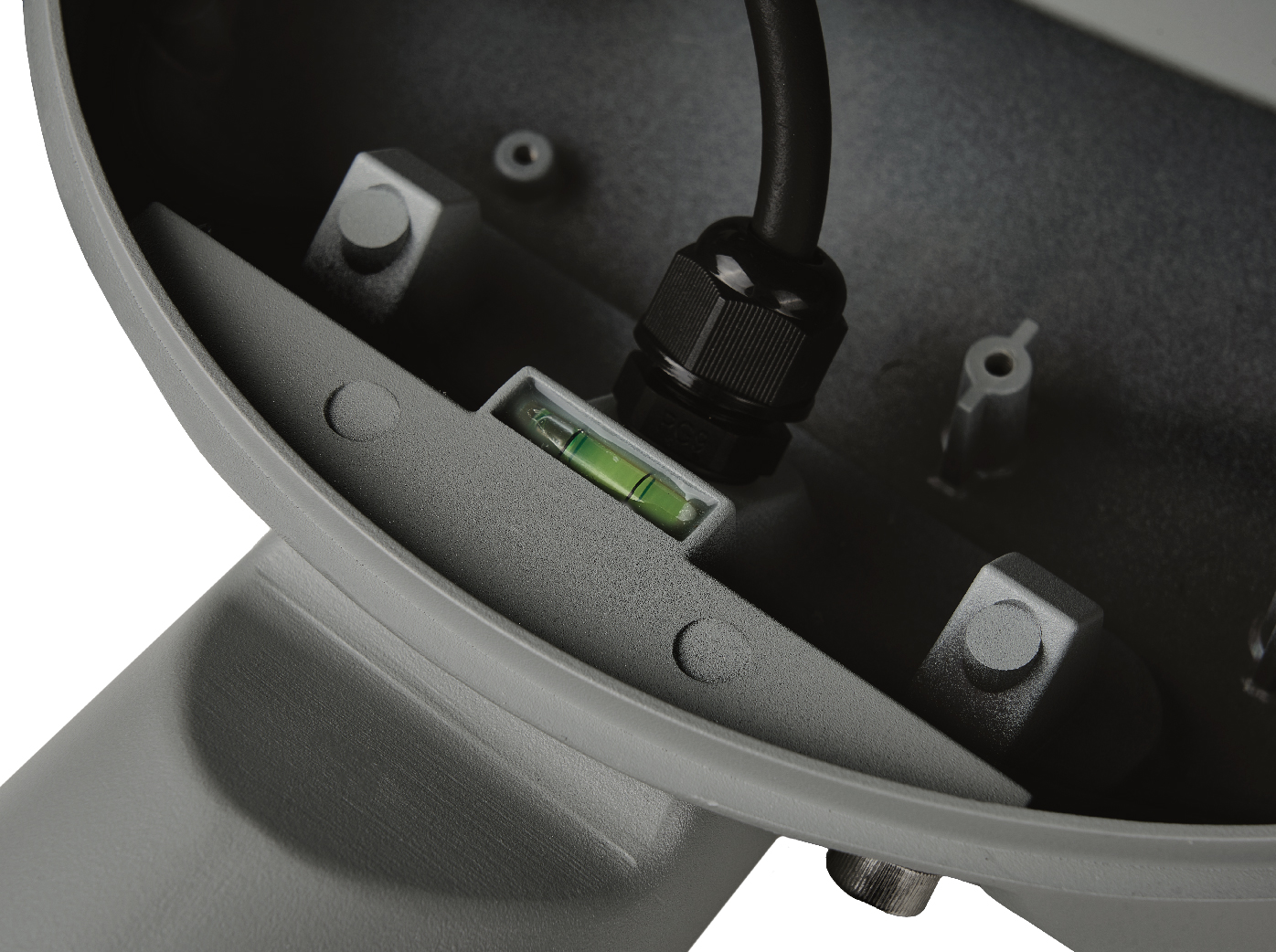

The lighting fixture is equipped with a level inside,which facilitates installation and improves installation efficiency and consistency；

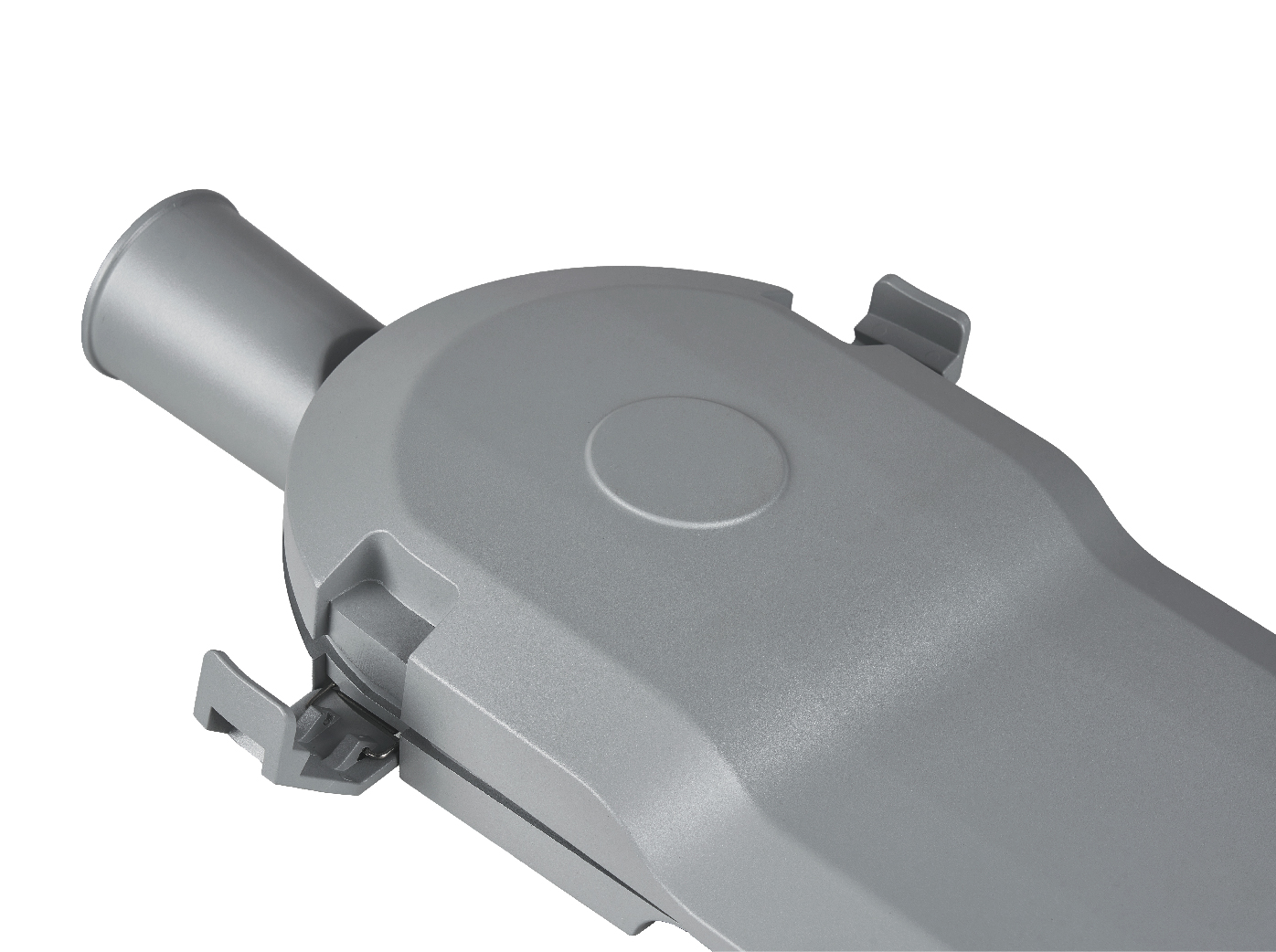

The lighting fixture is equipped with a snap-on rear cover for the entire lamp chamber,allowing maintenance to be performed without the need for a screwdriver；
Tempered glass panel,fixed without adhesive；

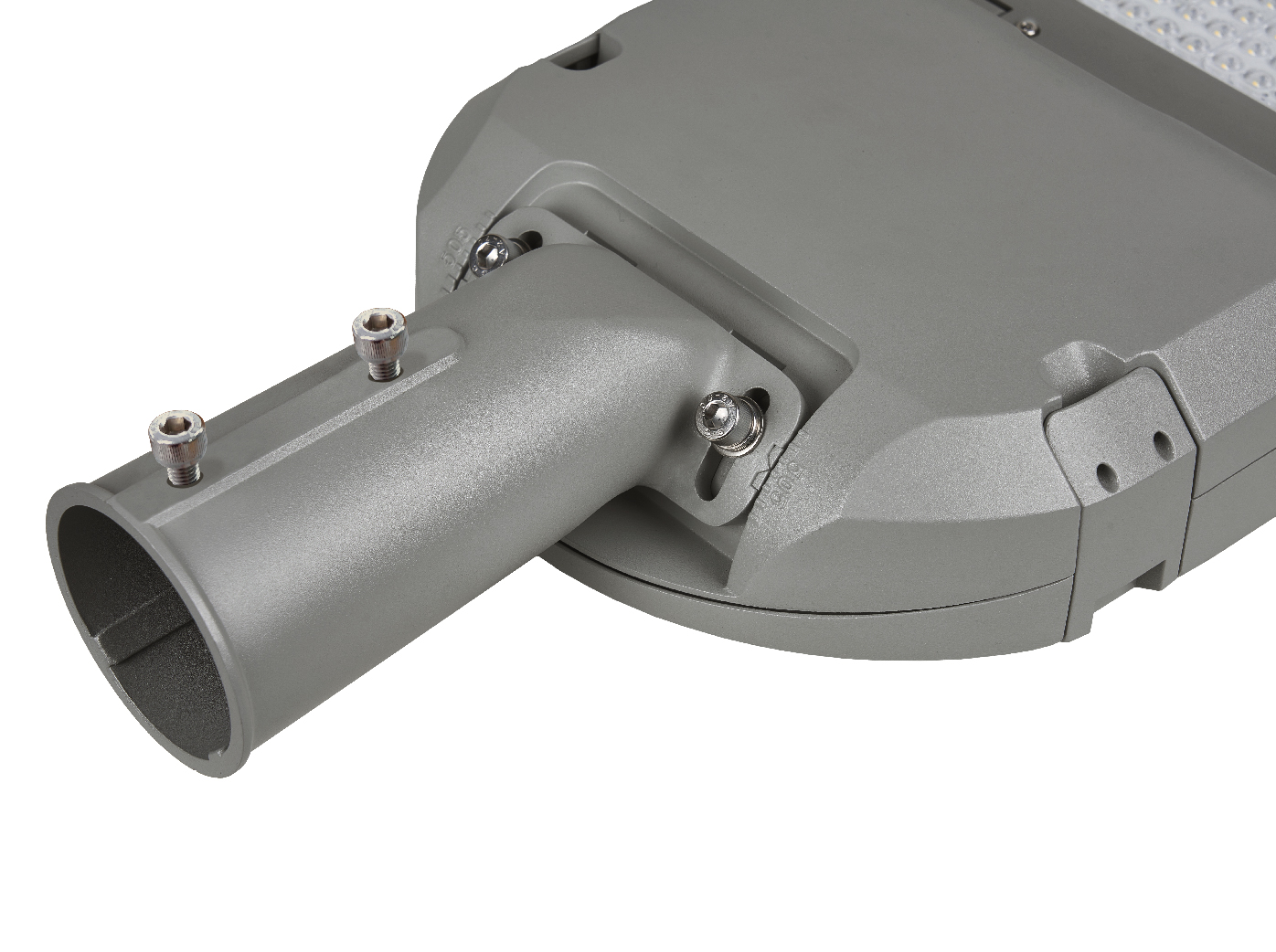

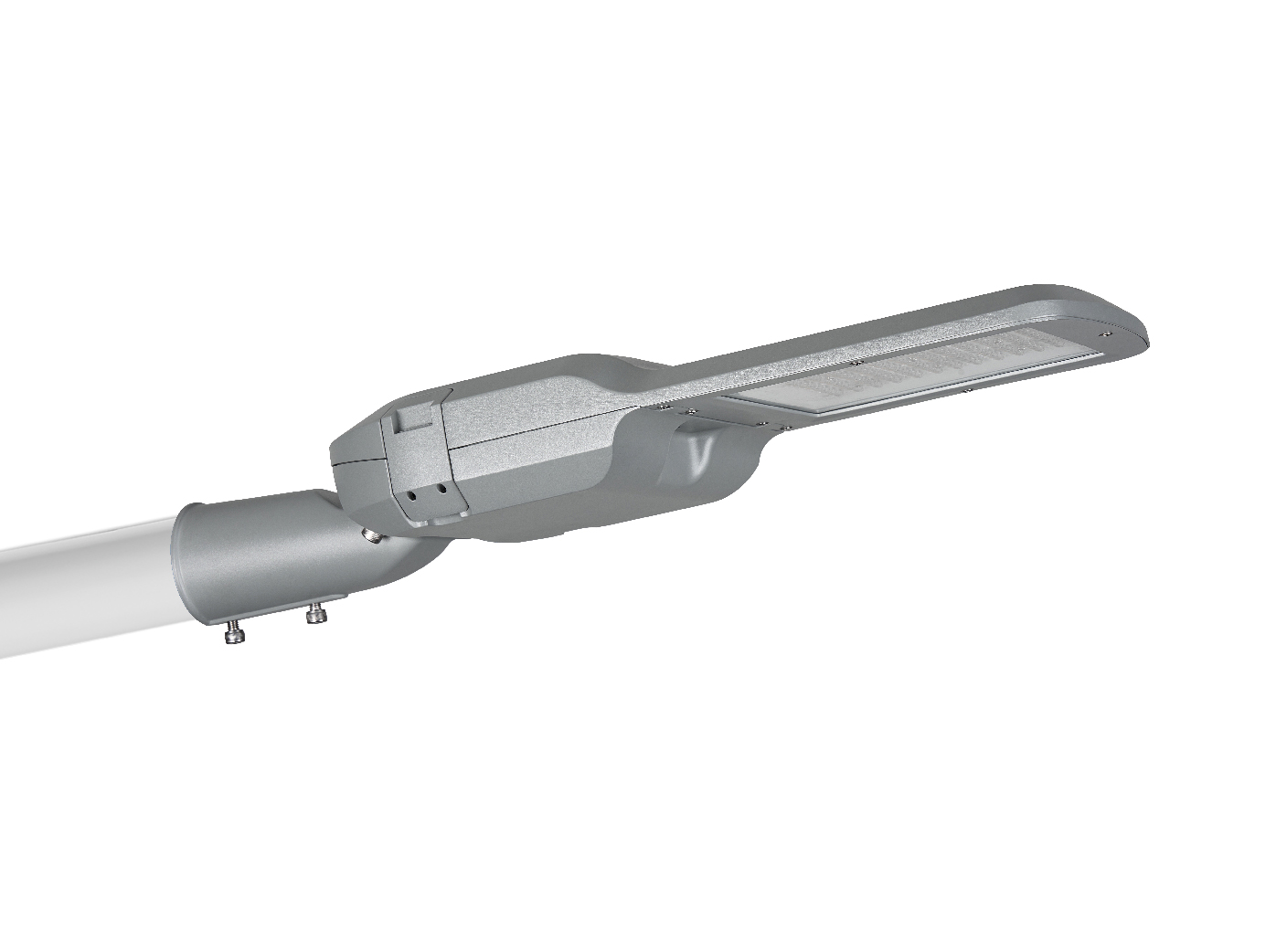

Elbow conduit,suitable for installation on vertical and horizontal poles;the lamp head angle is adjustable；
High-efficiency LED chips,with the overall lamp efficacy being≥150 Lm/W；
The fixture is equipped with a reserved smart control interface to achieve intelligent lighting.Functions such as 0/1-10V dimming,time control,light sensing,and IoT control are available as options；
Built-in overvoltage,short-circuit,and lightning protection ensure high efficiency,greater stability,enhanced intelligence,and increased convenience；
The independent design of the driver module and the light source module overcomes the dilemma of conflicting heat dissipation and photoelectric performance；

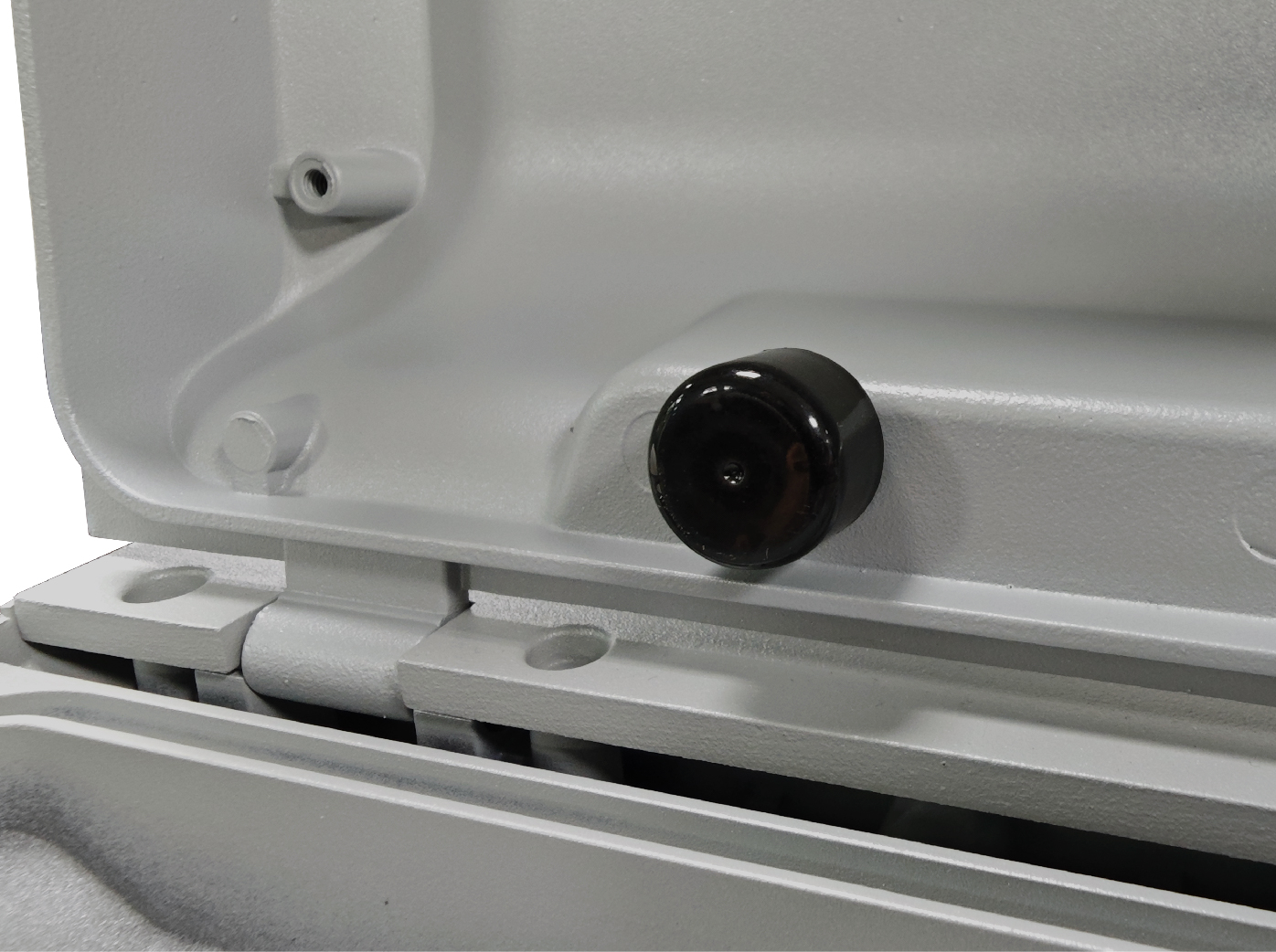

The built-in breather valve design maintains the balance of air pressure inside and outside the lamp body,thereby extending the service life of the lighting fixture；
The product features a series design with a comprehensive range of power options,making it suitable for a wider range of applications；

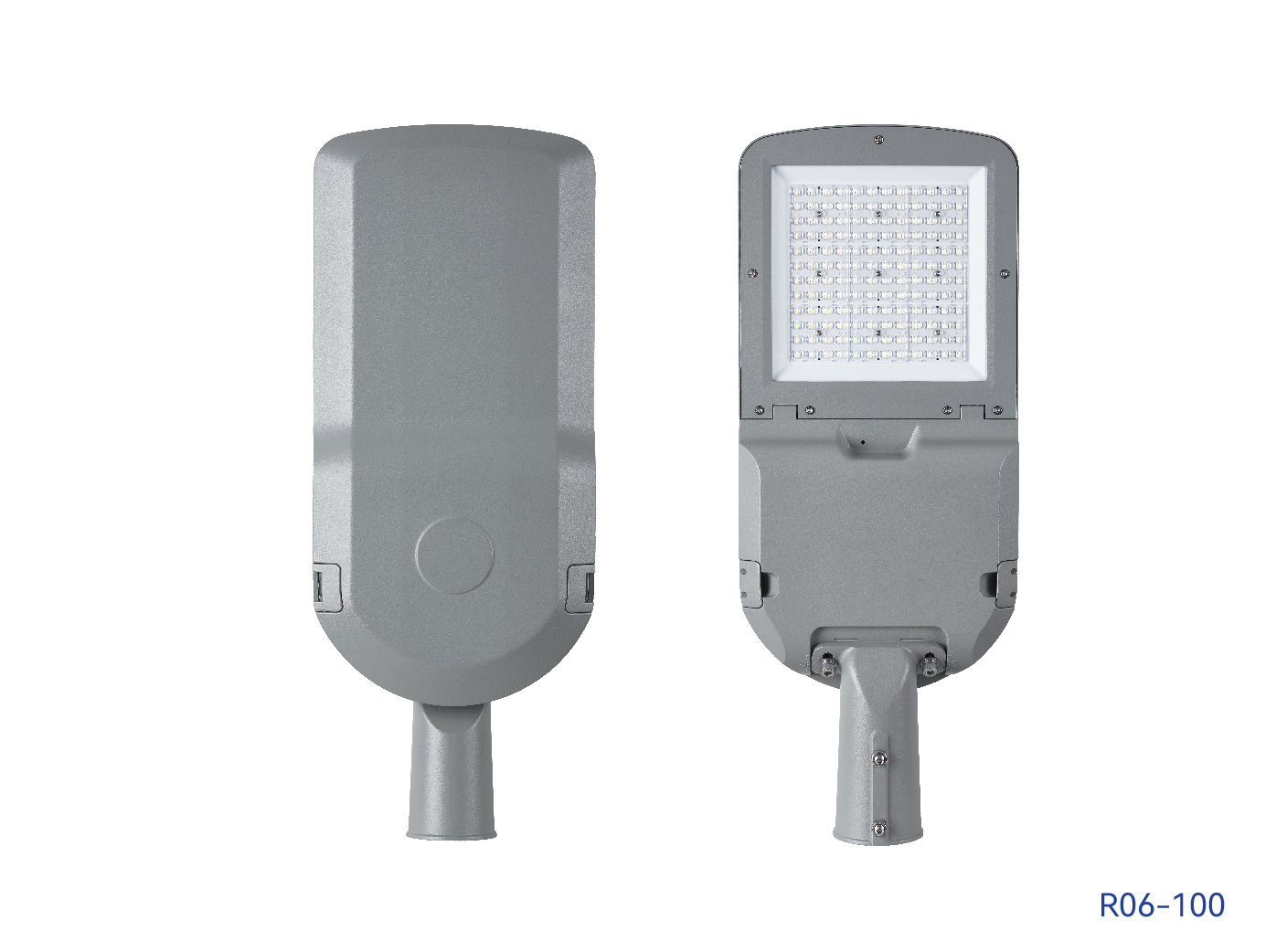

Product Model | R06-50 | R06-75 | R06-100 | R06-150 | R06-200 |
Power | 50W | 75W | 100W | 150W | 200W |
Voltage | 100-277V， 50/60 Hz | ||||
Number of LEDs | 64PCS | 96PCS | 144PCS | 192PCS | 320PCS |
LED Chip Specification | SMD 2835/3030 | ||||
Power Factor | ≥ 0.95 | ||||
Color Temperature | 3000-6000K | ||||
Color Tolerance | <5 | ||||

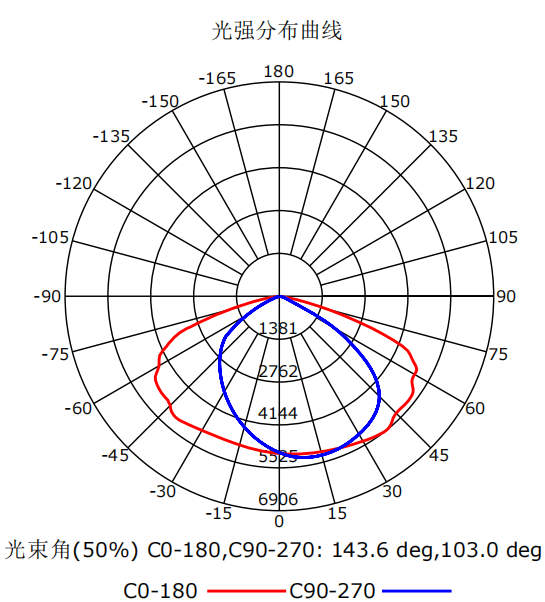

Lamp Beam Angle | 70° x 140° | ||||
Total Harmonic Distortion(THD) | ≤15% | ||||
Color Rendering Index(CRI) | Ra≥70 | ||||
Control Unit | 0/1-10V dimming, time control, light sensing, and IoT control are optional. | ||||
4200-8400 | 9800-11200 | 12600-16800 | 18200-25200 | 26600-39200 | |
150lm/W--200lm/W | |||||
Light Pattern Type | Batwing Luminaire | ||||
Service Life | ≥50000H | ||||
Protection Rating | IP66 | ||||
Impact Resistance | IK08 | ||||
Lamp Body Material | 灯体高强度压铸铝, 出光面玻璃 The lamp body is made of high-strength die-cast aluminum,with a glass light-emitting surface. | ||||
Operating Temperature Range | -40℃~+50℃ | ||||
Storage Temperature Range | -45℃~+75℃ | ||||
Net Weight of the Product(without Light Sensor) (KG) | 3.6 | 4.0 | 4.8 | 5.0 | 6.1 |
Net Weight of the Product(with Light Sensor) (KG) | 4.0 | 4.4 | 5.2 | 5.4 | 6.5 |

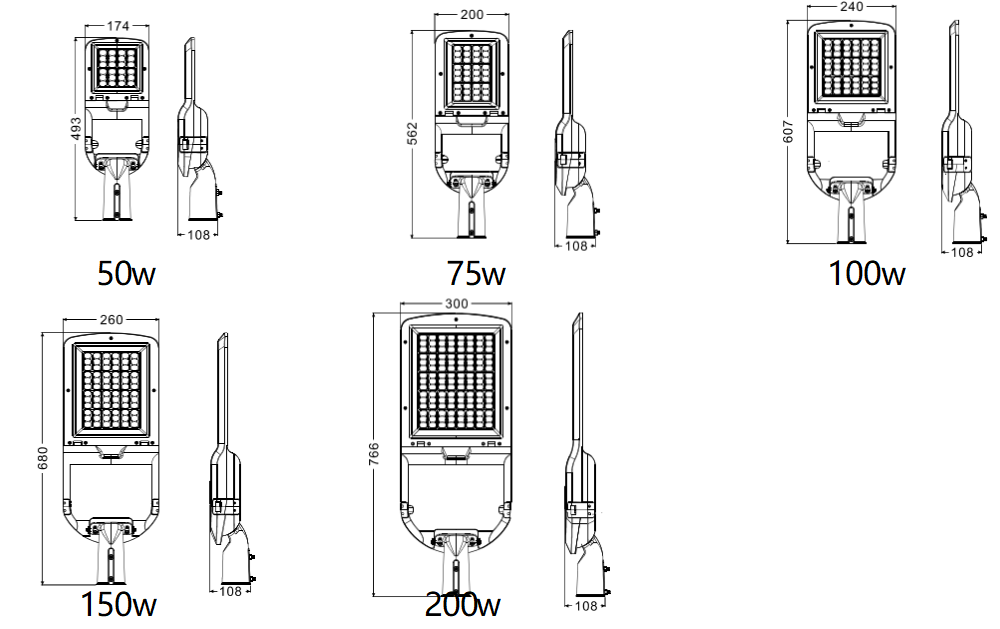

Lamp Body Dimensions(without Light Sensor) (mm) | 493*174*108 | 562*200*108 | 607*240*108 | 680*260*108 | 766*300*108 |
Lamp Body Dimensions(with Light Sensor) (mm) | 493*174*181 | 562*200*181 | 607*240*181 | 680*260*181 | 766*300*181 |
