S01 Solar Floodlight Series

Bose ShowMatch ™ DeltaQ ™ Array speaker SM5, providing 5 ° vertical coverage including on-site variable waveguide for 70 ° or 100 ° horizontal coverage, optional accessory 55 ° waveguide selection. Replace the single waveguide plate to form a horizontal asymmetric pattern. The bidirectional template requires an external power amplifier (2 channels) and DSP to provide a peak array output of up to 145db at 59-19000Hz for the full range of responses.

Next Product Contact

Applications
Specification
Features
Control Method
Light Distribution
Dimensions
Accessories

Applications

Sports fields

Courtyards

Parks

country road

Specification

Models	Power	Battery	Size（mm)	Weight（KG）	Lumen Output (lm)	Efficacy (lm/W)	CRI (Ra)	Beam Angle	Installation Height (m)	Illuminated Area
S01-	Lighting: 3W	3.2V	Fixture: 18915548	Fixture: 0.63	450	150	≥80	100°	3-4	20
B003	PV Panel: 10W/6V	6Ah	PV Panel: 35023517	PV Panel: 0.6
S01-	Lighting: 5W	3.2V	Fixture: 18915548	Fixture: 0.77	720	150	≥80	100°	4-5	50
B005	PV Panel: 10W/6V	12Ah	PV Panel: 35023517	PV Panel: 0.6
S01-	Lighting: 9W	3.2V	Fixture: 27021748	Fixture: 1.33	1350	150	≥80	100°	5-6	100
B009	PV Panel: 18W/6V	18Ah	PV Panel: 35035017	PV Panel: 1.09
S01-	Lighting: 12W	3.2V	Fixture: 27021748	Fixture: 1.48	1800	150	≥80	100°	6-7	200
B012	PV Panel: 25W/6V	24Ah	PV Panel: 35045017	PV Panel: 1.18
S01-	Lighting: 15W	3.2V	Fixture: 27021748	Fixture: 1.63	2250	150	≥80	100°	7-8	300
B015	PV Panel: 25W/6V	30Ah	PV Panel: 35045017	PV Panel: 1.18

Product Features

Input Voltage	DC3.2V	Charging Voltage	DC6V
Housing material /Color	Die-cast aluminum + tempered glass lens/black	Surface Treatment	fluorocarbon spraying
Installation Bracket/Material	Disassembly-free bevel bracket/galvanized sheet with black	Installation Method	Fixed on surface
Working Environment Temperature/Humidity	-20℃ to 45℃/≤85%RH	Storage Temperature/Humidity	-20℃ to 50℃/≤65%RH
Luminaire Surface Temperature	＜45℃ (under 25℃)	Isolation Grade	Class Ⅲ
Lifespan	under 25℃>30000H	IP Grade	IP66
Applications	Sports fields, courtyards, parks, country roads, etc.	IK Grade	IK06
Male and Bus Bar Specifications	60227(52 RVV) 2*0.5² 1m	Wiring（Optional）	60227(52 RVV) 2*0.5² with pin and box 4m

Control Method

Solar light control + timing control + remote control, the light control timing table is as follows:

Period 1	Period 2	Period 3	Period 4	Period 5
40% 0.5H	100% 1.5H	60% 2H	40% 2H	15% until dawn

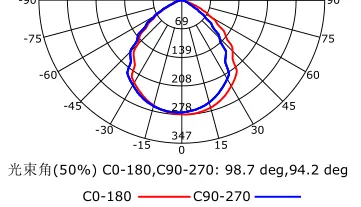

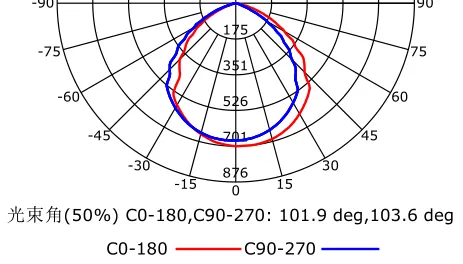

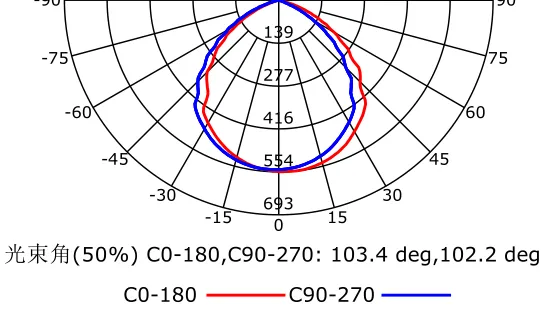

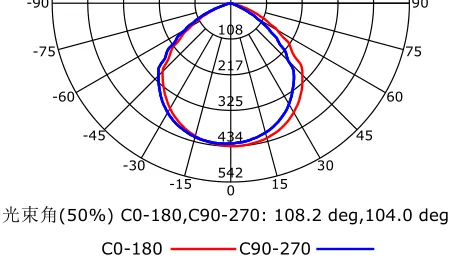

Light Distribution

Dimensions

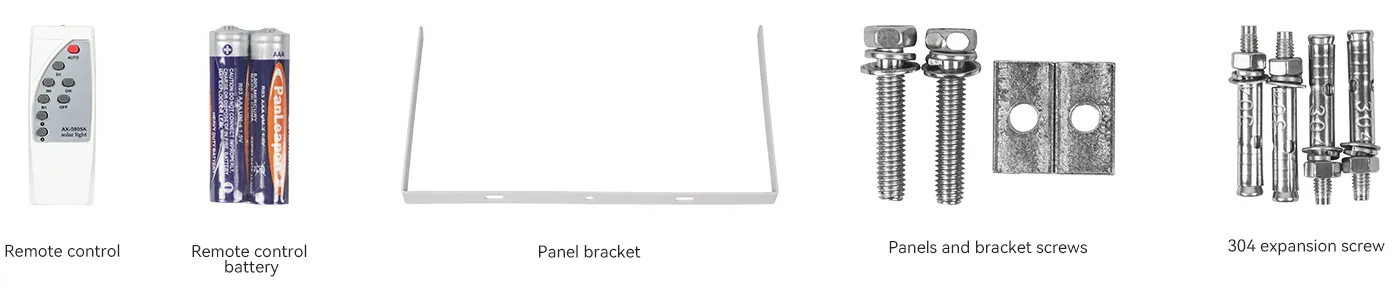

Lighting Accessories

Photovoltaic panel

Automatically charges during the day, automatically turns on when dark, flash charging takes 5-6 hours to fully charge on sunny days.
Using Monocrystalline silicon solar panel, the charging efficiency is 22%, it absorbs light faster, charges more strongly and durable.

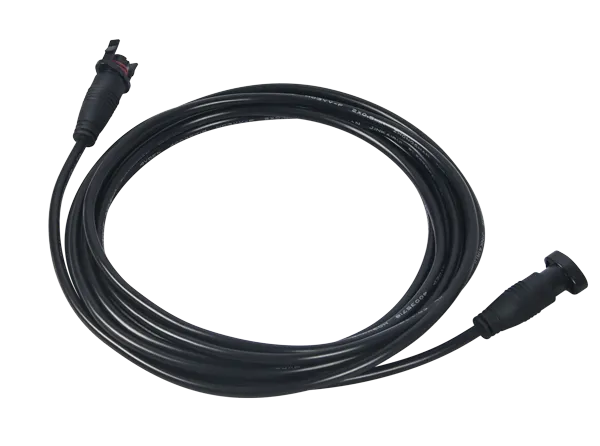

Extension cord（Optional）

4m extension cable
Suitable for use in places with insufficient sunlight
Photovoltaic panels are installed in locations with longer sunshine hours, and lamps can be installed wherever you want.
