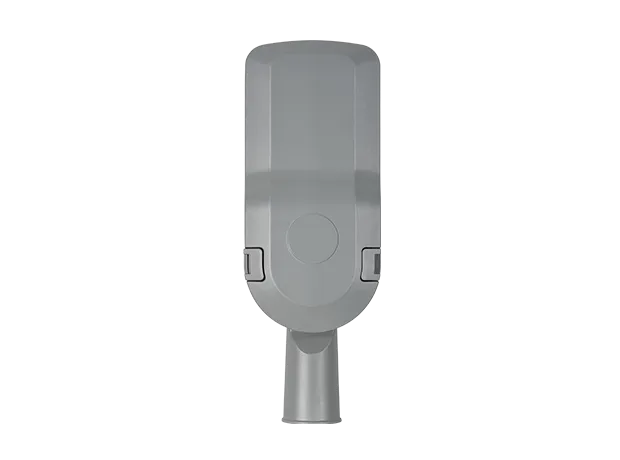

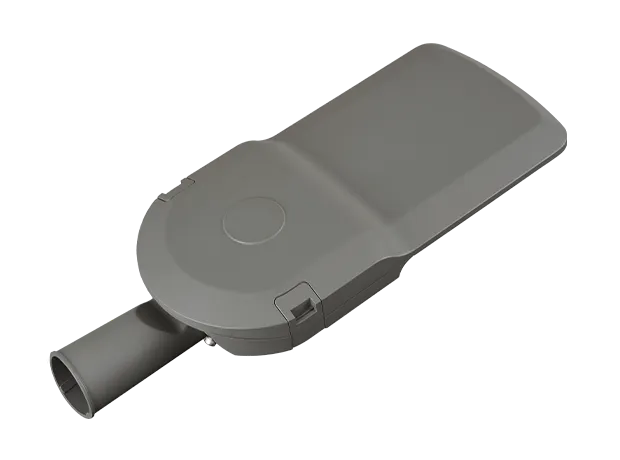

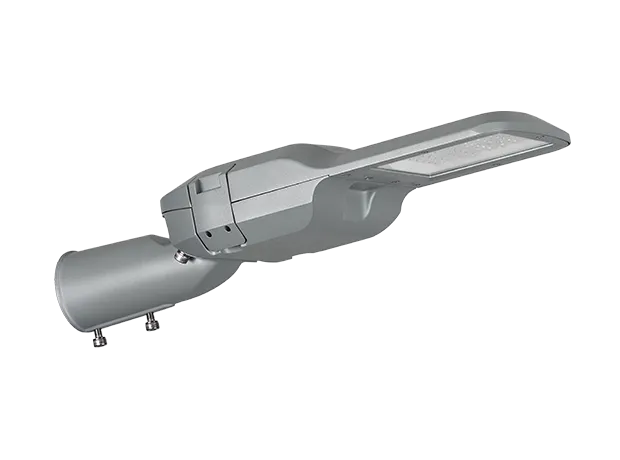

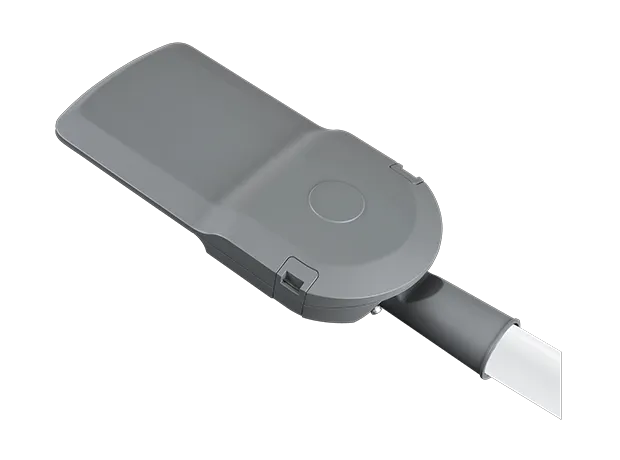

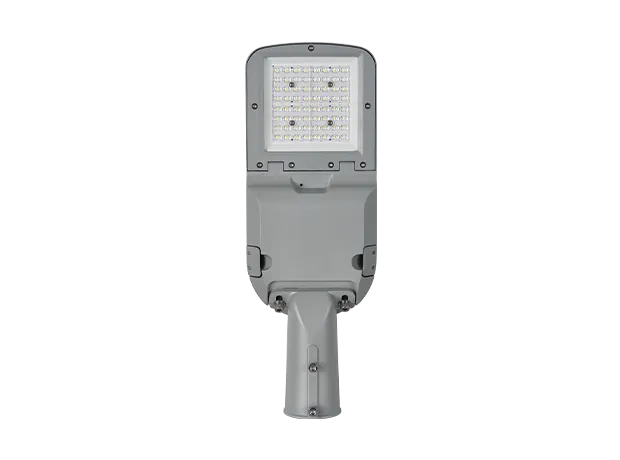

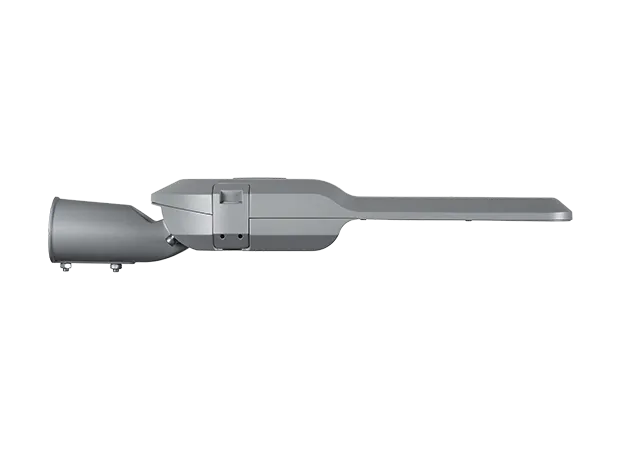

HIPO Energy‑Efficient LED Street Light

1. The lighting fixture has a simple shape, smooth lines, and a sleek surface. It is not prone to dust accumulation or water retention, and it has good self-cleaning properties;

2. The light-emitting surface features a high-transmittance lens, which offers high light transmittance, resistance to ultraviolet rays and weathering, and ensures a longer service life;

3. The 3D stereo heat-dissipating lamp body allows for faster heat dissipation;

4. The structure features waterproof design with IP66 and IK08 protection ratings.The extended and thickened conduit ensures safety and reliability;

5. The lighting fixture is equipped with a level inside,which facilitates installation and improves installation efficiency and consistency;

6. The lighting fixture is equipped with a snap-on rear cover for the entire lamp chamber,allowing maintenance to be performed without the need for a screwdriver;

7. Tempered glass panel,fixed without adhesive;

8. Elbow conduit,suitable for installation on vertical and horizontal poles;the lamp head angle is adjustable;

9. High-efficiency LED chips,with the overall lamp efficacy being≥150 Lm/W;

10. The fixture is equipped with a reserved smart control interface to achieve intelligent lighting.Functions such as 0/1-10V dimming,time control,light sensing,and IoT control are available as options;

11. Built-in overvoltage,short-circuit,and lightning protection ensure high efficiency,greater stability,enhanced intelligence,and increased convenience;

12. The independent design of the driver module and the light source module overcomes the dilemma of conflicting heat dissipation and photoelectric performance;

13. The built-in breather valve design maintains the balance of air pressure inside and outside the lamp body,thereby extending the service life of the lighting fixture;

14. The product features a series design with a comprehensive range of power options,making it suitable for a wider range of applications.

Next Product Contact

Advantage

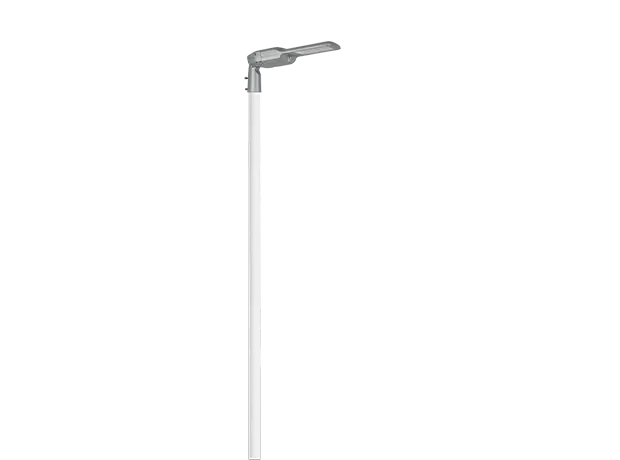

Main Road, Highway, Overpass

Urban Road, Sidewalk

Square, School, Park

Industrial Park, Residential Area

Specification

Product ModelR06-50R06-75R06-100R06-150R06-200
Power50W75W100W150W200W
Voltage100-277V, 50/60 Hz
Number of LEDs64PCS96PCS144PCS192PCS320PCS
LED Chip SpecificationSMD 2835/3030
Power Factor≥ 0.95
Color Temperature3000-6000K
Color Tolerance<5
Lamp Beam Angle70° x 140°
Total Harmonic Distortion(THD)≤15%
Color Rendering Index(CRI)Ra≥70
Control Unit0/1-10V dimming, time control, light sensing, and IoT control are optional.
Luminous Flux(LM)4200-84009800-1120012600-1680018200-2520026600-39200
Luminous efficacy(lm/W)150lm/W--200lm/W
Light Pattern TypeBatwing Luminaire
Service Life≥50000H
Protection RatingIP66
Impact ResistanceIK08
Lamp Body Materiallamp body is made of high-strength die-cast aluminum,with a glass light-emitting surface.
Operating Temperature Range-40℃~+50℃
Storage Temperature Range-45℃~+75℃
Net Weight of the Product(without Light Sensor) (KG)3.644.856.1
Net Weight of the Product(with Light Sensor) (KG)44.45.25.46.5
Lamp Body Dimensions(without Light Sensor) (mm)493*174*108562*200*108607*240*108680*260*108766*300*108
Lamp Body Dimensions(with Light Sensor) (mm)493*174*181562*200*181607*240*181680*260*181766*300*181

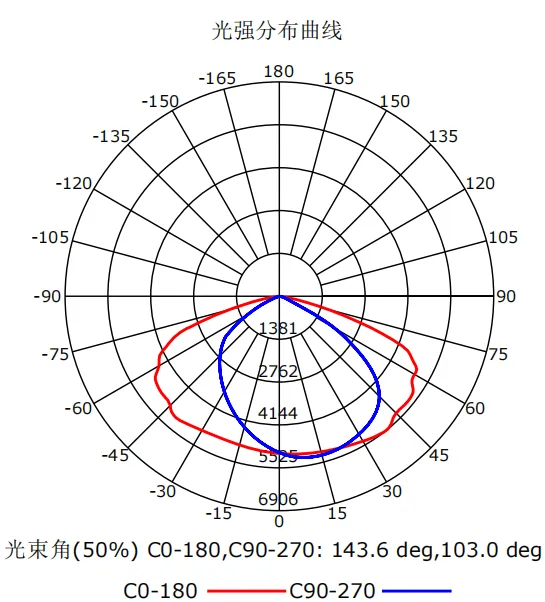

Photometric Curve


Dimensions

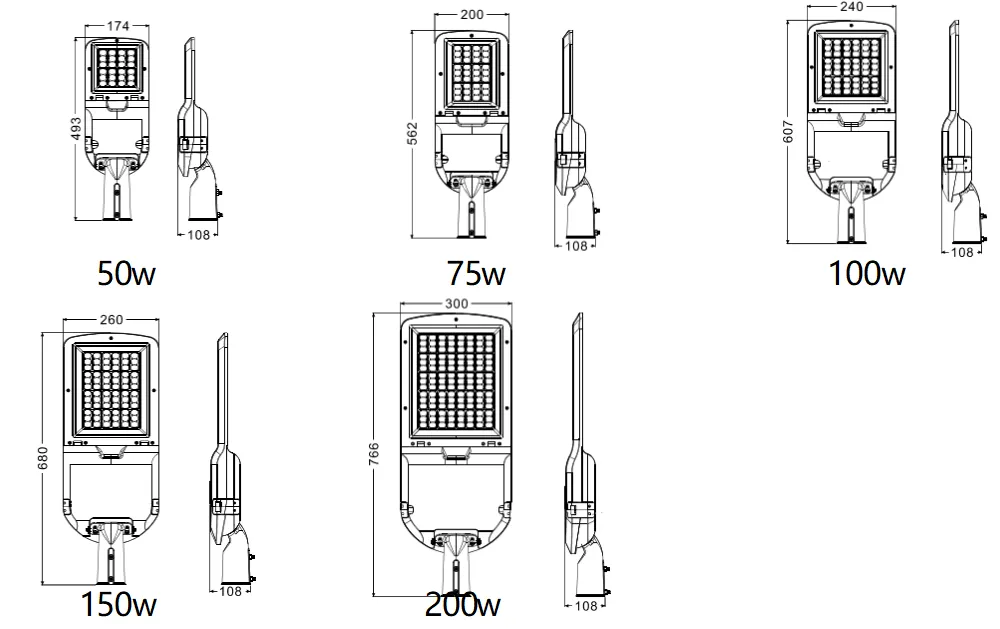

Dimensions without Light Sensor(mm)

Dimensions with Light Sensor(mm)

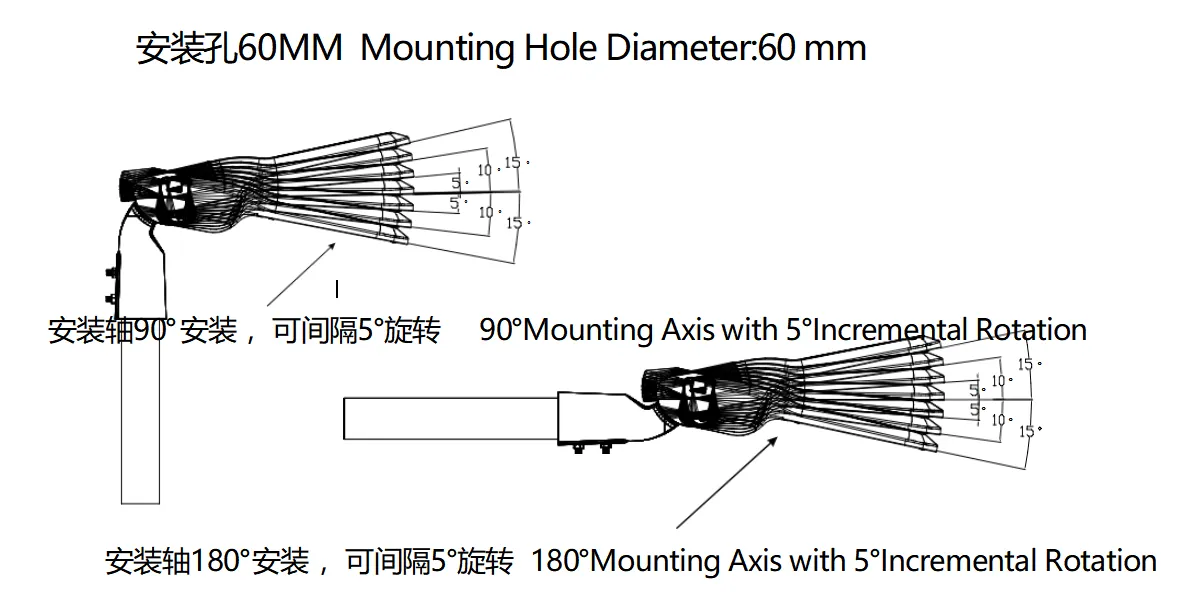

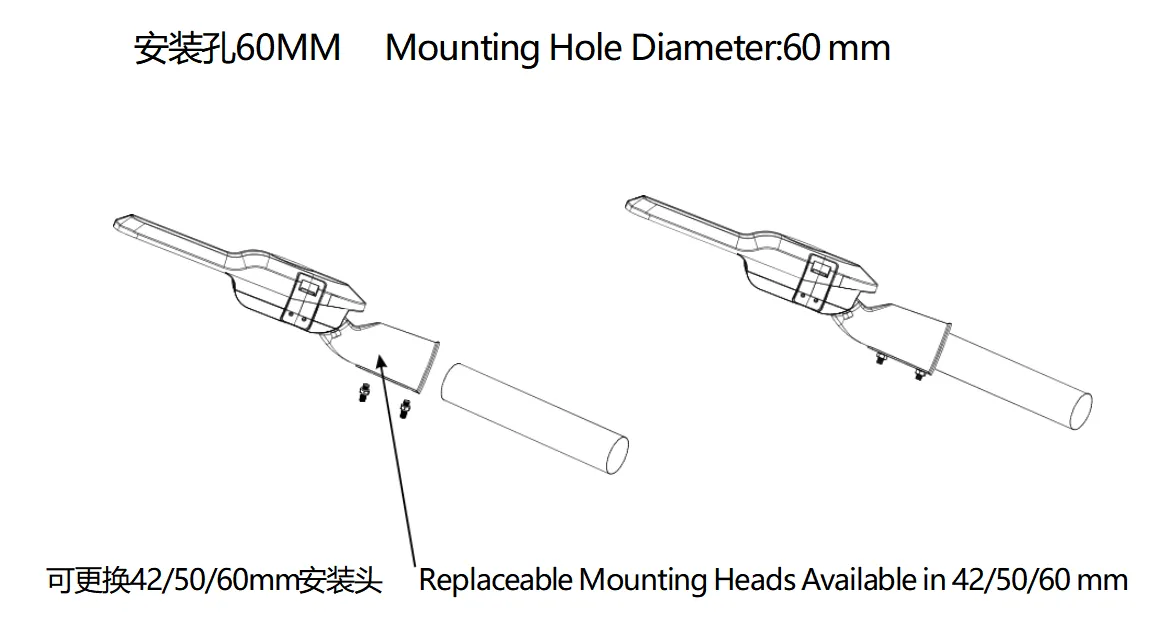

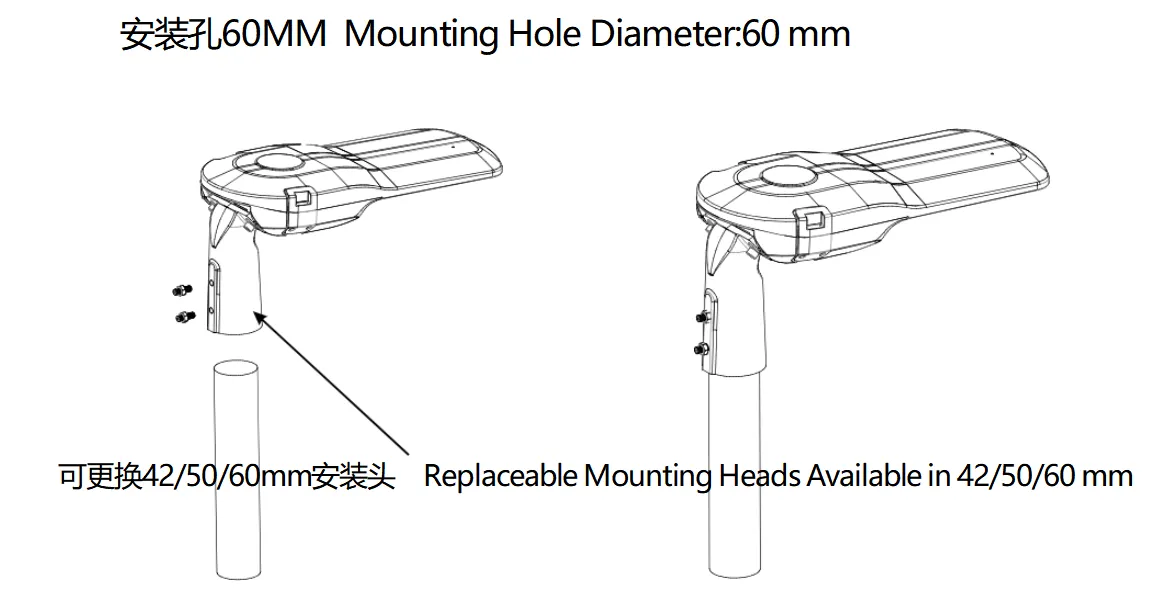

Installation
