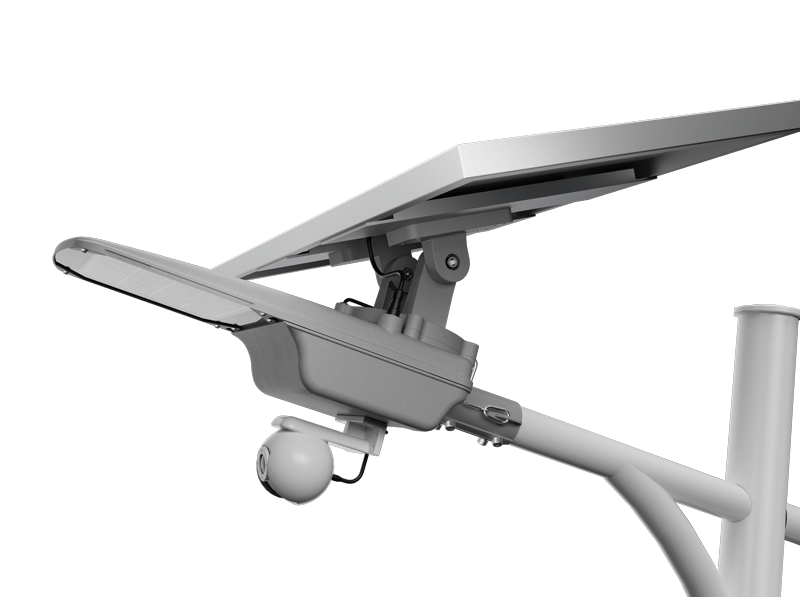

S02摄像头01
S02摄像头02
S0201渲染
S0202渲染
S0203渲染
S0204渲染
S02光伏板
S02安全绳扣

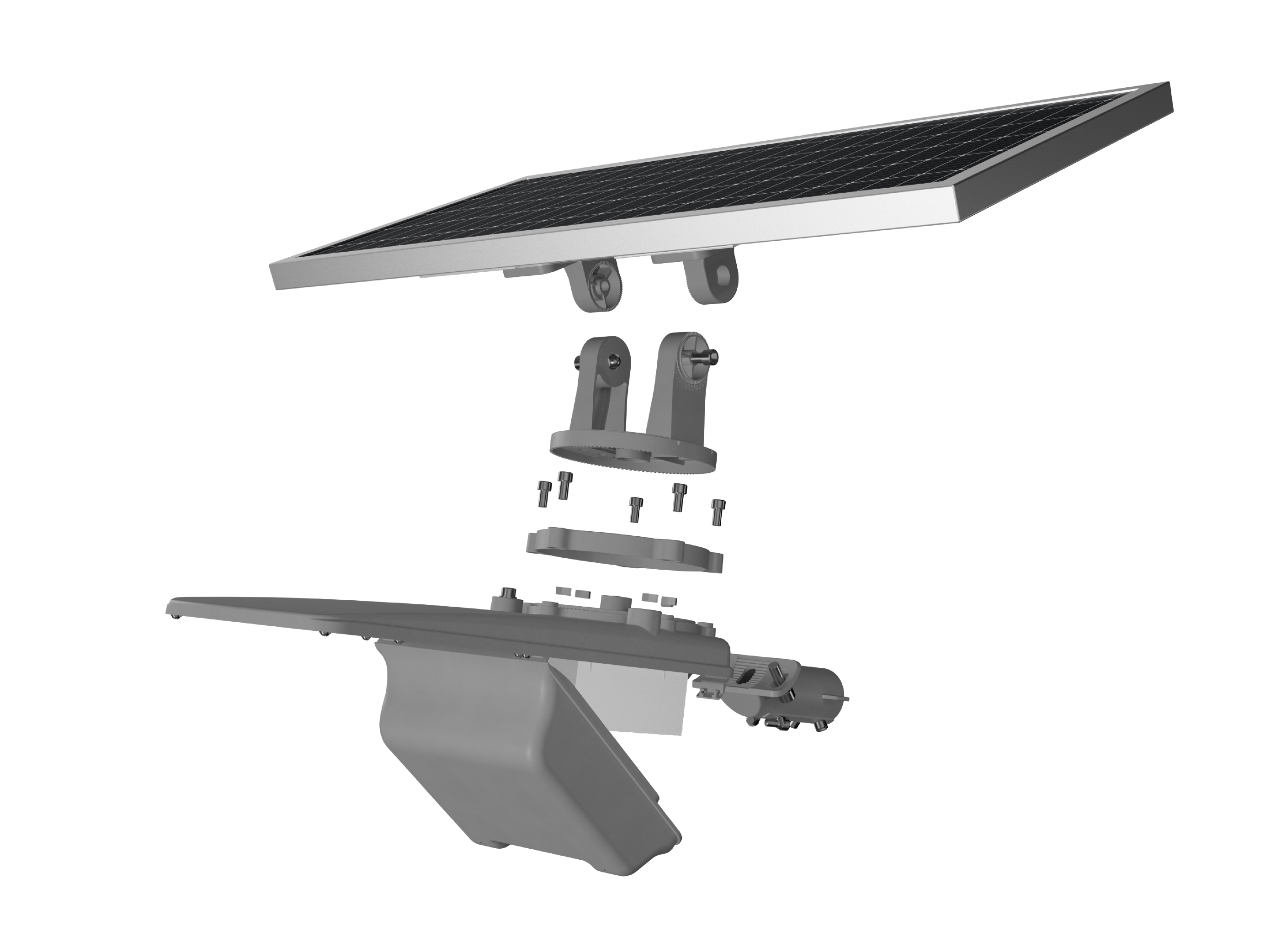

S02爆炸图
S02灯臂01
S02灯臂02

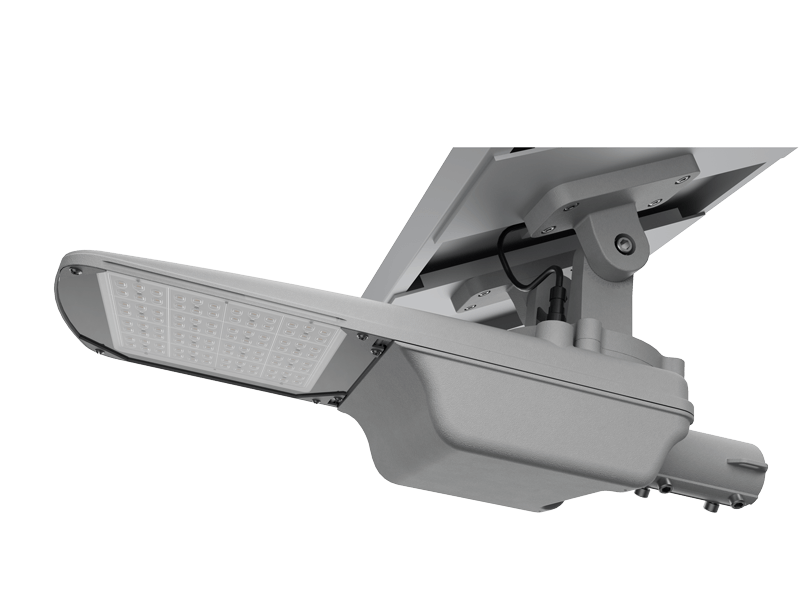

S02灯头-渲染
S02电池
S02接线
S02摄像头01
S02摄像头02
S0201渲染
S0202渲染
S0203渲染

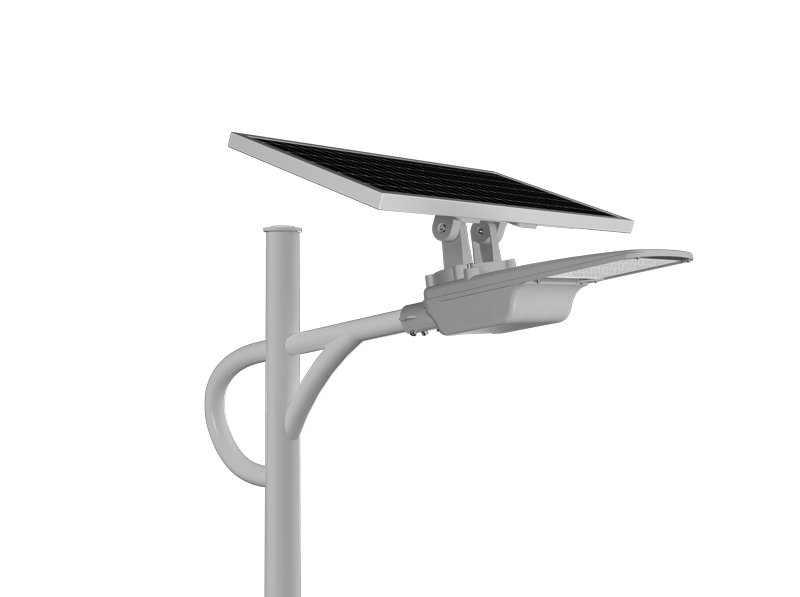

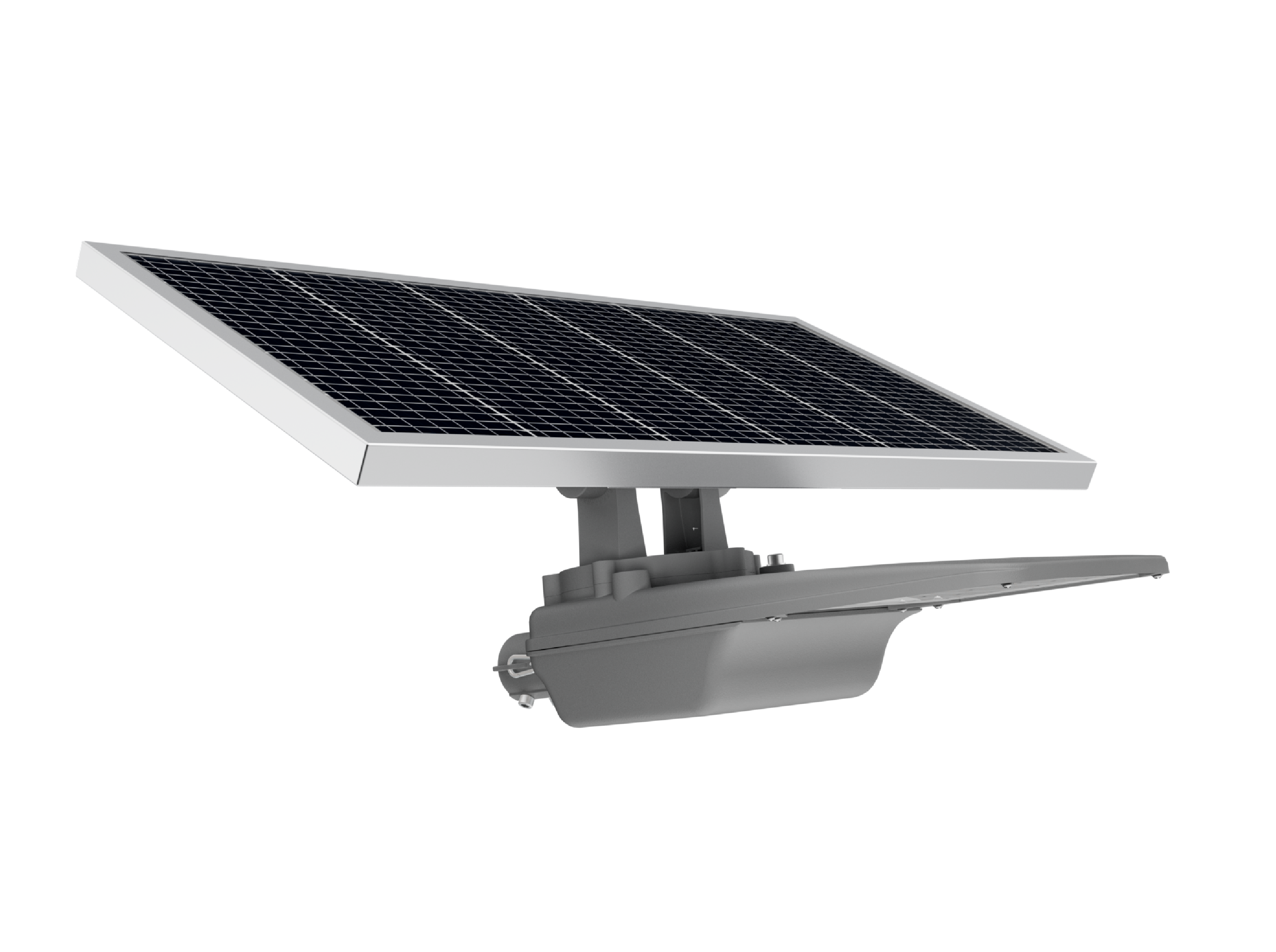

Kestrel 2 (S02) Solar Streetlight

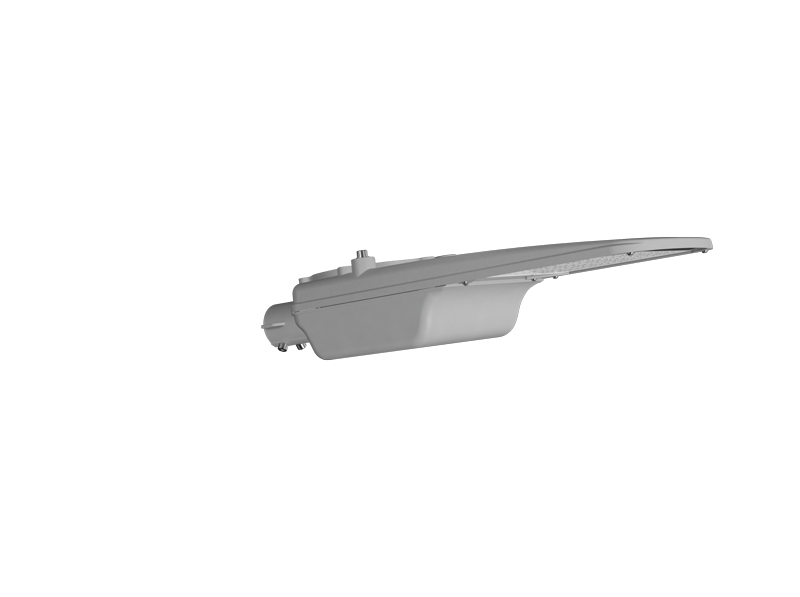

Simple appearance with good self-cleaning performance.

Simple appearance with good self-cleaning performance.

Tempered glass illuminated surface, with high light transmittance and ultraviolet -resistance function, not easy to be yellowing and weathering in contrast with PC cover.

Structural waterproof design, IP66, IK08, Extended and thickened casing, stainless steel 304 connector,2 independent safety ropes.

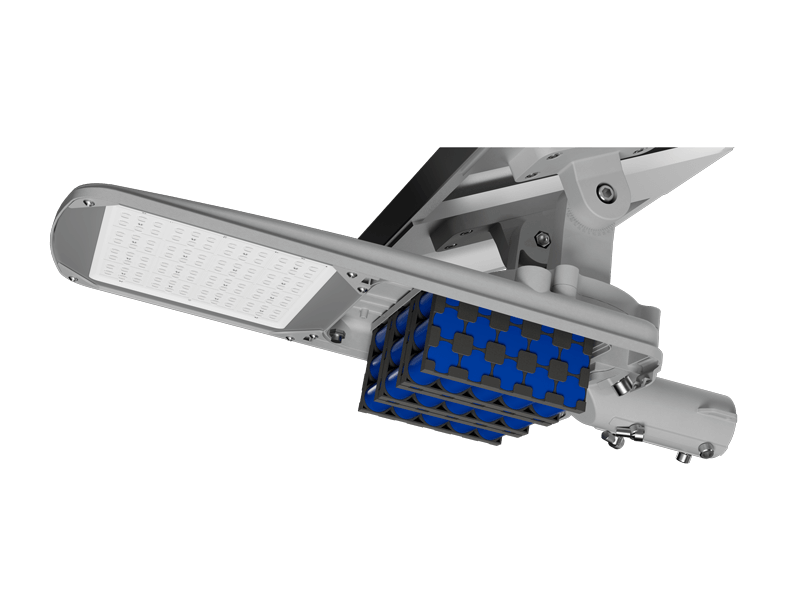

The battery, controller, and LEDs are integrated together, connecting with the photovoltaic panels with a single cable for easier connection.

High-efficiency LEDs, the effect of whole luminaire up to 180-200lm/W.

MPPT charging management, always charges the battery at the maximum power.

MCU control and temperature management system protect the battery from damage caused by overcharge, over voltage, over-discharge, under-voltage, over-temperature, etc.

Multiple control methods: light-level control, time sequence control, MW control, etc.

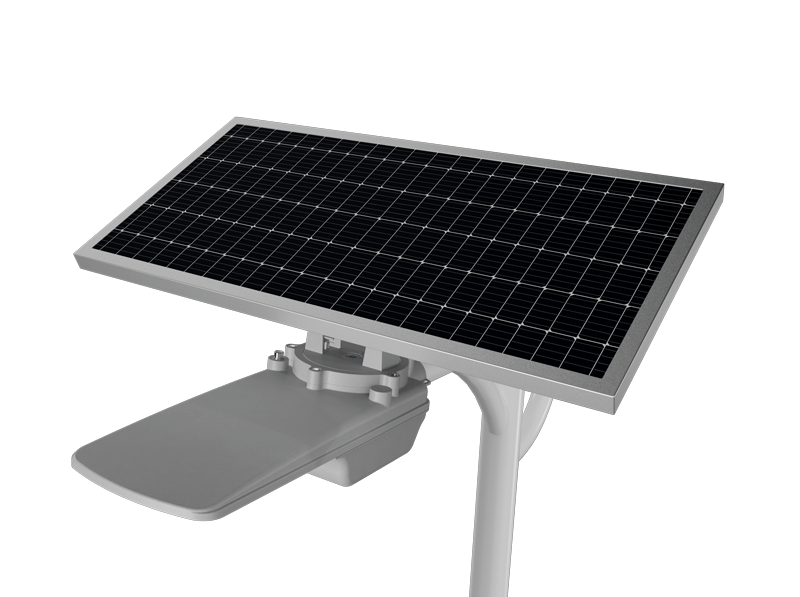

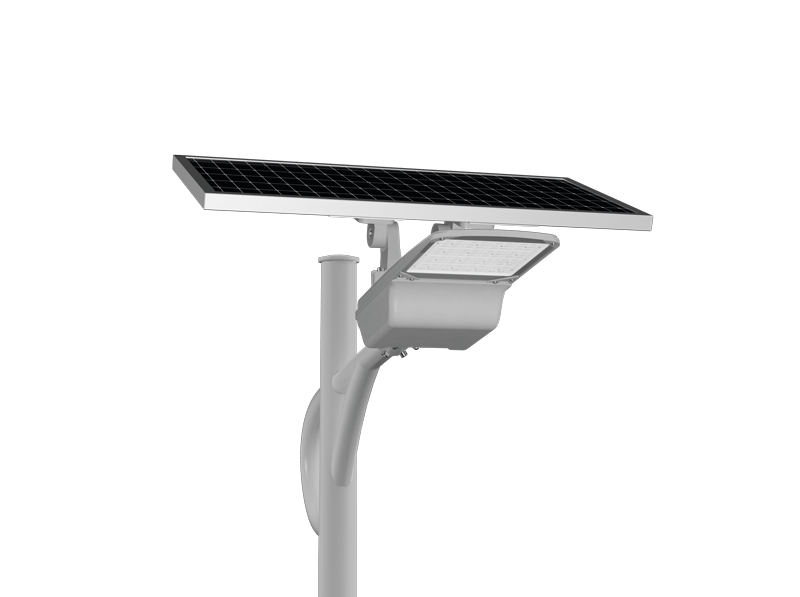

Photovoltaic panels are adjustable 360° horizontally and 52° vertically suitable for use on roads in different latitudes and directions.

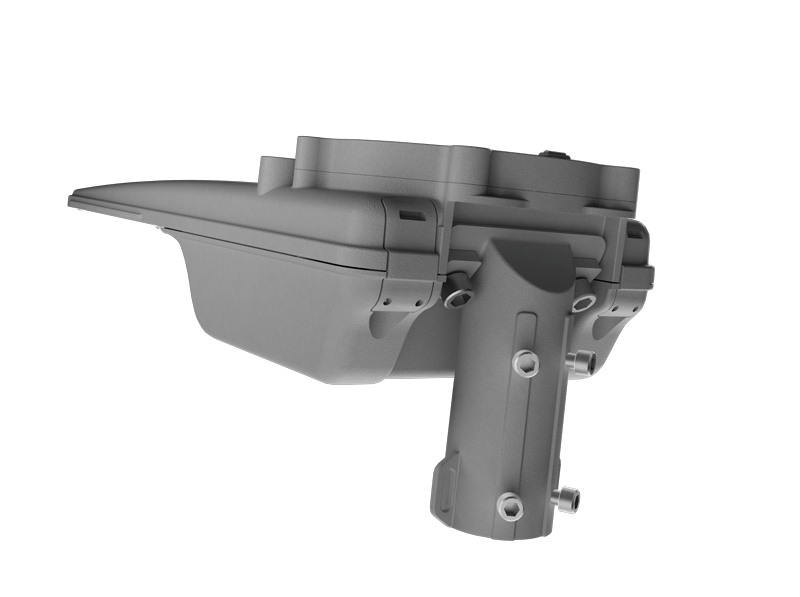

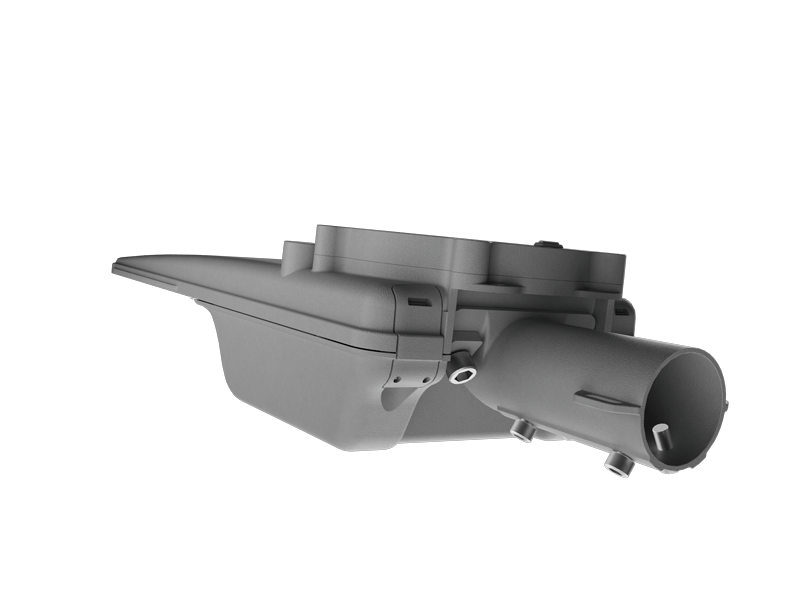

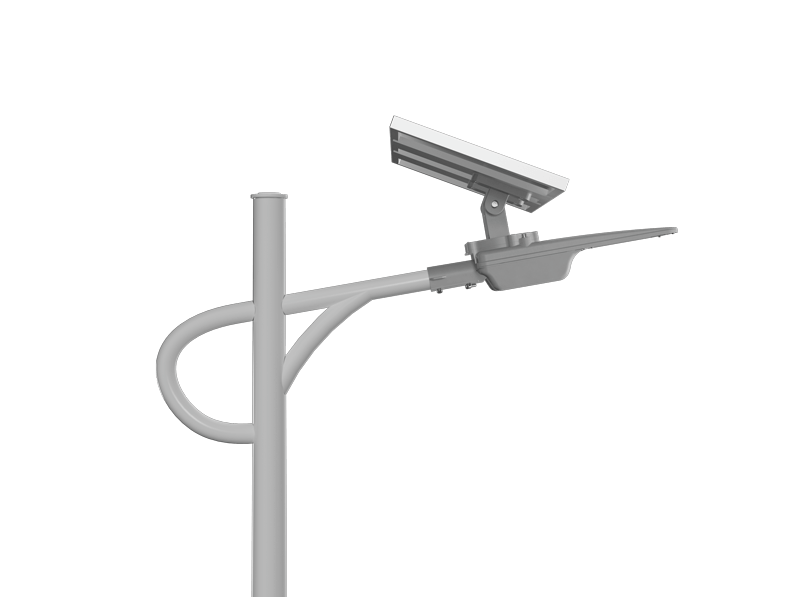

Patented elbow casing connector enable the luminaire to be installed on straight or horizontal poles only by changing direction of the connector. The elevation angle is ±10° adjustable.

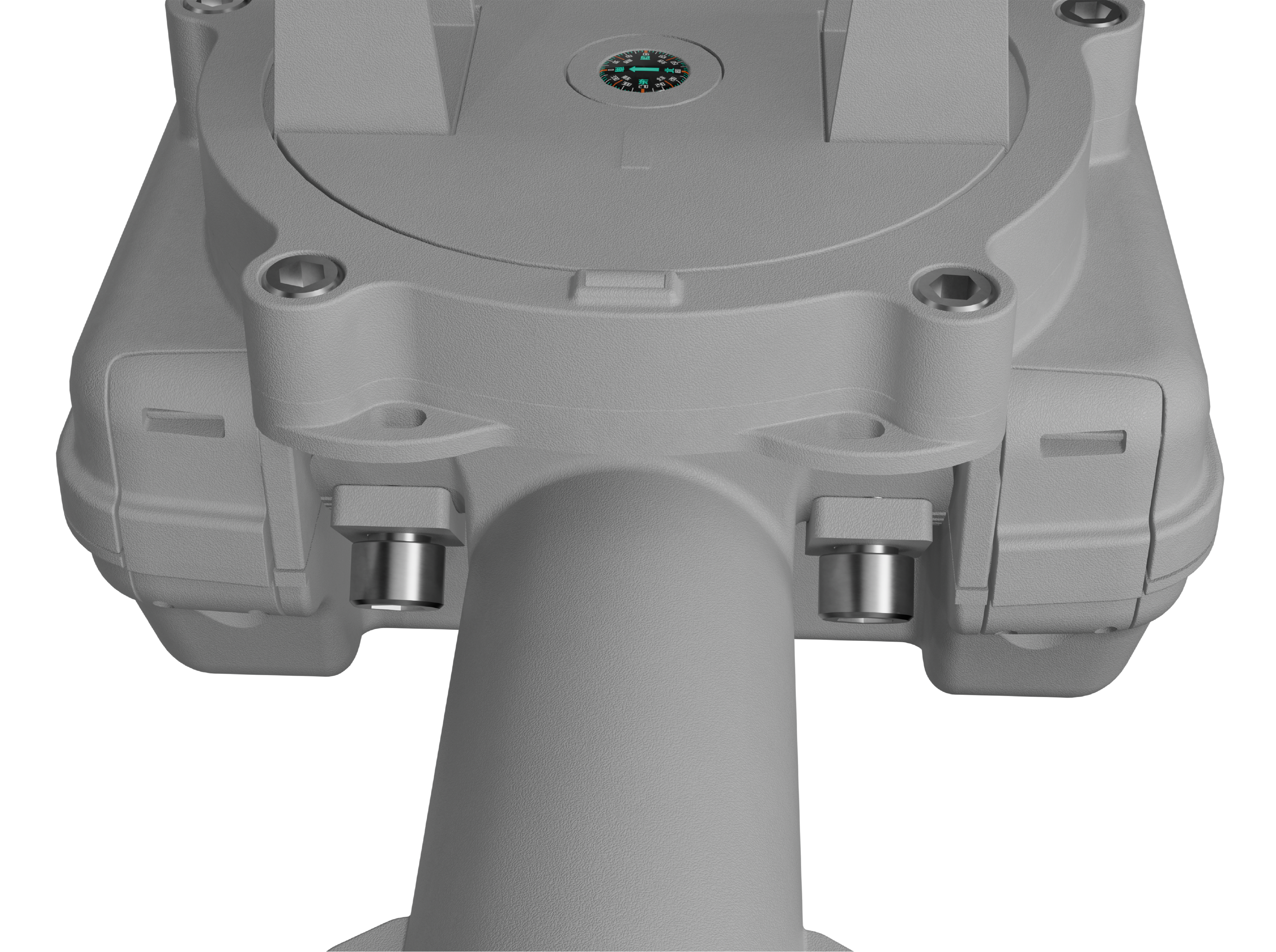

The level and compass on the conjunction base facilitate positioning and angle adjustment of photovoltaic panel.

Quotation
Power Range
20W,40W,60W,80W,100W
Material
Die cast aluminum,tempered glass illuminated surface
Battery
LiFePO4 battery,MPPT charging management
Light source
High-efficiency LEDs, the effect of whole luminaire up to 180-200lm/W.
Protection
Structural waterproof design, IP66, IK08
Control
Auto mode, custom control, microwave control, custom + microwave control
Specification

Item

Type

S02-20

S02-40

S02-60

S02-80

S02-100

nPhotovoltaic panel

Material

High efficiency monocrystalline silicon

Voltage

DC36V

power

40W

80W

120W

150W

200W

Lifespan

20-25 years

Adjustable angle

Horizontal angle 360°, vertical angle 52°

lithium battery

Battery Type

LiFePO4

Specifications

25.6 V16.5AH

25.6V1 8AH

25.6V22AH

25.6V24AH

25.6V30AH

Lifespan

8 years

Solar Controller

MPPT charging management, MCU control;

Luminaire

Power

20W

40W

60W

80W

100W

LEDs

3030 LUMILEDS

LED quantity

64pcs

192pcs

256pcs

288pcs

384pcs

CTT

3000-6500k (default 4000K)

Luminous flux

3600lm

7200lm

10800lm

14400lm

18000lm

Efficiency lm /W

180-200lm/W

CRI

≥70

Beam angle

140*70, (default) 150*80 (optional)

Distribution

bat wing

Lifespan

≥50000H

Sensor

Sensor

Microwave induction, remote control

Detection distance

10-15m

Charging time

5-7 hours

Battery life

Full power

<12 hours

Light control mode

4-5 consecutive rainy days, 12 hours a day

Operating mode

Automatic mode, custom control, microwave control, custom + microwave

Operating temperature

Working temperature

-25℃-+65℃

Storage temperature

-25℃-45℃

Installation suggestions

Installation height

4-5m,6-7m,7-8m,8-10m

Spacing

13-16m,19-23m,27-31m,30-35m

Casing diameter

65mm

Material

Housing: high-strength die-cast aluminum, light-emitting glass

Luminaire size

756*260*157mm

Photovoltaic panel size

(reference)

670*420*25mm

770*670*25mm

1022*670*30mm

1320*570*35mm

1570*710*35mm

Net weight of luminaire

11.42kg

12.41kg

13.5kg

13.6kg

14.52kg

Net weight of Photovoltaic panel

4.8kg

7.56kg

9.2kg

12.58kg

14.85kg

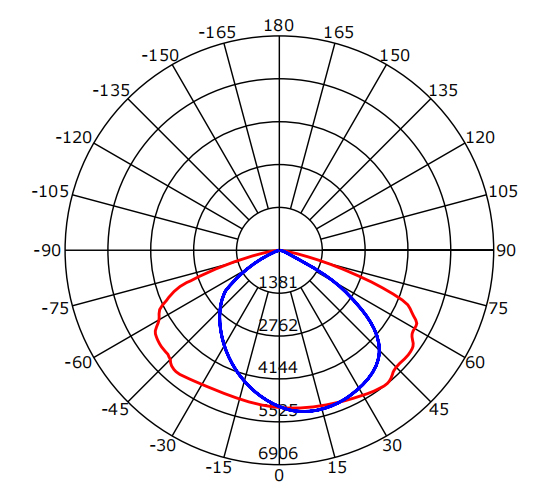

Light Distribution
BEAM ANGLE (50%%)C0-180,C90-270: 143.6 DEG,103.0 DEG
BEAM ANGLE (50%%)C0-180,C90-270: 143.6 DEG,103.0 DEG
C0-180
C90-270

model

color temperature

angle

Luminous   pass( lm )

Light   efficiency ( lm /W)

Center   light intensity(cd)

S02-20

4000K

140*70

3600

180-200

1272

S02-40

4000K

140*70

7200

180-200

2543

S02-60

4000K

140*70

10800

180-200

3815

S02-80

4000K

140*70

14400

180-200

5086

S02-100

4000K

140*70

18000

180-200

6358

Dimensions
S02尺寸图01
S02尺寸图02
S02尺寸图04
S02尺寸图03

model

luminaire   size (mm)

     photovoltaic panel size (mm)

L

W

H

Inner   diameter of casing

Power

L1

W1

H1

S02-20

756

260

157

Φ64

40W

670

620

25

S02-40

80W

770

670

25

S02-60

120W

1022

670

30

S02-80

150W

1320

670

35

S02-100

200W

1570

710

35


×
