Intelligent Grid-Powered Street Lighting Solution for Urban & Roadway Applications
The R06 LED Street Light is a high-performance, grid-powered lighting solution designed for urban roads, highways, industrial zones, and public spaces. Featuring advanced optical design, intelligent control systems, and a robust structural build, the R06 delivers efficient, reliable, and long-lasting illumination for demanding outdoor environments.
With high luminous efficiency up to 200 lm/W, flexible installation options, and smart control capabilities, the R06 is an ideal choice for modern roadway lighting projects.
Equipped with high-precision anti-glare lenses to ensure soft and uniform light distribution, with precise beam shaping design to meet the lighting requirements of different environments.
Supports Multiple Dimming Methods: 0/1-10V dimming, time control, and photo-sensing control, allowing dynamic brightness adjustment based on environmental needs. Integrated with IoT control functionality, enabling remote management and intelligent operation.
Independent design of driver module and light source module, overcoming the challenges of optoelectronic heat dissipation conflicts.
Built-in overvoltage, short circuit, lightning protection and other protections, high efficiency, more stable, smarter and more.
Sleek and minimalist.
Its streamlined design embodies a modern aesthetic of simplicity and crisp sophistication.

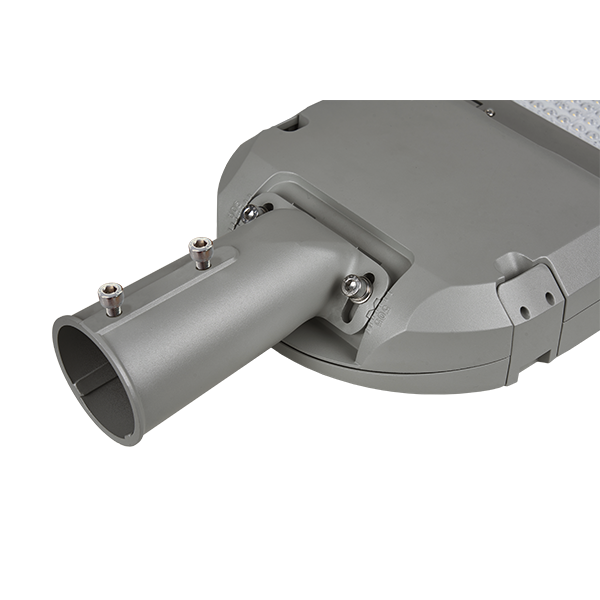

Connecting parts use die-cast aluminum fittings, standing up to rain, snow and dust.
Extended sleeves and stainless steel screws ensure a firmer, more secure lock.

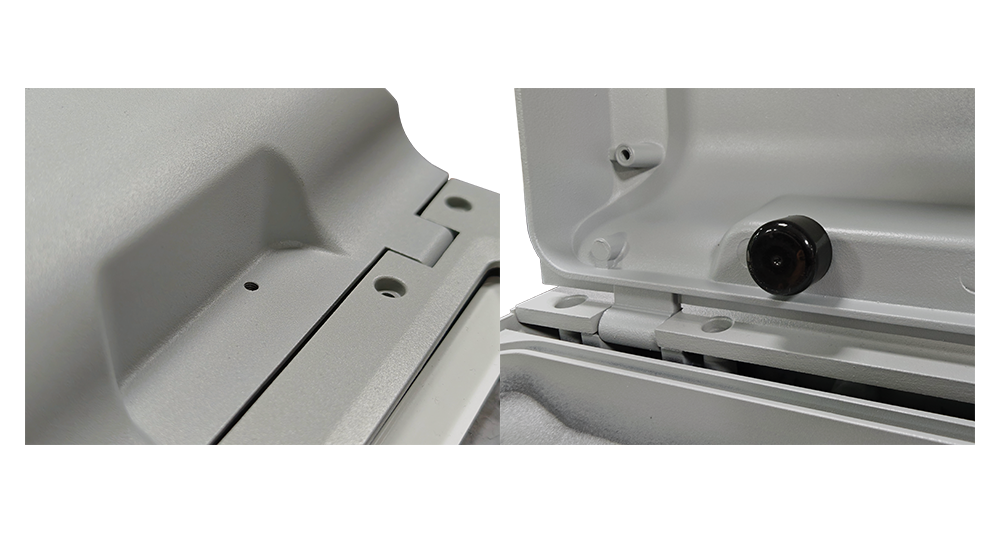

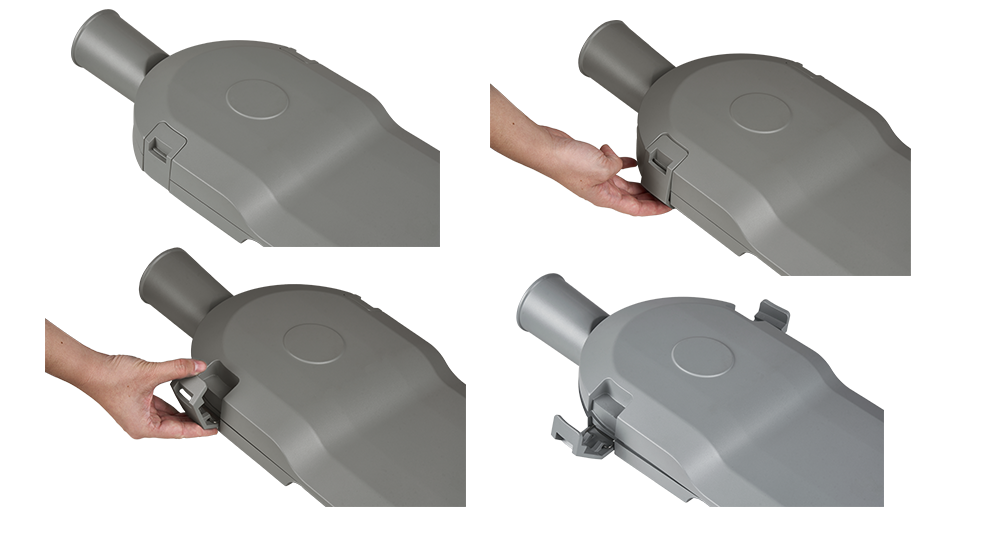

The snap-on installation design allows for easy disassembly and maintenance without tools.

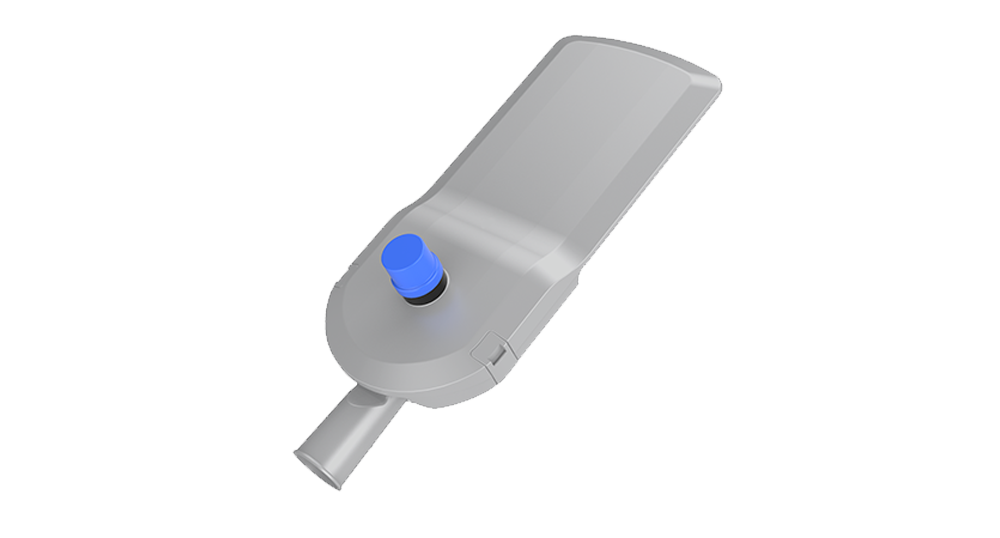

Built-in breathing valve design keeps the air pressure inside and outside the lamp balanced, extending the service life of the lamp.

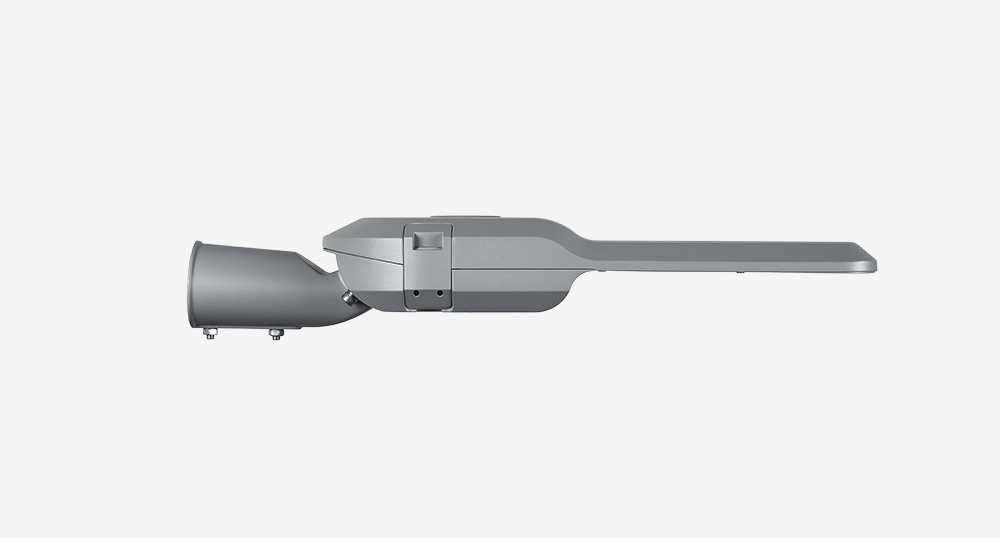

To switch between straight and horizontal insertion, you only need to simply change the direction of the connector.

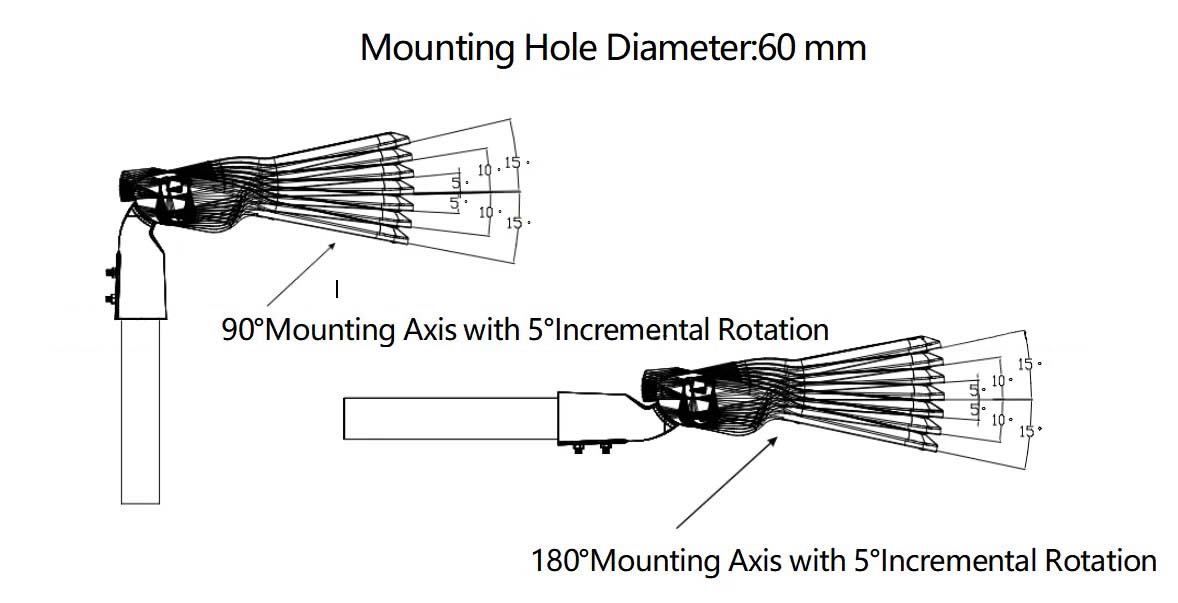

The installation axis angle can be adjusted up to 90°/180° to adapt to a variety of application scenarios.

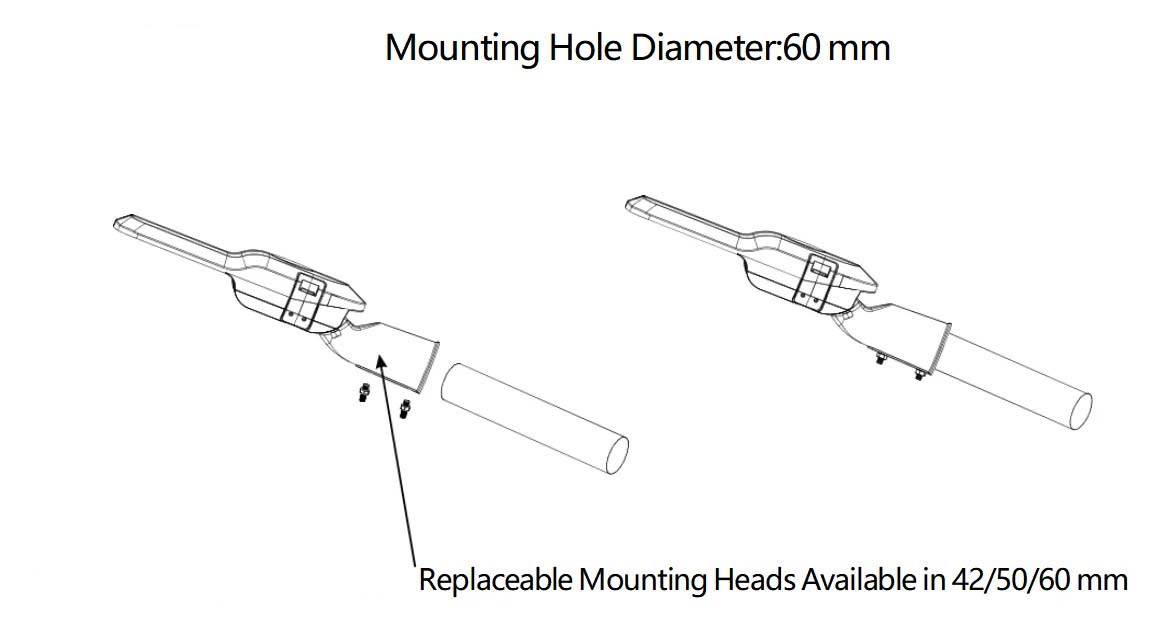

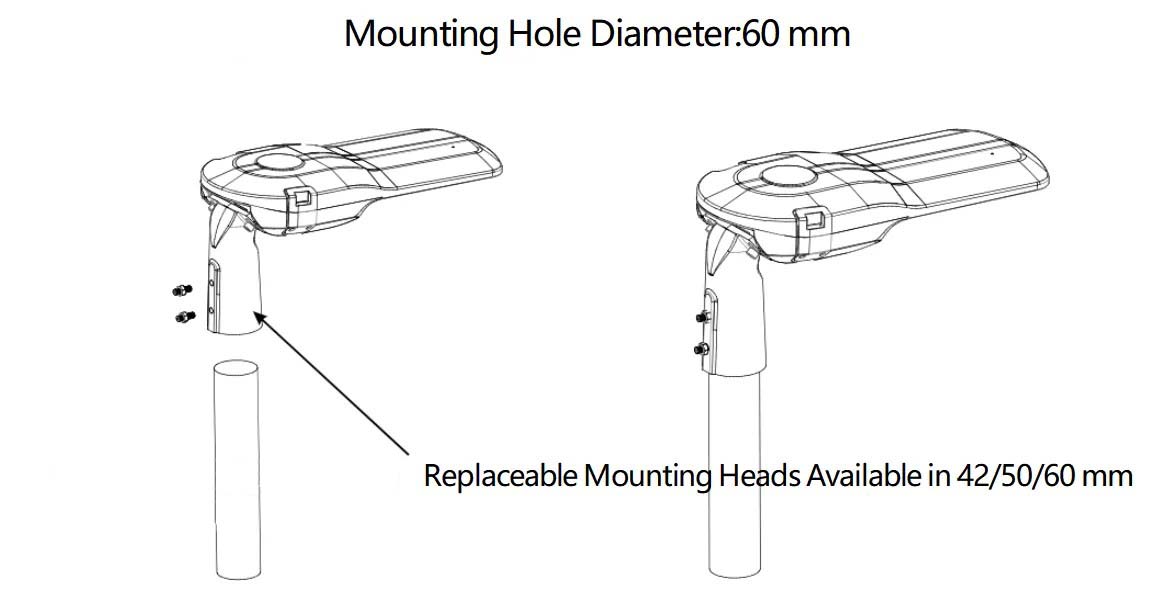

Interchangeable 42/50/60mm Mounting Heads
Interchangeable 42/50/60mm Mounting Heads
Tempered Explosion-proof Glass Cover, High Light Transmission
The glass cover features high transparency, allowing for brighter and clearer lighting. It offers excellent resistance to heat and cold, strong impact resistance, and enhanced durability for greater safety.

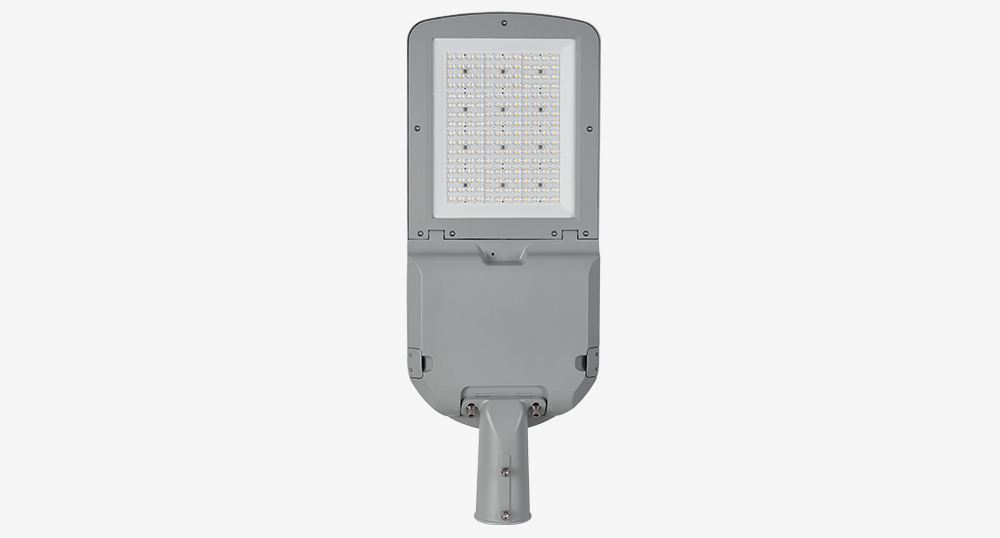

High-Quality LED Chips
Utilizes high-brightness pure white LED chips arranged in a uniform array, ensuring more even light distribution.
High efficacy LED chips
Full light efficacy
150~200lm/W
The protection level reaches IP66, which is waterproof and dustproof; the IK06 impact resistance standard can adapt to harsh environments, and the installation head diameter can be replaced to meet the needs of various scenarios.
Luminous Distribution Curve

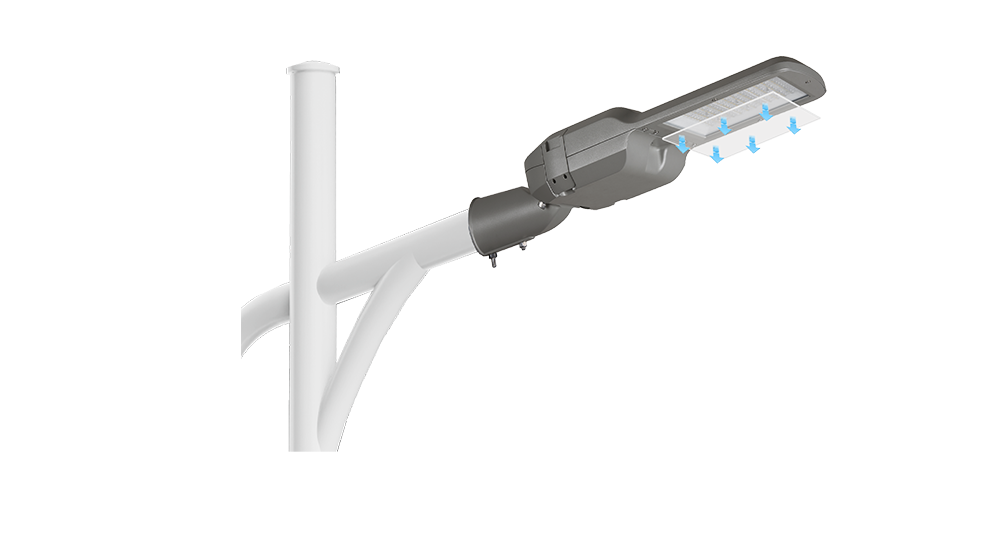

High-efficiency LED light source, with a luminous efficiency of up to 200 lm/W,significantly reduces energy consumption and improves lighting effects.
| Model | Color Temperature | Beam Angle | Luminous Flux (lm) | Luminous Efficacy (lm/W) |
R06-50 | 4000K | Type III/IV | 4200-8400 | 150lm/W--200lm/W |
R06-75 | 4000K | Type III/IV | 9800-11200 | 150lm/W--200lm/W |
R06-100 | 4000K | Type III/IV | 12600-16800 | 150lm/W--200lm/W |
R06-150 | 4000K | Type III/IV | 18200-25200 | 150lm/W--200lm/W |
| R06-200 | 4000K | Type III/IV | 26600-39200 | 150lm/W--200lm/W |
Energy Distribution Curve
Color Rendering Index (CRI): Ra=84.2 AvgR=77.7 TM30: Rf=84 Rg=95 R1=83 R2=91 R3=96 R4=82 R5=82 R6=87 R7=86 R8=65 R9=13 R10=79 R11=82 R12=59 R13=85 R14=98 R15=77
To switch between straight and horizontal insertion, you only need to simply change the direction of the connector.

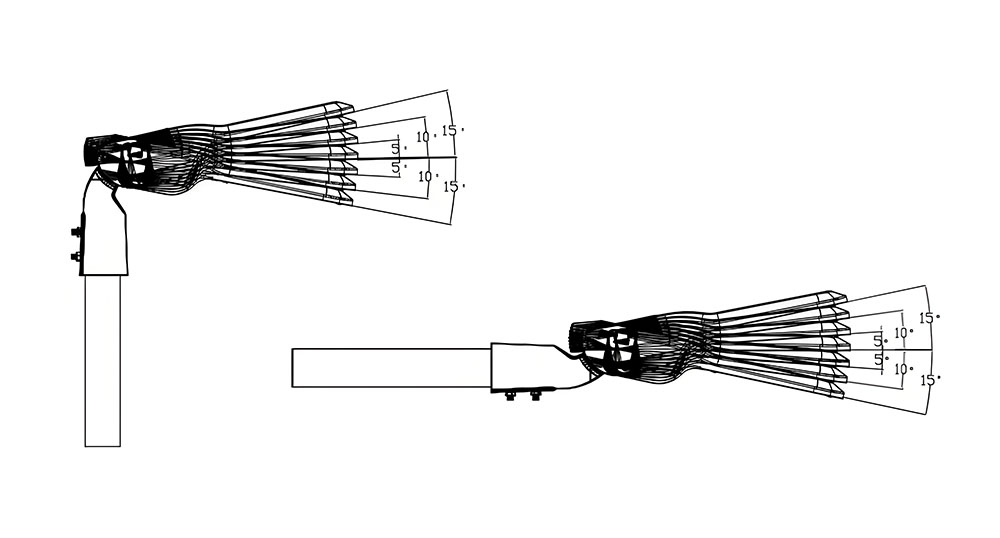

The installation axis angle can be adjusted up to 90°/180° to adapt to a variety of application scenarios.
Horizontal Bar Rendering
Vertical Bar Rendering
Convenient Installation Experience
Adjustable Vertical Angle of Installation Axis (±15°)
| Model | R06-50 | R06-75 | R06-100 | R06-150 | R06-200 |
| Power | 50W | 75W | 100W | 150W | 200W |
| Voltage | 100-277V， 50/60 Hz | ||||
| Number of LEDs | 64PCS | 96PCS | 144PCS | 192PCS | 320PCS |
LED Chip Specification | SMD 3030 | ||||
Power Facto | ≥ 0.95 | ||||
Color Temperatur | 3000-6000K | ||||
Color Toleranc | <5 | ||||
Lamp Beam Angle | 70° x 140° | ||||
Total Harmonic Distortion (THD) | ≤15 | ||||
Color Rendering Index (CRI) | Ra≥70 | ||||
Control Unit | 0/1-10V Dimming, Time Control, Light Sensing, IoT Control (Optional) | ||||
| Luminous Flux | 4200-8400 | 9800-11200 | 12600-16800 | 18200-25200 | 26600-39200 |
Luminous Efficacy (lm/W) | 150lm/W--200lm/W | ||||
| Light Spot Type | Batwing | ||||
| Service Life | ≥50000H | ||||
| Protection Rating | IP66 | ||||
Impact Resistance | IK06 | ||||
Housing Materia | High-strength die-cast aluminum housing, glass light-emitting surface. | ||||
Operating Temperature Range | -40℃~+50℃ | ||||
| Storage Temperature Range | -45℃~+75℃ | ||||
| Net Weight (Without Light Sensor) (KG) | 3.6 | 4.0 | 4.8 | 5.0 | 6.1 |
| Net Weight (With Light Sensor) (KG) | 4.0 | 4.4 | 5.2 | 5.4 | 6.5 |
| Housing Dimensions (Without Light Sensor) (mm) | 493*174*10 | 562*200*108 | 607*240*108 | 680*260*108 | 766*300*108 |
| Housing Dimensions (With Light Sensor) (mm) | 493*174*181 | 562*200*181 | 607*240*181 | 680*260*18 | 766*300*181 |
