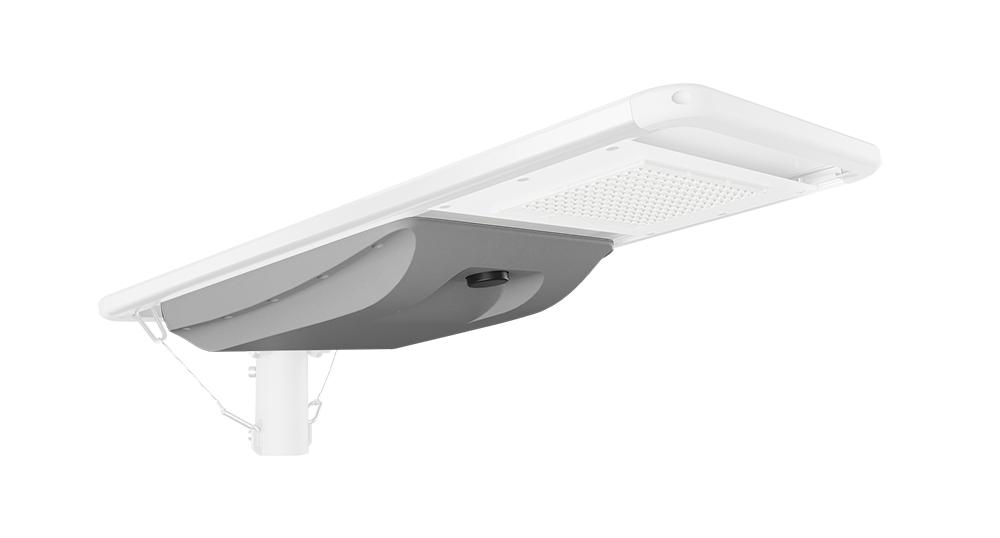

The S03 Integrated Solar Street Light is an all-in-one lighting solution designed for fast deployment, reliable performance, and simplified maintenance. Unlike split-type systems, S03 integrates the solar panel, LED light source, battery, and controller into a single compact unit, significantly reducing installation complexity and overall project cost.
With its streamlined structure and optimized internal layout, S03 ensures efficient energy conversion and stable lighting output, making it ideal for projects that require quick installation and minimal technical intervention.
Equipped with high-efficiency monocrystalline solar panels, long-life LiFePO4 batteries, and an intelligent control system, the S03 provides consistent illumination even under variable weather conditions. Its integrated design also enhances durability by minimizing external wiring and potential failure points.
The S03 is widely used in rural roads, residential areas, pathways, parks, and small to medium-scale outdoor lighting projects, offering a practical balance between performance, convenience, and cost-effectiveness.
Fast charging
Low energy consumption
0 electricity cost

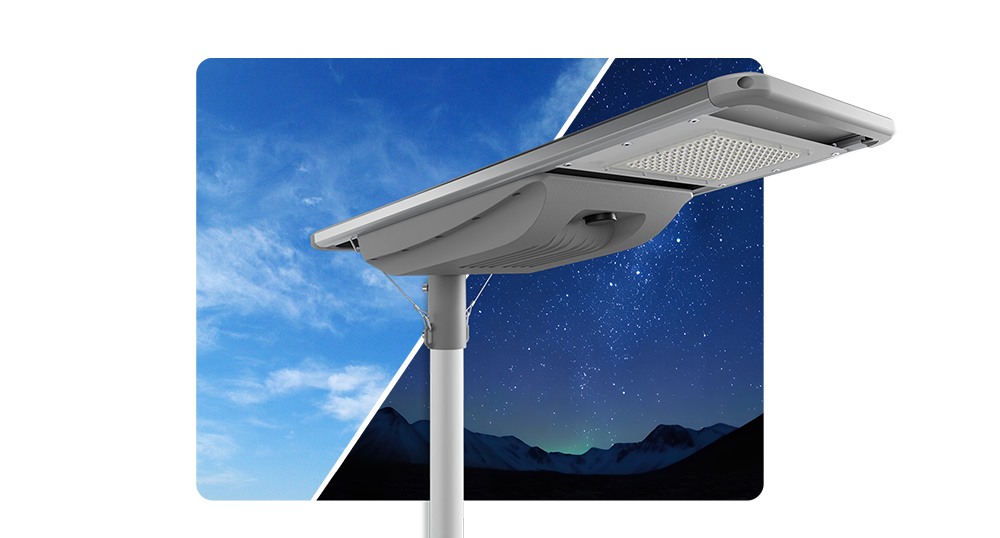

Automatically charges during the day and turn on automatically at night.
Keep charging on sunny / cloudy days powered on for 365 days.

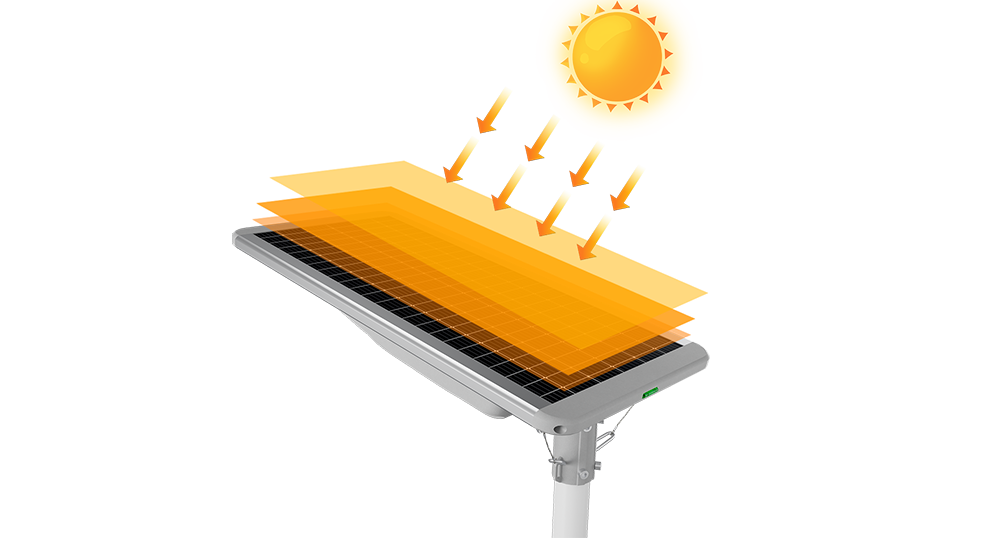

Compared with polycrystalline silicon PV panels,
charge faster and maximize the use of solar energy, has longer lifespan.
Small volume
Light weight
Low wind resistance

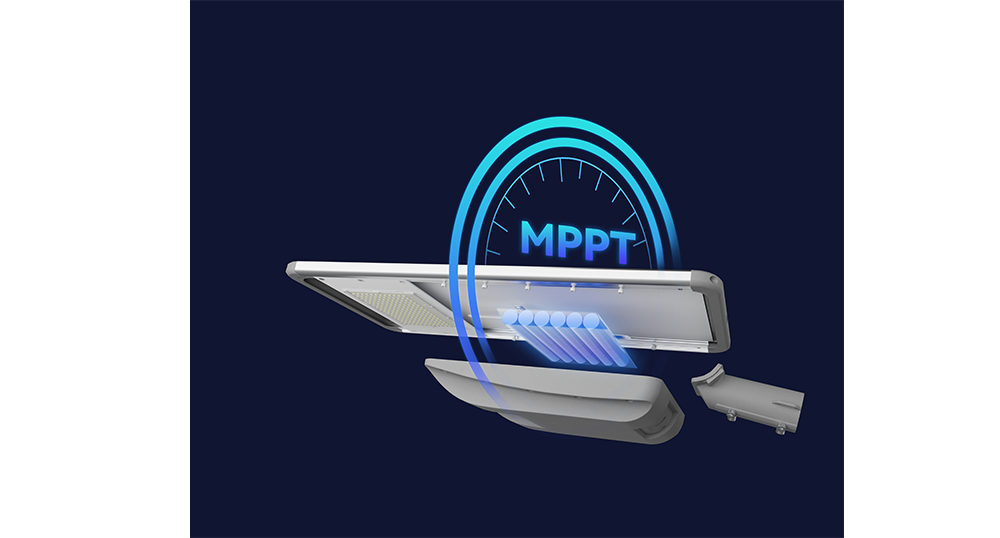

MPPT charging management
Ensure that the PV panels charge the battery at maximum power at all times, and maximize the conversion of light energy.
LiFePO4 battery
32700 cylindrical LiFePO4 battery, cycle times >2000 ,
Safe, small self-discharge rate, no memory effect.
LiFePO4 battery with temperature management design
The electrical box is located directly under the photovoltaic panel, effectively preventing sun exposure and overheating.
The battery's temperature management design protects the battery in extremely cold and hot environments.
Explosion-proof PC cover with high light transmittance
The PC cover has high transparency, making the lights brighter and clearer, has excellent heat and cold resistance, impact resistance, is durable and safer.
High quality LEDs
Using high-bright white LEDs, and optimized arrangement ensure more even light.
Whole luminaire efficacy 160~180lm/W

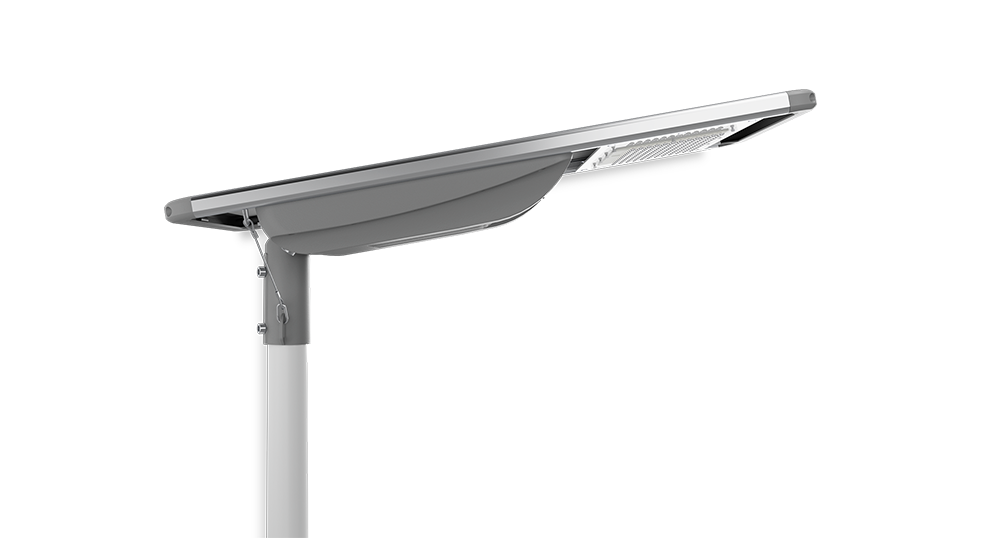

Minimalist and capable
It adopts a streamlined design, showing a minimalist and capable modern aesthetic style;
The connecting parts are made of 304 stainless steel, which is resistant to rain, snow and sand.

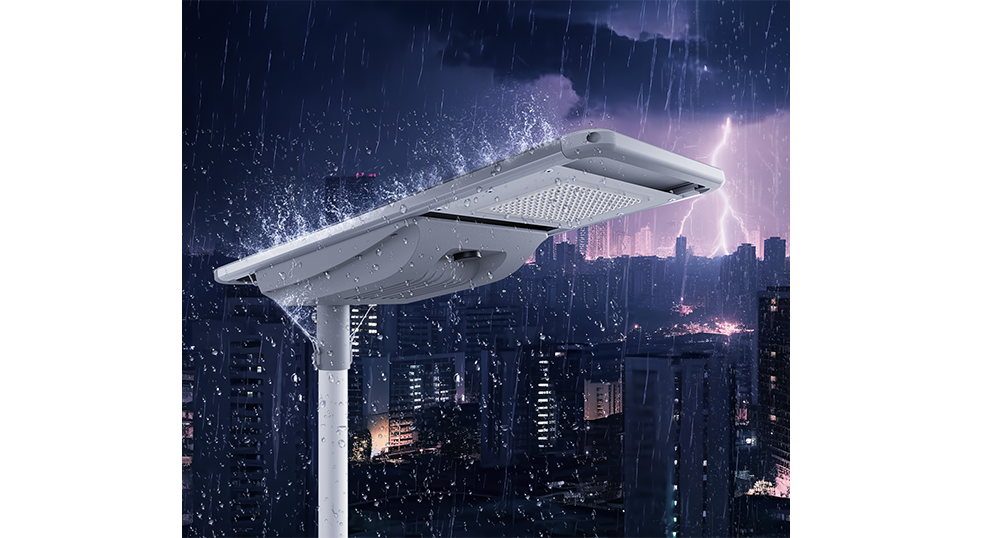

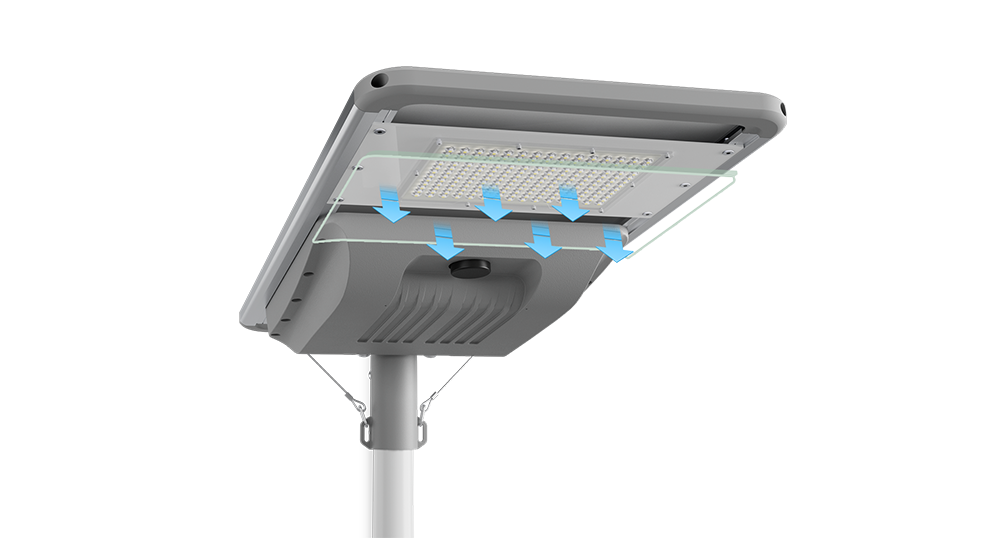

Multiple seals to protect against stormy and snowy weather
Protection level
IP65 IK08
Using dual waterproof technology of waterproof silicone sealing ring + waterproof silicone rubber. Effectively cope with heavy rain, snow, lightning and other weather changes.
Intelligent remote control
Remote control by one-touch timer switch with multiple time slots
Automatic mode (up to 12 hours)
Manual mode ( 3 hours, 5 hours, 8 hours)
Optimized lighting mode
Automatic lighting mode is defaulted. Timing mode can be preset according to the lighting needs at different times throughout the day, to ensure efficient use of power and extend battery life .

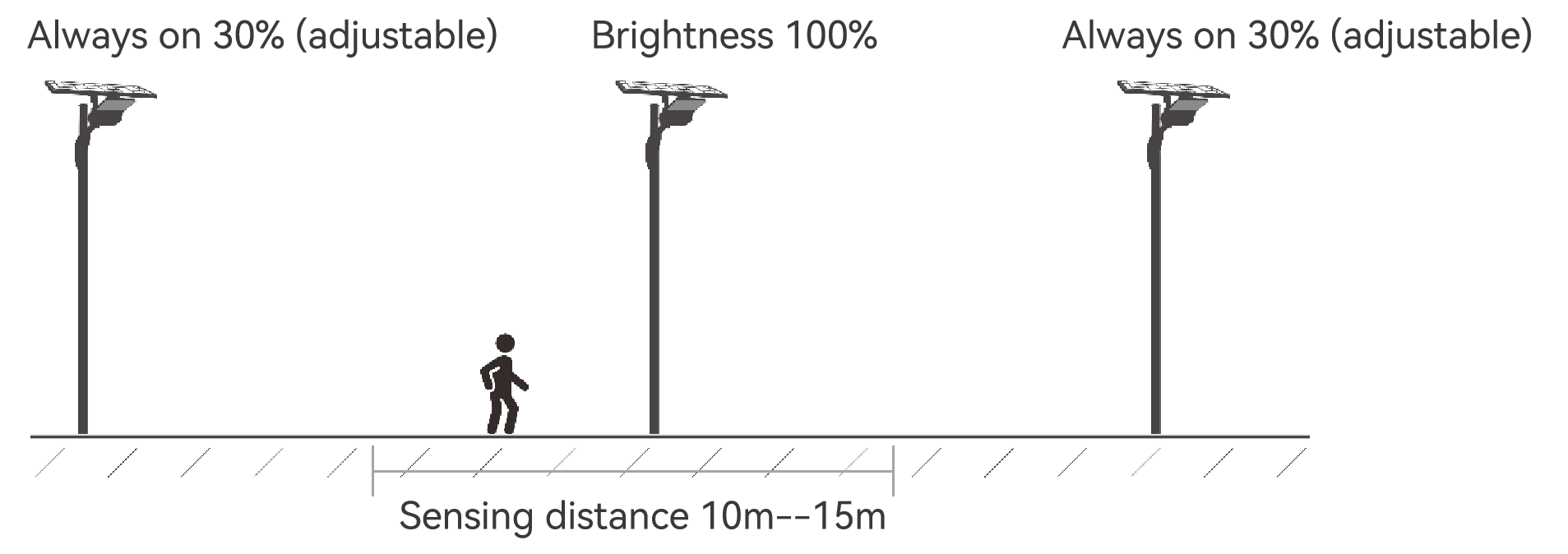

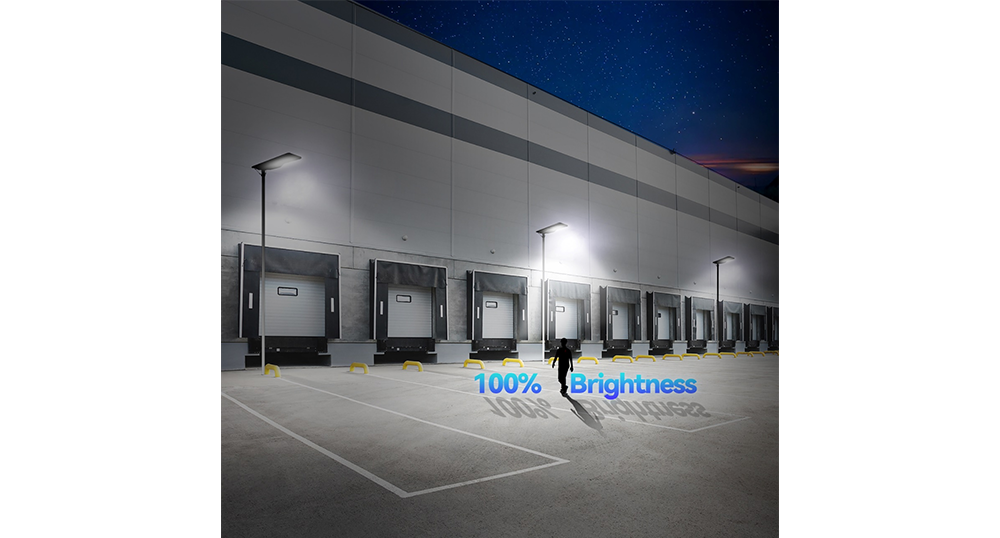

Intelligent dimming, safe and energy saving
The MW sensing function can be set. When a person is detective, the light automatically adjust to 100% full brightness. When no one is detected, it automatically adjusts to normal brightness level.
Diagram of detection range - microwave induction (Unit: m )

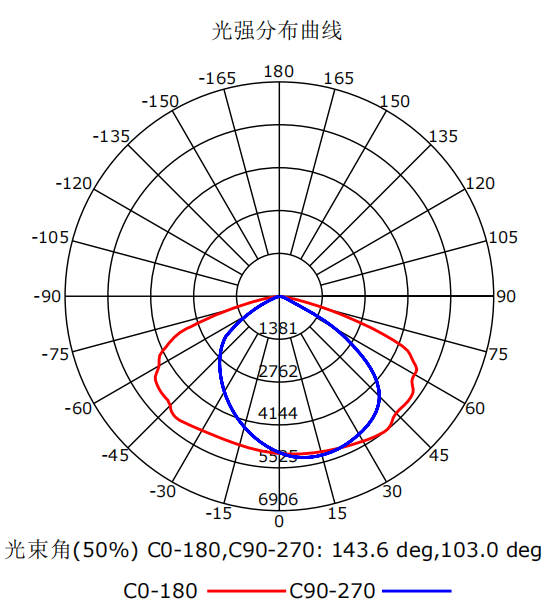

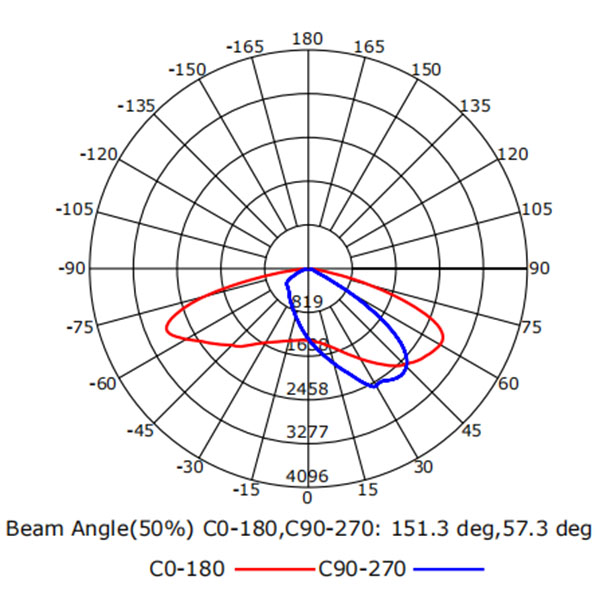

Light distribution
| Model | CCT | Angle | Lumen flux(lm/W) | Light efficiency (lm/W) | Center light intensity(cd) |
S03-20 | 4000K | Type III/IV | 3494 | 174.7 | 1016 |
S03-30 | 4000K | Type III/IV | 5298 | 176.6 | 1540 |
S03-40 | 4000K | Type III/IV | 7105 | 177.6 | 2113 |
S03-50 | 4000K | Type III/IV | 8790 | 175.8 | 2601 |
S03-60 | 4000K | Type III/IV | 10647 | 177.4 | 3079 |

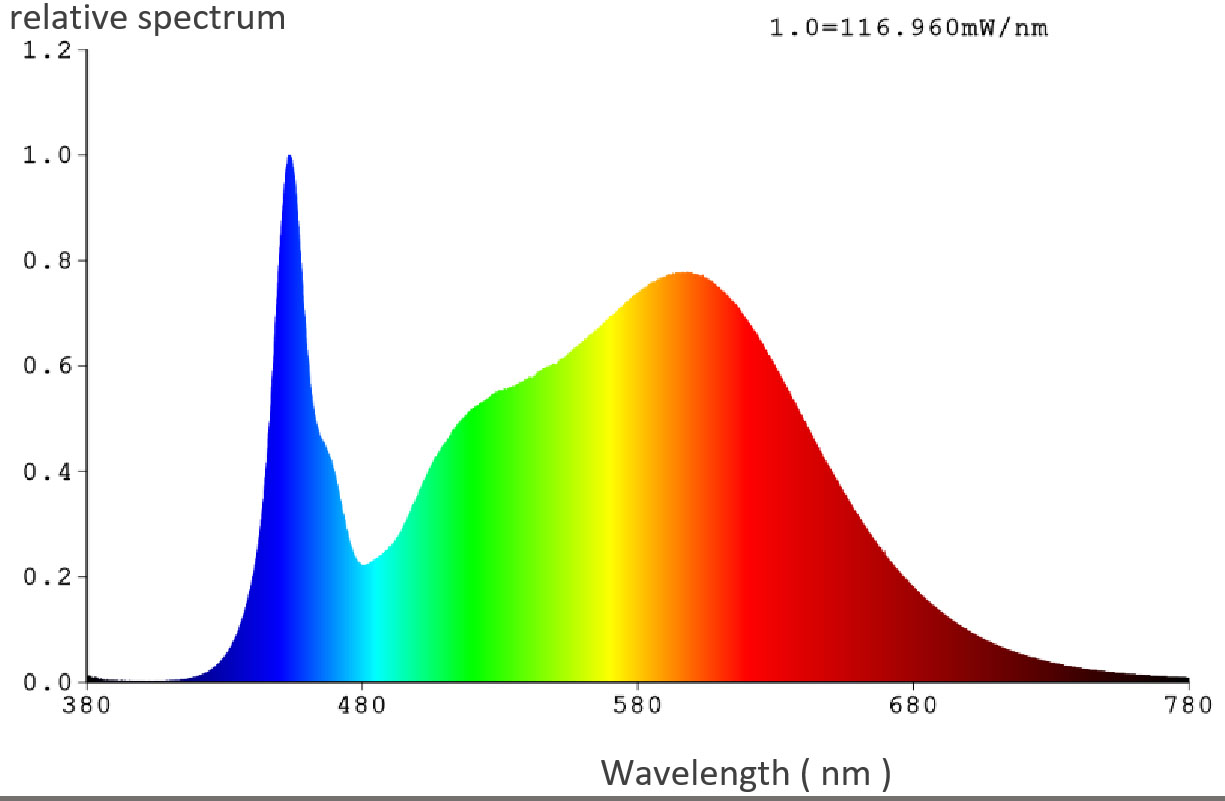

Energy distribution curve
Color rendering index: Ra=84.2 AvgR =77.7 TM30 : Rf =84 Rg =95 R1=83 R2=91 R3=96 R4=82 R5=82 R6=87 R7=86 R8=65 R9=13 R10=79 R11= 82 R12=59 R13=85 R14=98 R15=77

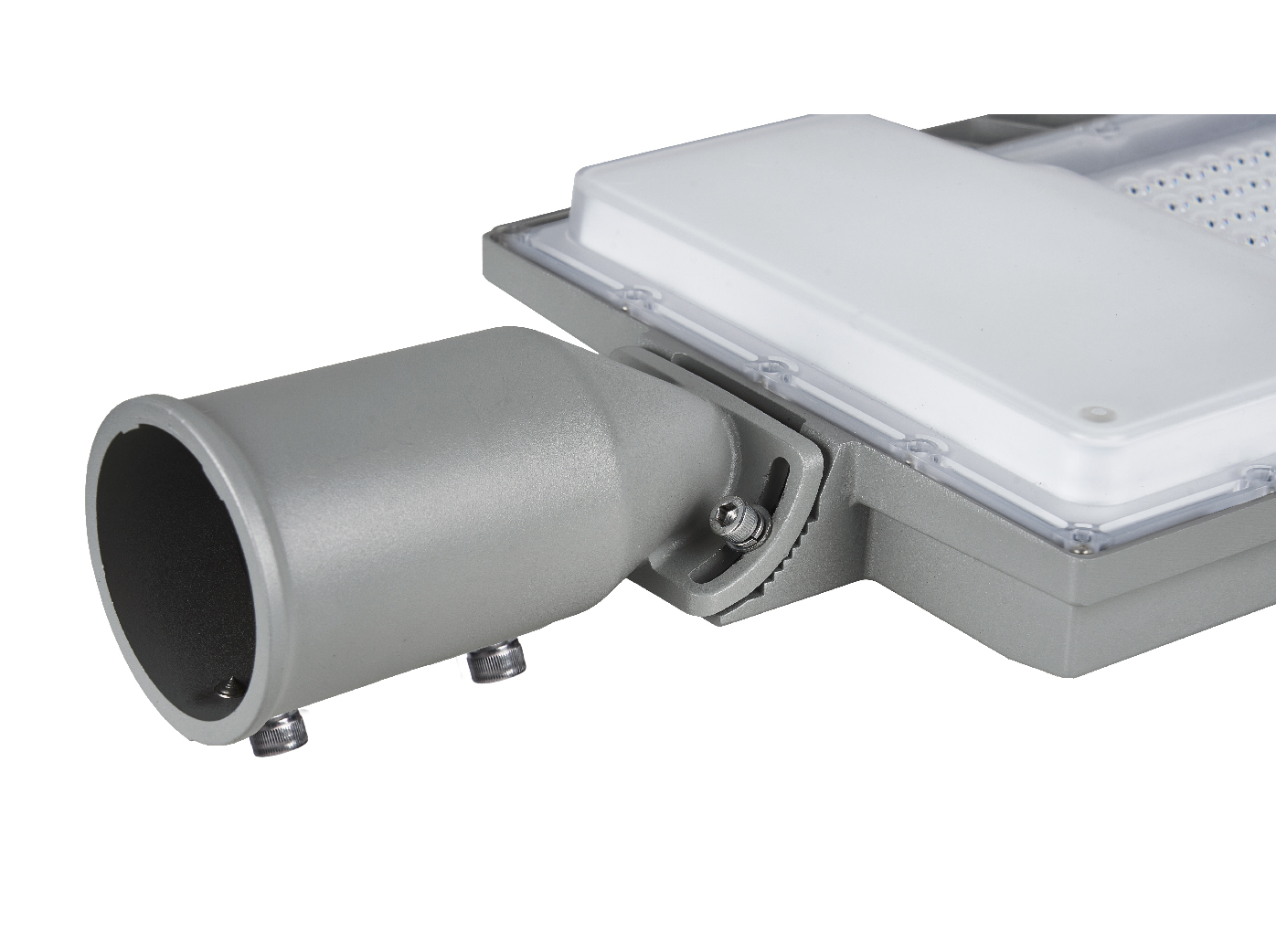

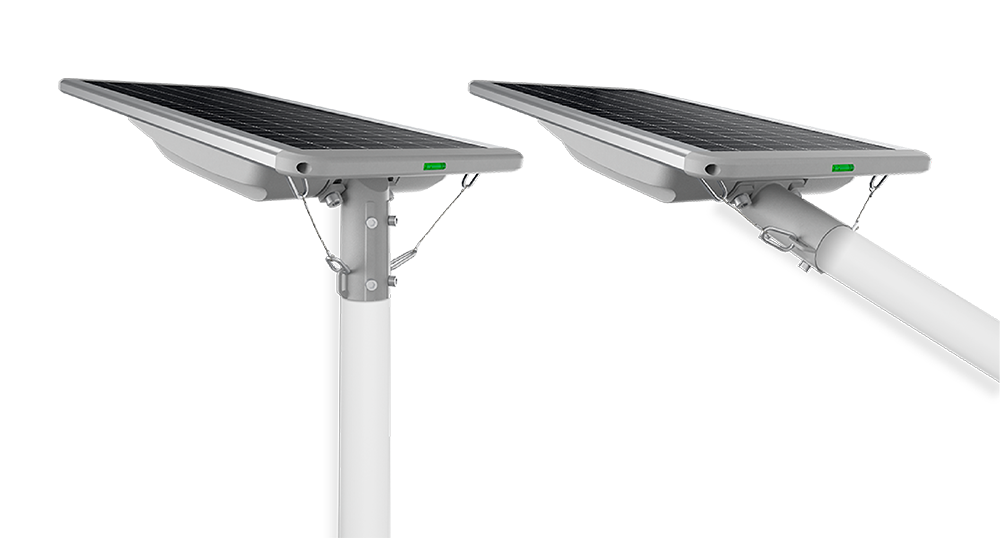

Extended elbow casing
Switch between straight and horizontal plug by simply changing the direction of the connector.
The extended casing pipe is tightened with screws on 4 sides for more stability
Installation height recommended
Applicable height
Applicable places
Double safety rope design
Two safety ropes are buckled on the housing and lamp arm to ensure stability.

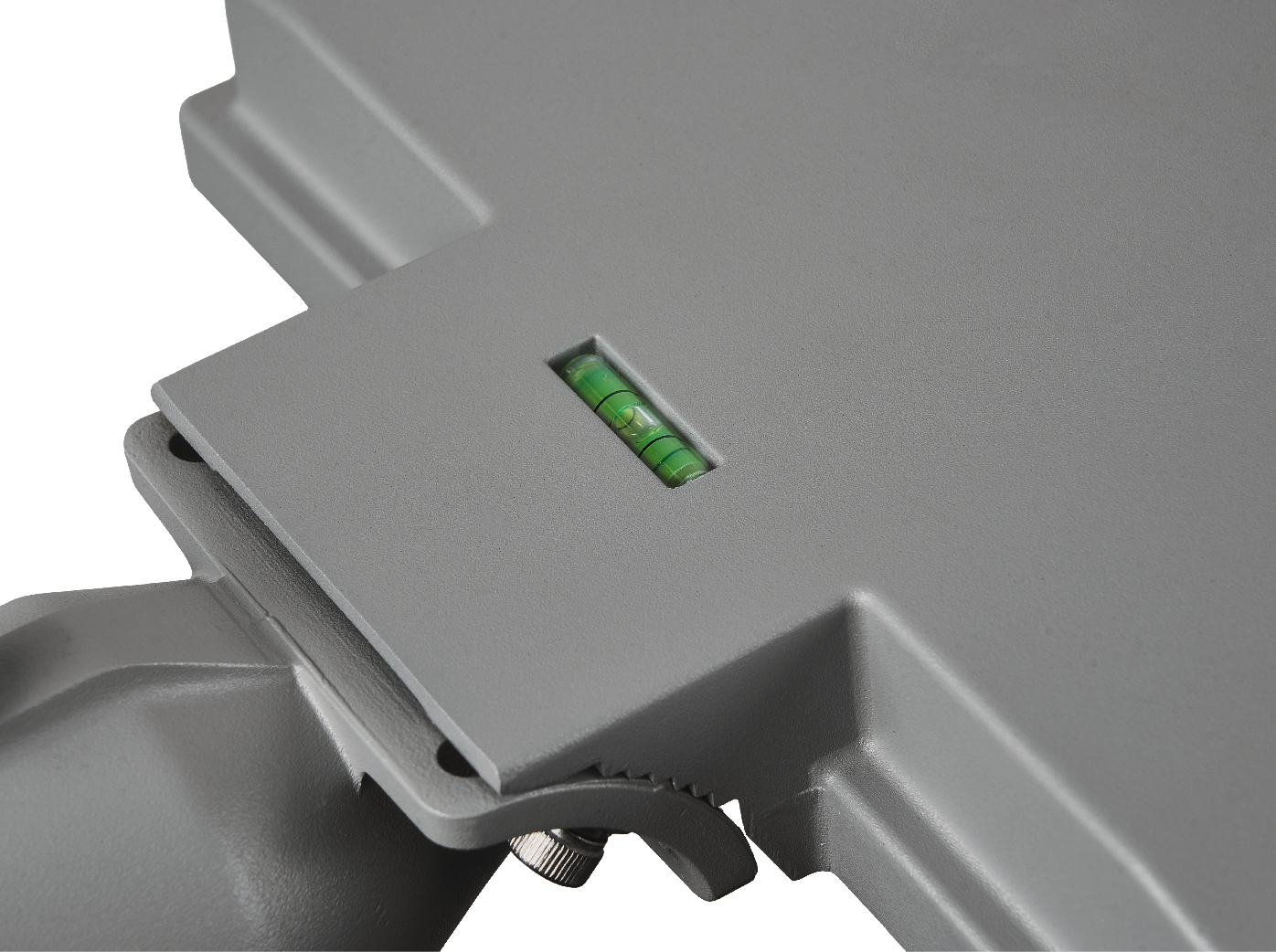

Equipped with a level to facilitate adjustment

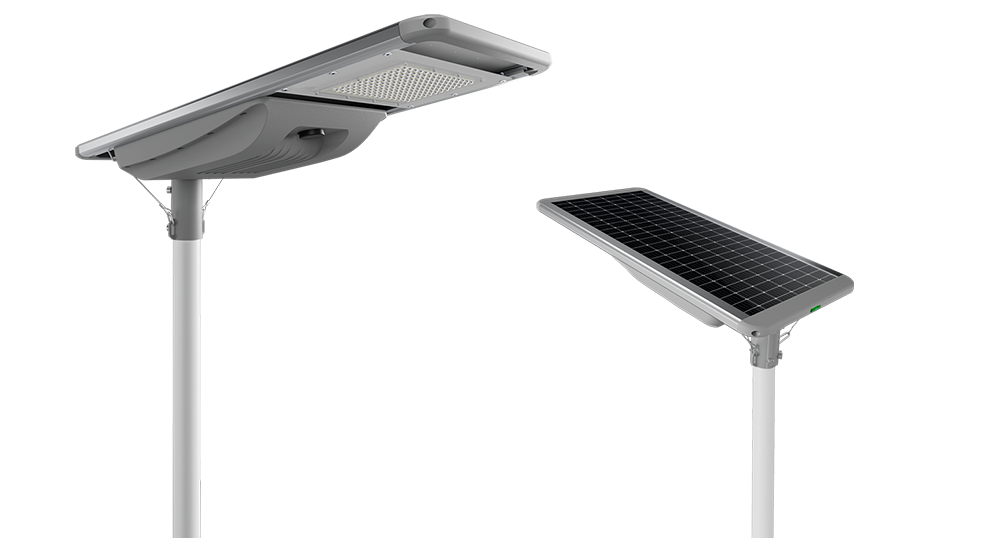

Category | Model | |||||
Solar panel | Type | High efficiency monocrystalline silicon | ||||
Voltage | DC18V | |||||
Power | 40W | 55W | 70W | 85W | 100W | |
Photovoltaic panel life | 20-25 years | |||||
Lithium battery | Battery Type | LiFePO4 | ||||
Battery specifications | 12.8V12AH | 12.8V18AH | 12.8V24AH | 12.8V30AH | 12.8V36AH | |
Battery Life | 8 years | |||||
Solar Controller | MPPT charging management, MCU control | |||||
Luminaire | Power | 20W | 30W | 40W | 50W | 60W |
LED brand | LUMILEDS 3030 | |||||
Number of LEDs | 120pcs | 120pcs | 180pcs | 240pcs | 240pcs | |
Color temperature | 3000-6500K (default 4000K) | |||||
Luminous flu | 3600lm | 5400lm | 6800lm | 8000lm | 9600lm | |
Light efficiency lm/W | 160-180lm/W | |||||
CRI | ≥ 70 (Ra80 optional) | |||||
Light distribution | Type III/IV/V | |||||
Spot type | Bat wing | |||||
Service life | ≥ 50000H | |||||
Sensor | Sensor | Light control, Microwave sensing control; | ||||
Sensing distance | 10m | |||||
Charging time | Sunny 5-7 hours | |||||
Battery life | Full power | 7.5 hours | ||||
Light control mode | 2-3 consecutive rainy days, 12 hours a day | |||||
Operating mode | Automatic mode, Custom control, Microwave control | |||||
Operating temperature | Operating temperature | -20 ℃~+45 ℃ | ||||
Storage temperature | -20 ℃ ~+50℃ | |||||
Installation reference | Installation height | 4-5m | 6-7m | 7-8m | 8-10m | 8-10m |
Installation distance | 13-16m | 16-19m | 19-23m | 23-27m | 27-31m | |
Casing inner diameter | Φ 64mm | |||||
Lamp body material | Lamp body: high-strength die-cast aluminum , light-emitting surface PC lens | |||||
Luminaire dimensions (without sleeve) | 785x450x102mm | 825x450x102mm | 1015x450x102mm | 1195x450x102mm | 1380x450x102mm | |
Lamp packaging size | 81.5x15x50.5cm | 85.5x15x50.5cm | 104.5x15x50.5cm | 122.5x15x50.5cm | 141x15x50.5cm | |
Net weight of lamps | 10.9kg | 11.6kg | 13.5kg | 15.1kg | 16.7kg | |
Gross weight of lamps | 12.2kg | 12.8kg | 14.6kg | 16.9kg | 18.7kg | |
