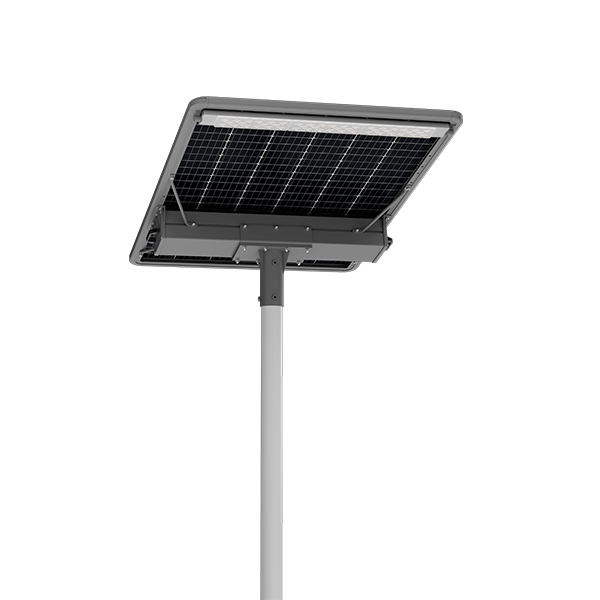

S07 Solar Street Light Product 03

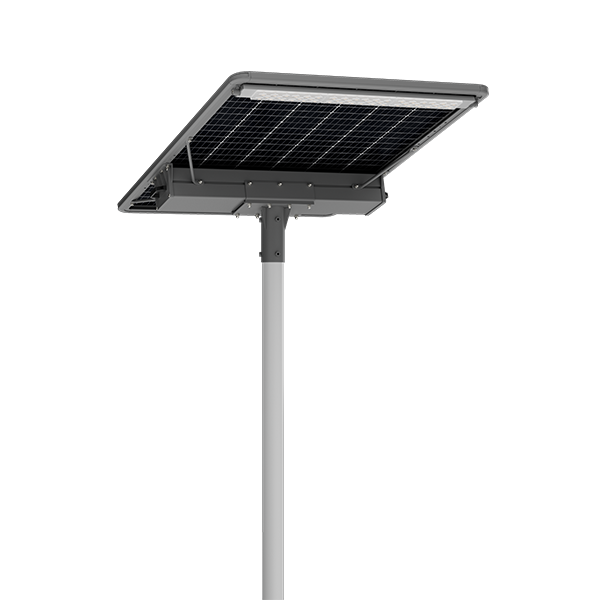

S07 Solar Street Light Product 04
S07 Solar Street Light Product 05
S07 Solar Street Light Product 02
S07 Solar Street Light Product 01
S07 Solar Street Light Product 03
S07 Solar Street Light Product 04
S07 Solar Street Light Product 05

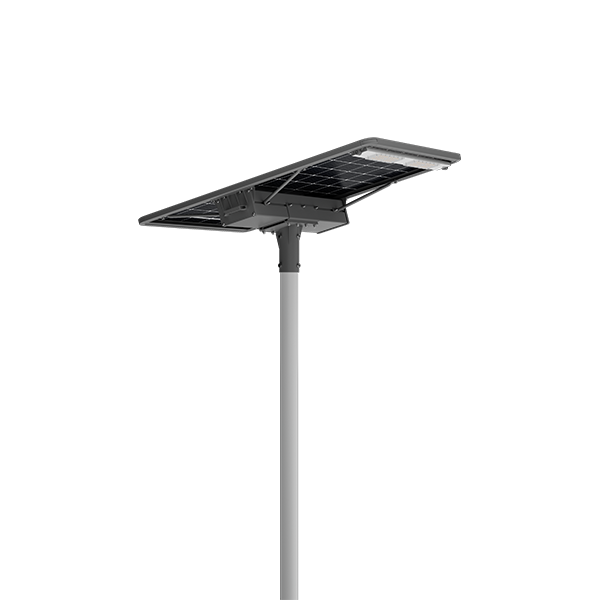

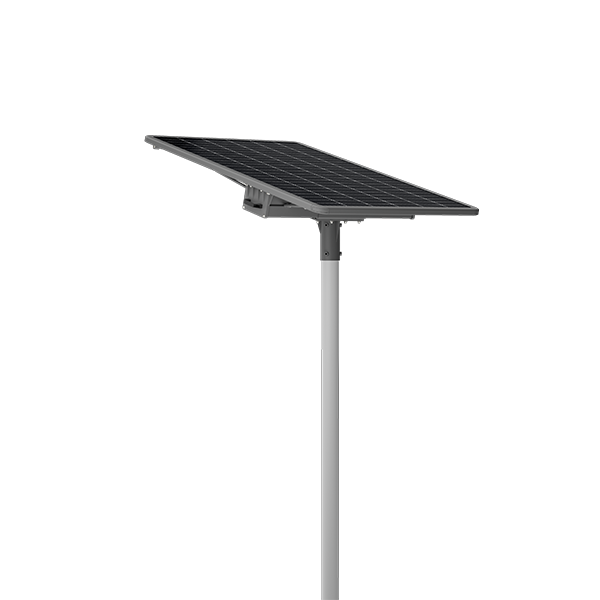

S07 integrated solar street light

The S07 series is the latest high-performance integrated solar street light developed by hipo lighting, providing an effective solution for lighting harsh road environments. It can achieve a maximum power of 150 watts and a luminous flux of up to 30000 lumens. Adopting advanced optical light distribution design to achieve light distribution effects that meet road safety lighting standards. The lamp is equipped with a 300 watt high-efficiency photovoltaic panel and a large capacity energy storage battery with a capacity of 3.6 kWh, which can ensure the continuous and stable operation of the lamp even in continuous rainy weather.

Built to endure complex environments, the rugged IP67-rated lamp body complies with 3G vibration standards and withstands Category 14 typhoons, making it the ultimate durable solution for polar, high-humidity, and extreme weather infrastructures.

Get Quote

Details

High Brightness and Energy Saving


The independent modular design delivers both superior heat dissipation and highlight transmittance, ensuring stable operation of the light source while maximiz- ing light utilization efficiency.

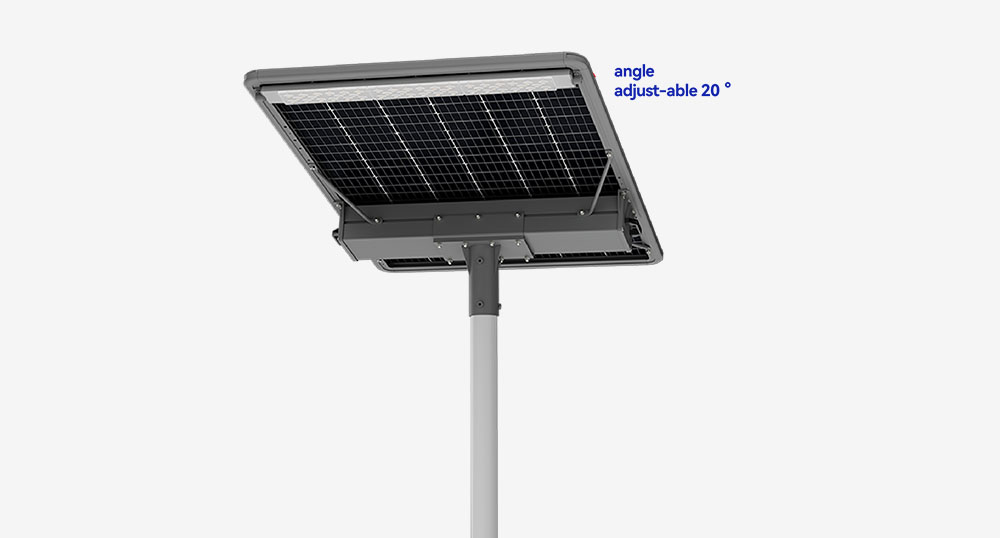

The light source module features a 20-degree adjustable beam elevation, enabling precise adaptation to diverse road lighting scenarios. Paired with high-quality, high-brightness LEDs, its scientifically optimized arrangement ensures uniform light distr-ibution, delivering clear and comfortable illumination for roads.


Lamp efficiency | 200Lm/W

Rapid Charging

Low Power Consumption

No Electricity Bills

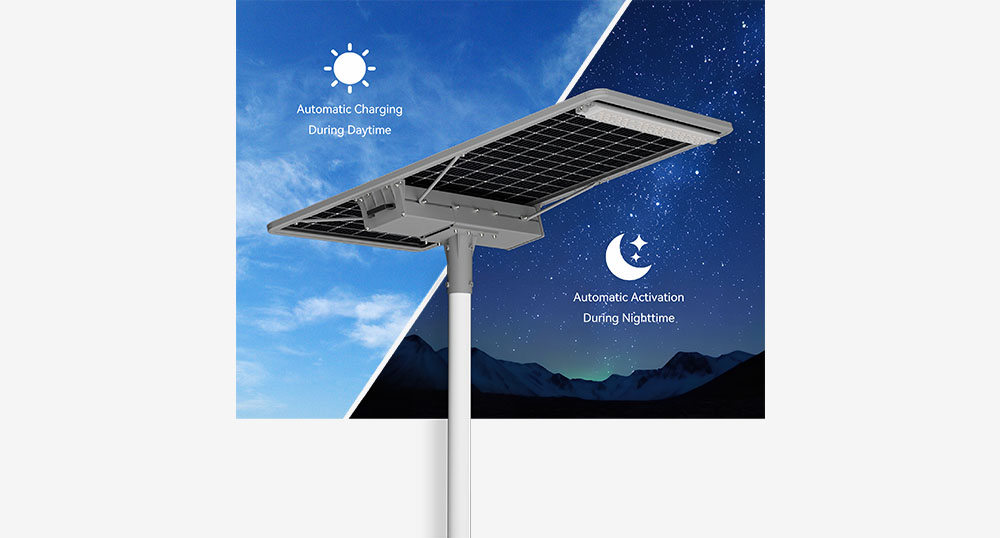

Continuous Charging Available in Sunny or Cloudy Weather.


365 Days of Uninterrupted Power Supply

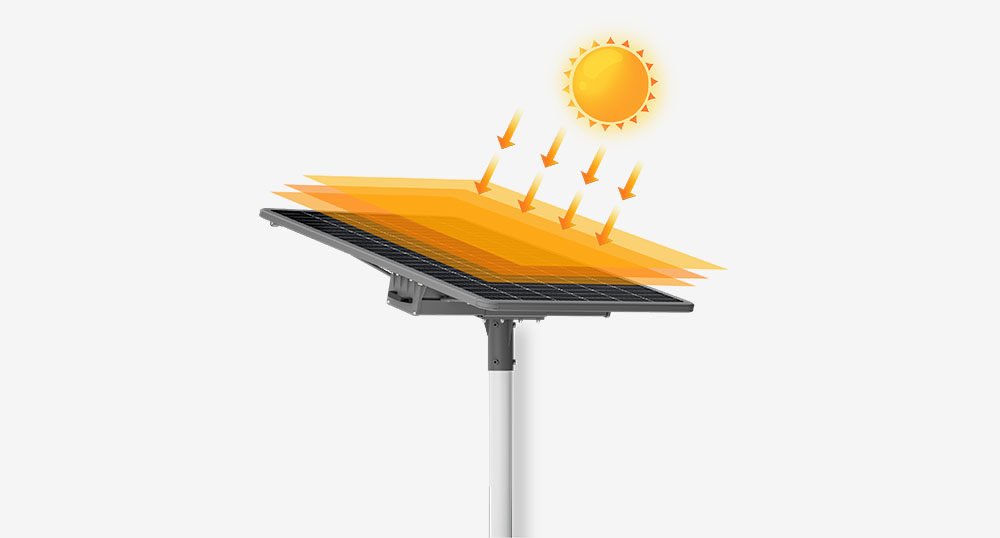

A-Grade Monocrystalline Silicon Photovoltaic Panels


It features excellent conversion efficiency, faster charging speed, and more efficient energy harvesting.

The dual-sided double-glass design enables efficient power generation on both surfaces, significantly boosting overall efficiency.


Small volume

Light weight

Low wind resistance

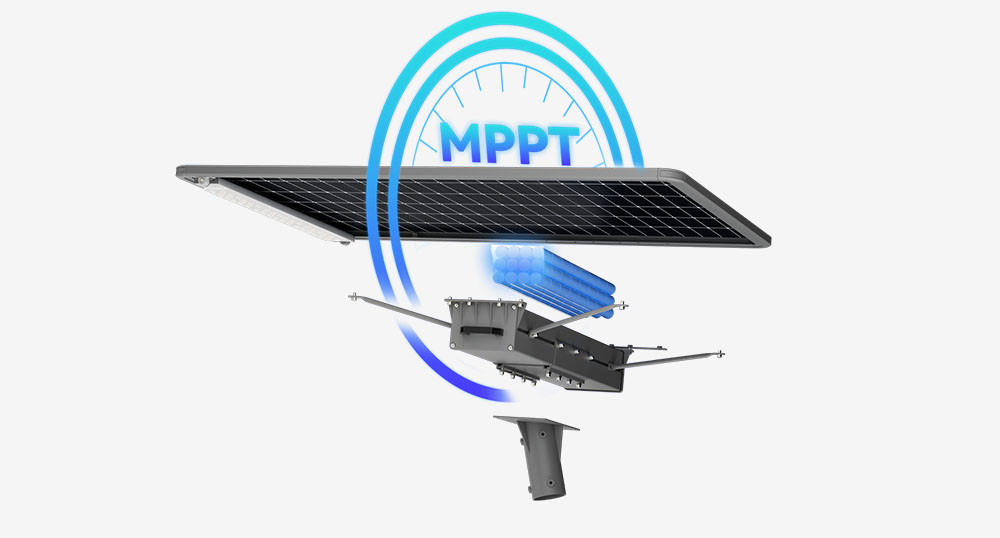

Built-in Microcontroller + MPPT Charging Management



Photovoltaic panels maintain continuous maximum power charging to maximize energy conversion efficiency.




Equipped With Automotive-Grade Battery

Cycle count> 3000


Maintains over 80% capacity with temperature-controlled design, engineered for extreme cold and high humidity in icy environments.

Features an  independent IP67-rated battery compartment with moisture and corrosion resistance, and separate packaging ensures stable transportation and  reduced costs.

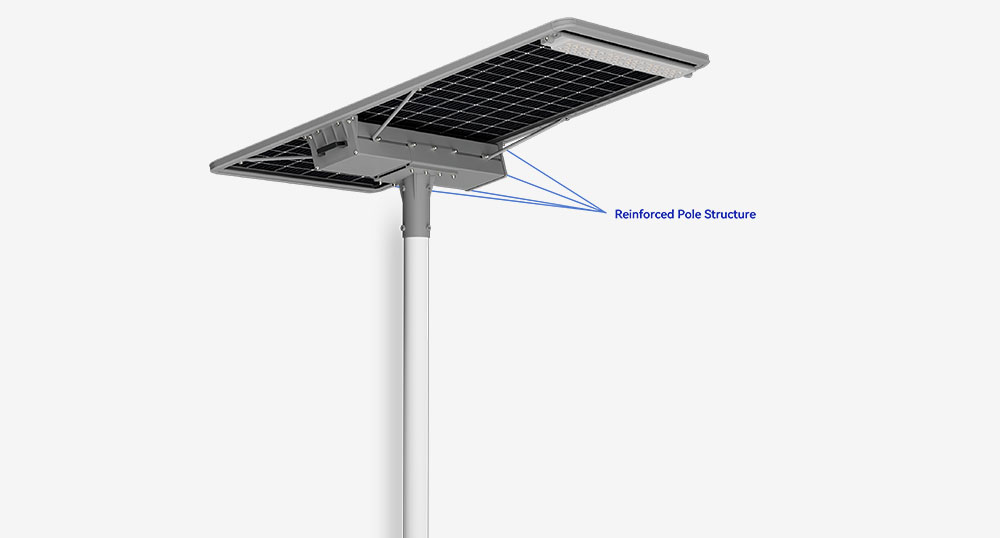

With an integrated design featuring specialized photovoltaic panel frames and reinforced rods, the lamp achieves significantly enhanced stability, capable of withstanding Category 14 typhoons without compromise.


The product demonstrates exceptional adaptability, meeting operational requireme-nts in extreme cold and high-humidity environments like the Ice Sea. With its IP67 high-protection rating, it provides effective dustproof, waterproof, and corrosion- resistant performance,ensuring stable operation under diverse complex conditions.

New LiFePO4 battery temperature management design


Positioned directly beneath the photovoltaic panel, the electrical box is well-shielded from harsh sun exposure, preventing overheating of the internal battery pack. Its dedicated battery thermal management system safeguards the battery even in extreme cold and intense heat

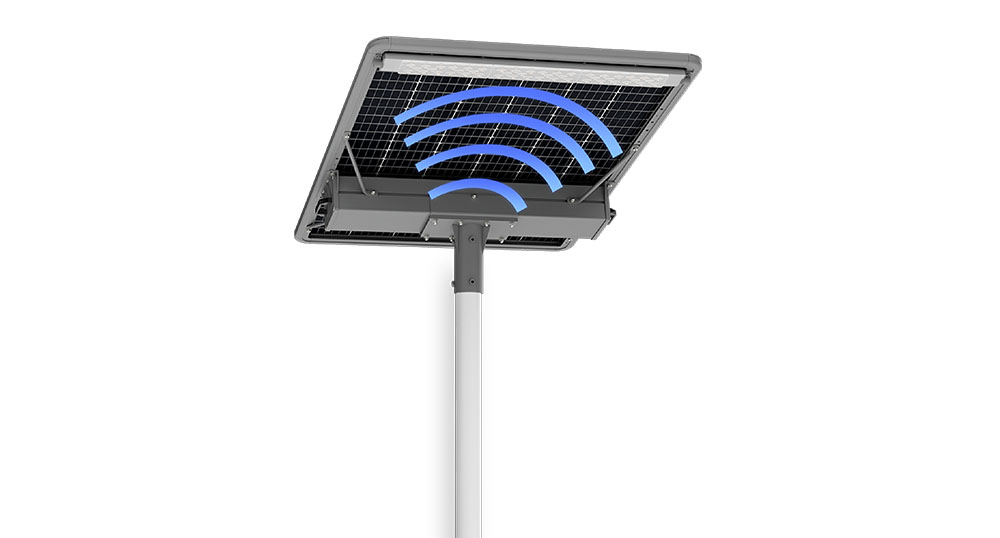

Intelligent Sensing



Remote control



Remote control with one-touch timer switch, offering multiple


Automatic time intervals: up to 12 hours

Manual mode: 3 hours, 5 hours, 8 hours



Remote control with one-click timer on/off,

supports multiple time periods


10 meters within induction range


Technology

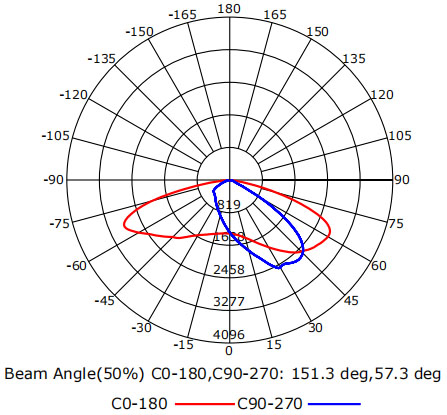

Light distribution curve


S07 Solar Street Light Technology 01.jpg

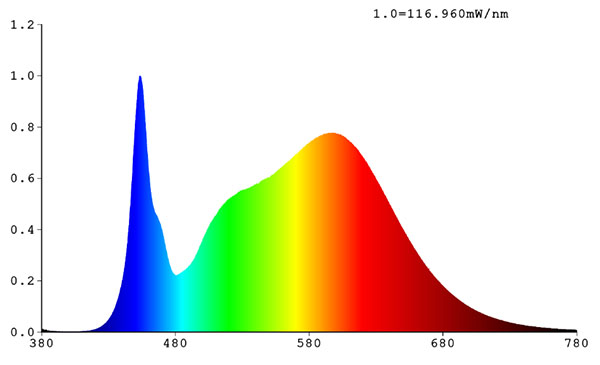

Energy distribution curve


S07 Solar Street Light Technology 02.jpg

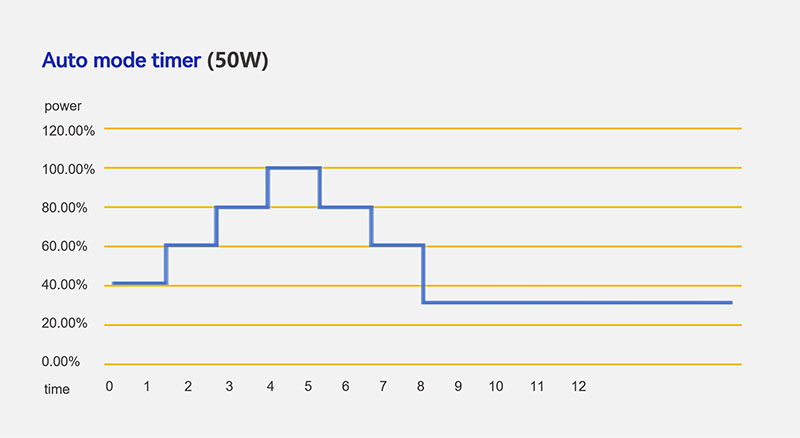

Optimize lighting mode

Automatic lighting mode is enabled by default. You can preset the timer mode according to your lighting needs at different times ofthe day to save energy and extend battery life.

S07 Solar Street Light Technology 03.jpg



Installation Recommendations

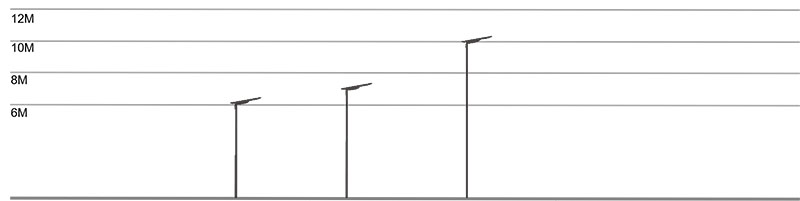

Applicable Heigh

S07 Solar Street Light Technology 04.jpg

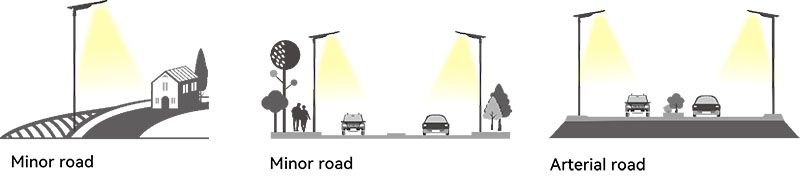

Applicable Place

S07 Solar Street Light Technology 05.jpg

Specifications

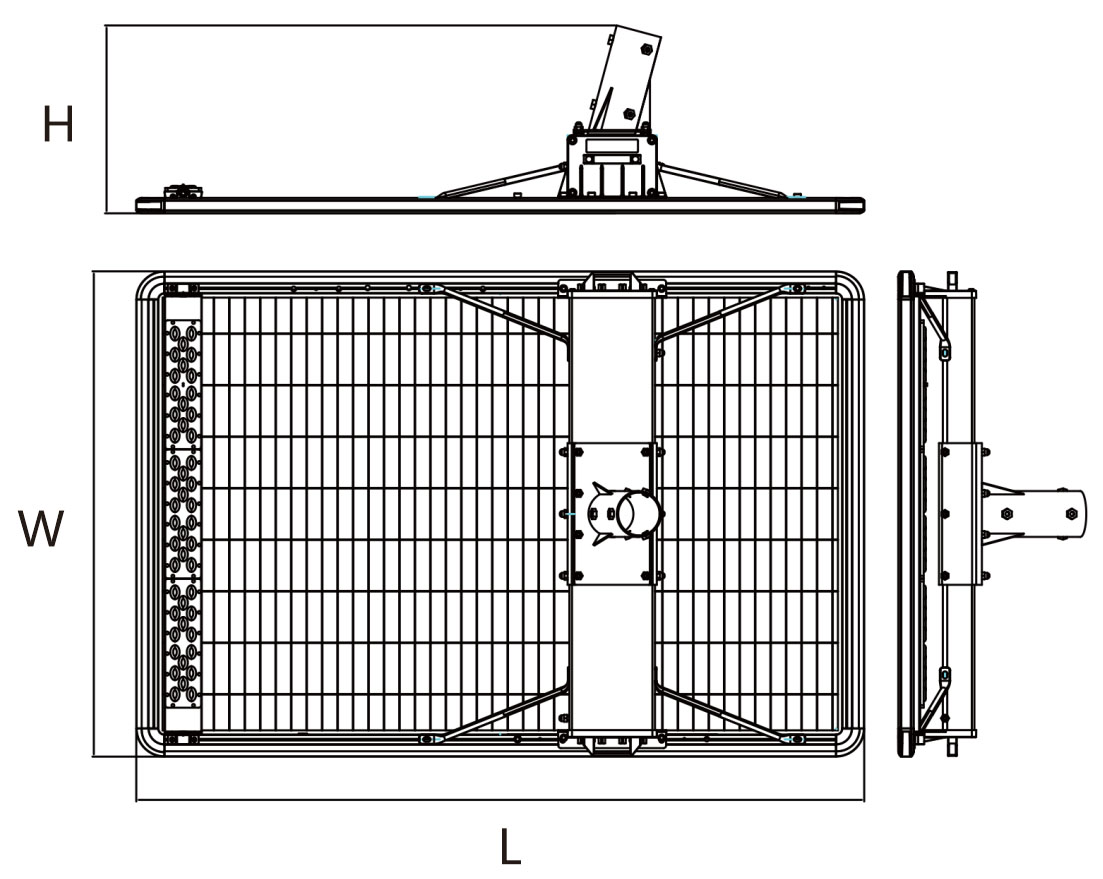

S07 Solar Street Light Specifications 01.jpg


Model

Size(mm)

L
W
H
S07 - 40942452365
S07 - 601182452365
S07 - 801012642365
S07 - 1001182642365
S07 - 1201412942365
S07 - 1501412942365


Product modelS07 - 40S07 - 60S07 - 80S07 - 100S07 - 120S07 - 150

Optoelectronic parameters

Power (W)40W60W80W100W120W150W
Lumen output8000lm12000lm16000lm20000lm24000lm30000lm

Beam angle

TYPE Ⅲ

CRI

>70 (80optional)
LED SpecificationLED 5050 30PCSLED 5050 30PCSLED 5050 60PCSLED 5050 60PCSLED 5050 90PCSLED 5050 90PCS

Battery parameters

Battery Spec

384WH/12.8V, 30A

576WH/12.8V, 45AH

576WH/12.8V, 45AH

768WH/25.6V, 30AH

1920WH/25.6V, 75AH2304WH/25.6V, 90AH

Cell parameter

LiFePO4

Certificate

MSDS and UN38.3 test report

Photovoltaic

panel parameters

Photovoltaic panel Spec

60W/18V80W/18V100W/18V120W/36V240W/36V240W/360V

Photovoltaic panel type

Monocrystalline silicon photovoltaic panel
Solar ControllerLight control+sensor control
Charge-discharge parameters

Charging time

6-8 hours8-10 hours

Full power

7-10 hours

15-20hours

Other

MaterialAI+PC

IP

IP66
